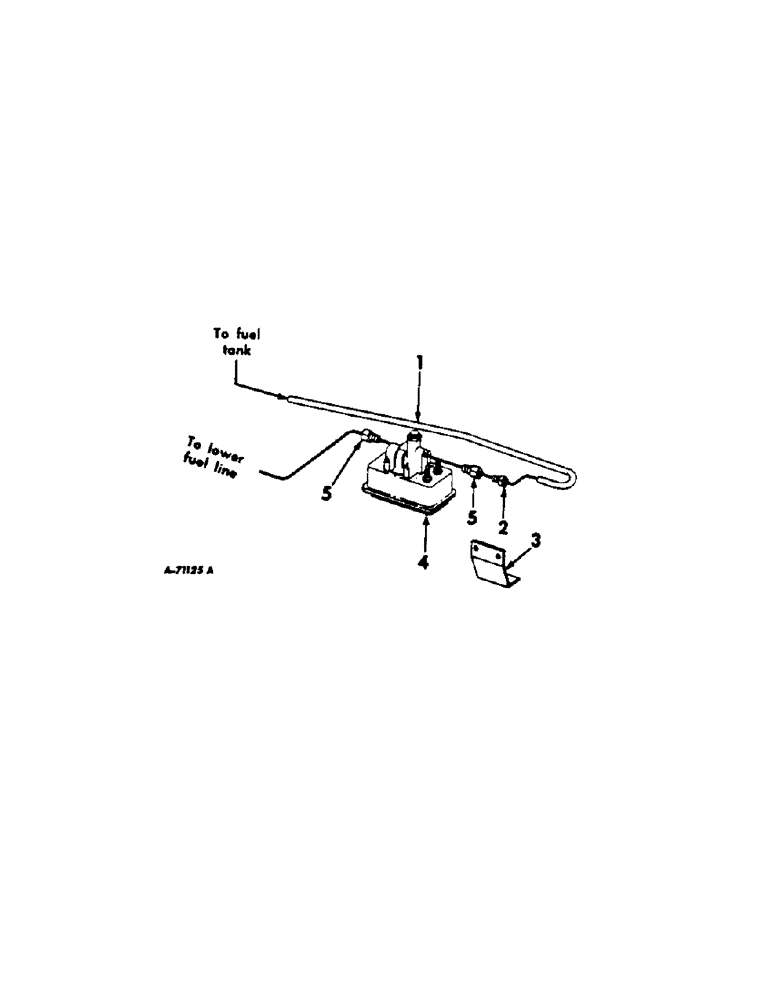

Запчасти Case IH C-263 (B-53) - FUEL PUMP, LINE AND SUPPORT, STEWART WARNER, SERIAL NO. 2195 & BELOW, 403 COMBINES

1

LINE, fuel pump to fuel tank, use 25-1/16 inches of 5/16 OD COP tubing from a 50 ft. roll marked 995062R1

1шт.

2

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting

1шт.

3

628393R1

BRACKET, fuel pump

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4 x 3/4 cap screw

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

615009R1

WASHER

71/64 x 3/4 x 16 ga washer

2шт.

4

631321R92

PUMP ASSY, fuel, order kit assy 935366R91 listed under fuel pump service kit, optional with pump, 631259R91

1шт.

5

40755D

HYD CONNECTOR,1/4" NPT x 1/2"-20

CONNECTOR, fuel pump

2шт.
