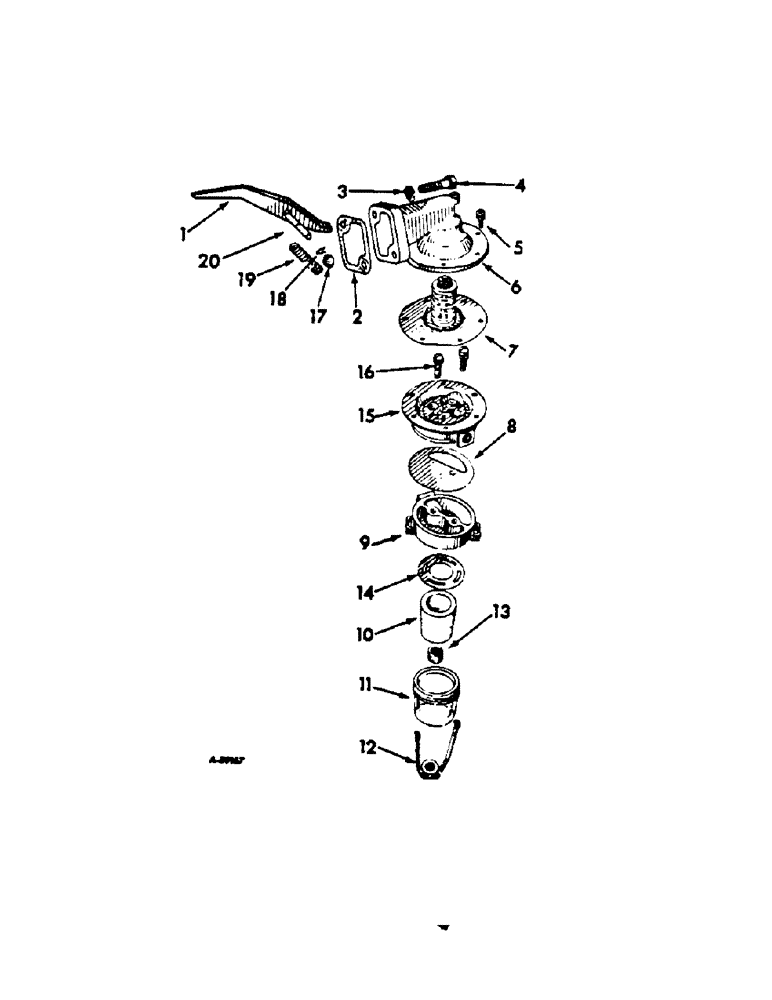

Запчасти Case IH C-263 (B-53[A]) - FUEL PUMP, GASOLINE

84838R94

PUMP

ASSEMBLY, fuel, less Ref. 3 & 4

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER, cam, not serviced separately order pump assy, 84383R94

1шт.

2

532496R1

GASKET

fuel pump opening cover

1шт.

3

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

5

NSS

NOT SOLD SEPARAT

SCREW W/WASHER, not serviced separately order pump assy, 84838R94

1шт.

6

NSS

NOT SOLD SEPARAT

BODY, fuel pump, not serviced separately order pump assy, 84838R94

1шт.

7

NSS

NOT SOLD SEPARAT

DIAPHRAGM

1шт.

8

NSS

NOT SOLD SEPARAT

DIAPHRAGM, air dome

1шт.

9

NSS

NOT SOLD SEPARAT

COVER, filter and valve housing, not serviced separately order pump assy, 84838R94

1шт.

10

967640R2

ELEMENT

paper

1шт.

11

109313R11

BOWL

glass, used with pump 84838R93

1шт.

11

NSS

NOT SOLD SEPARAT

BOWL, metal, use with pump 84838R94, not serviced separately, order pump assy, 84838R94

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINER W/SCREW, not serviced separately order pump assy, 84838R94

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING, filter, not serviced separately order pump assy, 84838R94

1шт.

14

GASKET, filter bowl

1шт.

15

109319

BUSHING

HOUSING W/VALVE, pump

1шт.

16

NSS

NOT SOLD SEPARAT

SCREW W/WASHER, valve housing to filter cover, not serviced separately order pump assy, 84838R94

1шт.

17

PLUG, cam lever shaft seal

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING, retaining, not serviced separately order pump assy, 84838R94

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING, cam lever return, not serviced separately order pump assy, 84838R94

1шт.

20

NSS

NOT SOLD SEPARAT

PIN, cam lever, not serviced separately order pump assy, 84838R94

1шт.

114881R92

PACKAGE, fuel pump overhaul

1шт.
