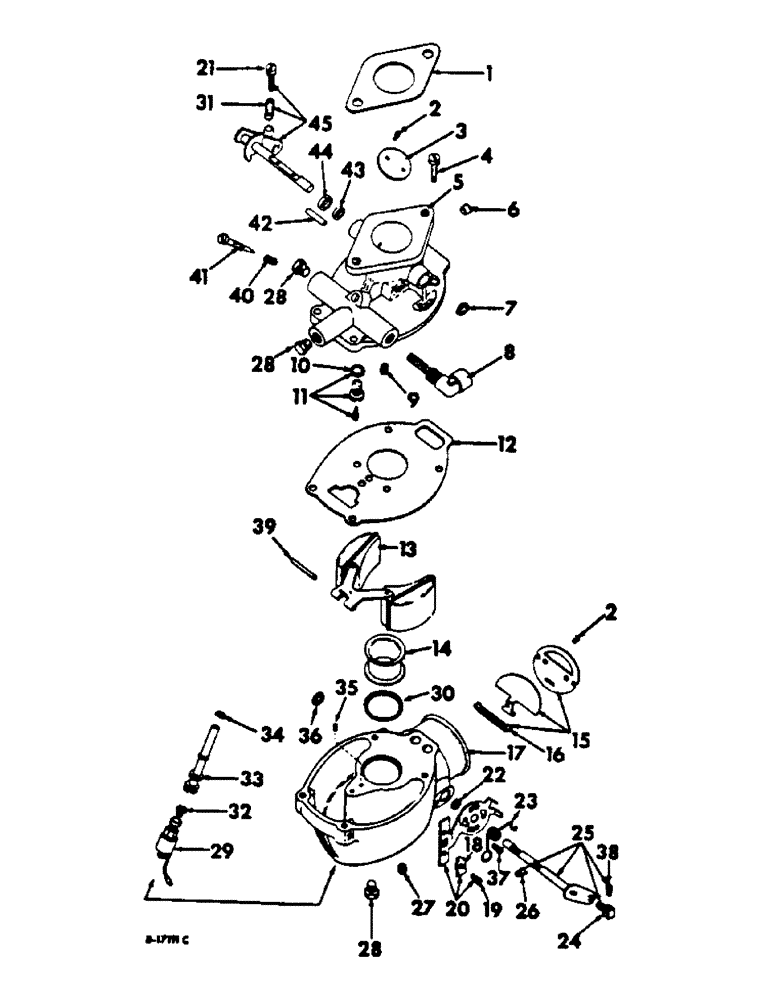

Запчасти Case IH C-263 (B-32) - CARBURETOR

535135R91

CARBURETOR ASSY, 615 combines

1шт.

396966R91

CARBURETOR ASSY, 656 tractors with gear drive, optional with 388297R94

1шт.

1

530681R1

GASKET

carburetor

1шт.

Not part of carburetor assembly.

1шт.

2

454579

PULLEY

choke and throttle plate

4шт.

3

381948R1

VALVE

PLATE, throttle

1шт.

4

19542R91

SCREW, throttle, Serial Range: body-bowl

4шт.

5

BODY ASSY, throttle, order carburetor assy

1шт.

6

373400R1

PLUG, idle drilling

1шт.

7

405920R1

PLUG

CUP, throttle shaft, used w/carburetor 535135R91

1шт.

7

381949R1

CUP

throttle shaft, used w/carburetor 396966R91

1шт.

8

69938D

ELBOW

STRAINER ASSY, gasoline, used w/carburetor 535135R91

1шт.

8

400423R1

ELBOW

STRAINER ASSY, gasoline, used w/carburetor 396966R91

1шт.

9

373378R1

JET

idling

1шт.

10

GASKET, float valve seat, order package 400429R92

1шт.

11

392096R91

VALVE

ASSY, float

1шт.

12

GASKET, throttle body to bowl, order package 400429R92

1шт.

13

381962R1

FLOAT

ASSY

1шт.

13

381962R1GV

FLOAT

Value, Float

1шт.

14

527453R1

VENTURI

29/32, used w/carburetor 535135R91

1шт.

14

400420R1

VENTURI, 15/16, used w/carburetor 396966R91

1шт.

15

381960R91

VALVE

PLATE ASSY, choke

1шт.

16

381961R1

SPRING

choke plate

1шт.

17

BOWL ASSY, fuel, order carburetor assy

1шт.

18

373373R1

CLIP

choke valve bracket

1шт.

19

20832R91

SCREW, w/spring lock washer 8-32 x 1/2 C-Z slt-hex-hd mach, used w/carburetor 535135R91

1шт.

19

453666

SCREW, w/spring lock washer 8-32 x 3/8 C-Z slt-fil-hd mach, used w/carburetor 396966R91

1шт.

20

373372R91

BRACKET

ASSY, choke valve

1шт.

21

131979

SCREW,Sl Fil Hd, #8 - 32 x 3/4"

throttle stop

1шт.

22

SEAL, choke shaft, order package 400429R92

1шт.

23

400424R1

SPRING, air shutter return, used w/carburetor 535135R91

1шт.

23

381961R1

SPRING

air shutter return, used w/carburetor 396966R91

1шт.

24

373405R1

PIVOT

SWIVEL, choke shaft

1шт.

25

535147R91

SHAFT ASSY, choke, used w/carburetor 535135R91

1шт.

25

403355R91

LEVER

SHAFT ASSY, choke, used w/carburetor 396966R91

1шт.

26

373406R1

SPLIT PIN

SPRING, swivel retainter

1шт.

27

373387R1

FILTER

STRAINER, bowl

1шт.

28

FOR444613

PLUG

drain

1шт.

29

71358C92

SOLENOID

fuel shut-off solenoid valve

1шт.

Not part of carburetor assembly.

1шт.

107609C1

WASHER

GASKET, fuel shut-off

1шт.

30

400422R1

RETAINER

venturi

1шт.

31

69953D

SPRING

throttle stop screw

1шт.

32

404156R1

JET

main black, note

1шт.

33

535149R1

NOZZLE, used w/carburetor 535135R91

1шт.

33

400421R1

NOZZLE, used w/carburetor 396966R91

1шт.

34

GASKET, main nozzle, order package 400429R93

1шт.

35

373383R1

BUSHING

VENT, well, used w/carburetor 535135R91

1шт.

35

400416R1

VENT, well, used w/carburetor 396966R91

1шт.

36

373403R1

PLUG

choke shaft cup

1шт.

37

453666

SCREW, choke bracket

1шт.

38

455956

SCREW, choke swivel 8-32 x 5/16 C-Z slt-hex-hd mach

1шт.

39

381963R1

AXLE

float

1шт.

40

69954D

SPRING

idle adjusting screw

1шт.

41

69923D

SCREW

idle adjusting

1шт.

42

533349R1

PIN, throttle stop

1шт.

43

SEAL, throttle shaft, order package 400429R93

1шт.

44

SEAL, throttle shaft, order package 400429R92

1шт.

45

529723R91

SHAFT ASSY.

SHAFT ASSY, throttle, used w/carburetor 535135R91

1шт.

45

400418R91

SHAFT

ASSY, throttle, used w/carburetor 396966R91

1шт.

370535R1

CLIP

carburetor solenoid wire

1шт.

535148R91

KIT

PACKAGE, carburetor overhaul, used w/carburetor 535135R91

1шт.

400404R91

KIT

PACKAGE, carburetor overhaul, used w/carburetor 396966R91

1шт.

400429R93

PACKAGE

carburetor gasket

1шт.
