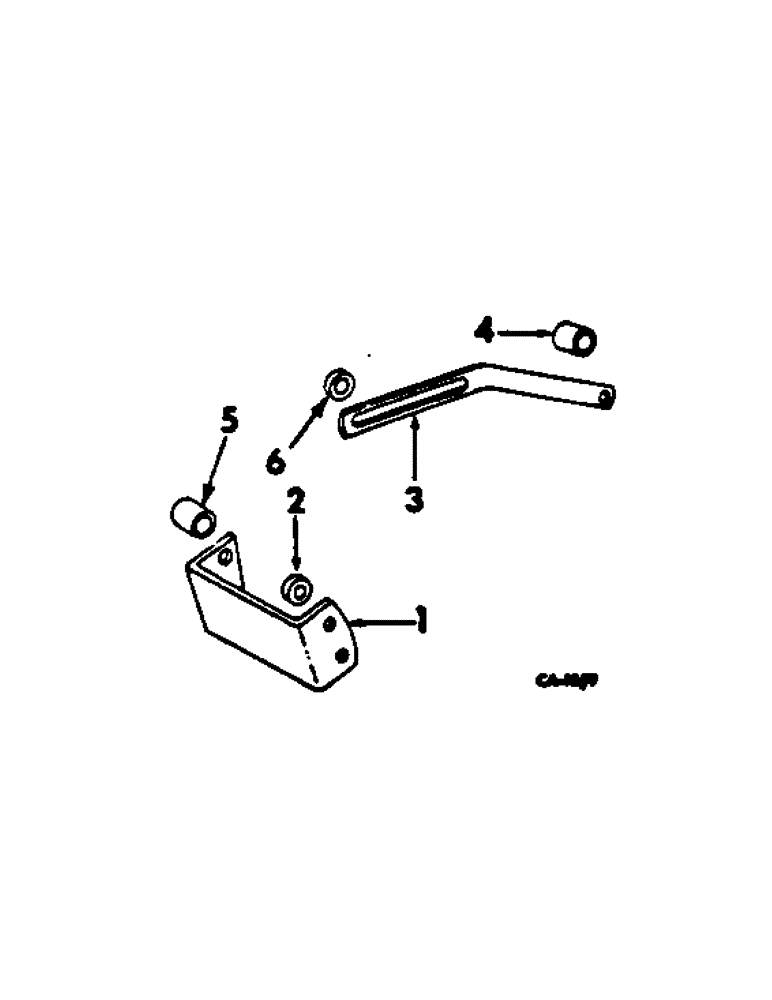

Запчасти Case IH C-263 (B-30) - ALTERNATOR GENERATOR MOUNTING, 403 COMBINES WITH SERIAL NO. 9957 AND ABOVE

1

384991R1

SUPPORT

BRACKET, alternator generator mounting

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8-16 x 4-1/4 C-Z hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103382

WASHER, 3/8 C-Z med lock

1шт.

2

384992R1

SPACER

alternator generator mounting

1шт.

3

371107R2

SUPPORT

BRACE, generator, LP gas, gasoline w/serial no. 49992 and above

1шт.

3

384994R2

BRACE

altenrator generator, gasoline w/serial no. 49991 and below

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap, used with brace 384994R2

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Gasoline, used with brace 384994R2 3/8"

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap, used with brace 371107R2

1шт.

259207R1

WASHER

flat

1шт.

4

371108R1

SPACER,3/8" Pipe x .844"

generator brace, LP gas, gasoline w/serial no. 49992 and above

1шт.

5

384993R1

SPACER

alternator generator mounting

1шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8-16 x 4-1/4 znd hex-hd cap

1шт.

6

280185R1

SPACER

alternator generator mounting

1шт.
