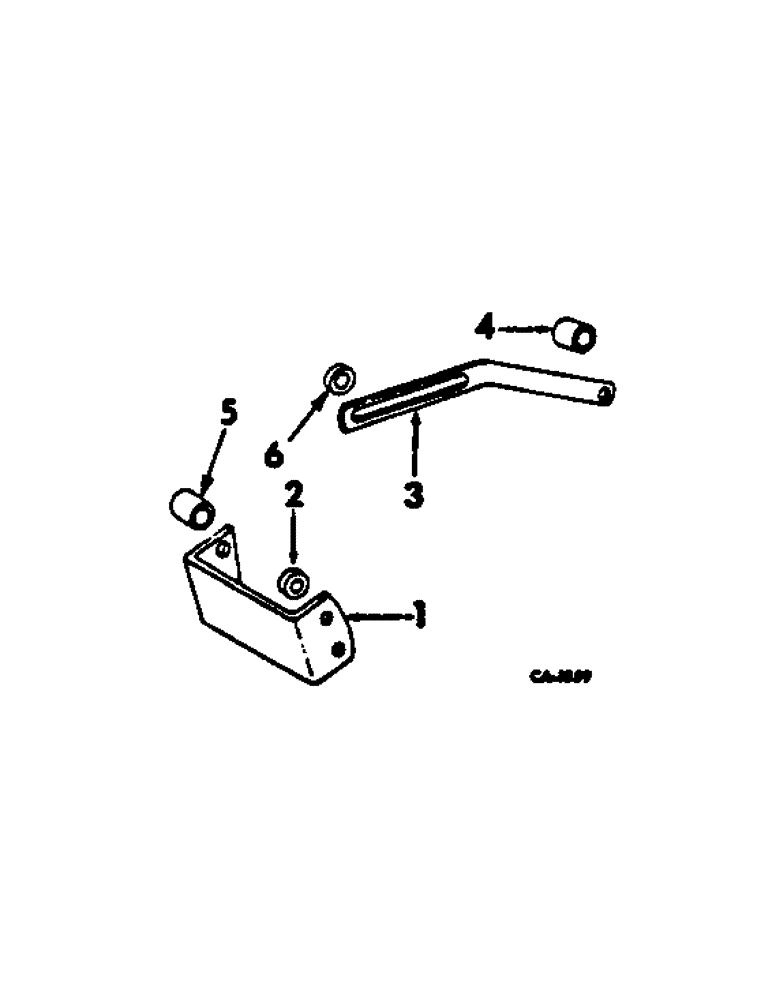

Запчасти Case IH C-263 (B-30[A]) - ALTERNATOR GENERATOR MOUNTING, 615 COMBINES

1

384991R1

SUPPORT

BRACKET, alternator generator mounting

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

384992R1

SPACER

alternator generator mounting

1шт.

3

371107R2

SUPPORT

BRACE, alternator generator, combines w/belt drive and 615 combines with serial no. 3095 and below with hydrostatic transmission

1шт.

3

384997R1

BRACE

alternator generator, 615 combines with serial no. 3096 and above with hydrostatic transmission

1шт.

18080

BUCKET

SCREW, 5/16-18 x 1-1/8 znd hex-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga znd

1шт.

583956R1

BOLT, 7/16-14 x 2 CDP hex-hd mach

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

271501

SOCKET

NUT, 7/16-14 znd hex

1шт.

4

371108R1

SPACER,3/8" Pipe x .844"

generator brace

1шт.

5

384993R1

SPACER

alternator generator mounting

1шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8-16 x 4-1/4 znd hex-hd cap

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex lock

1шт.

6

(Not used in this application)

1шт.
