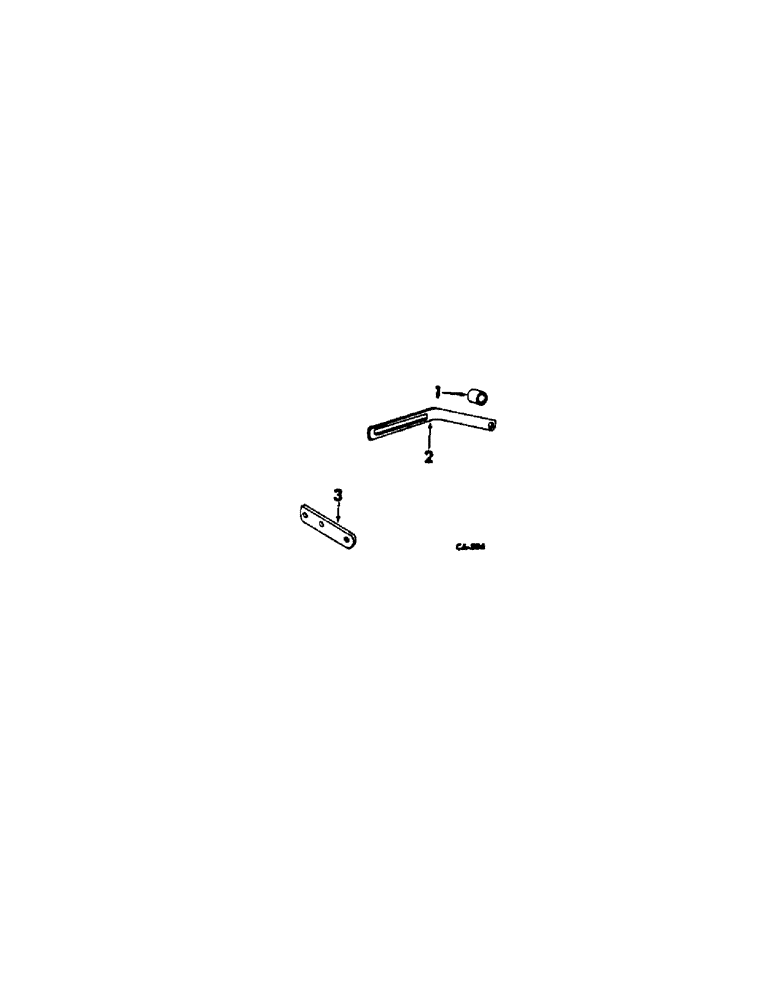

Запчасти Case IH C-263 (B-29[A]) - GENERATOR MOUNTING, 403 COMBINES W/SERIAL NO. 9956 & BELOW

1

371108R1

SPACER,3/8" Pipe x .844"

generator brace, LP gas

1шт.

2

371107R2

SUPPORT

BRACE, generator

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 16 x 3-1/2 hex-hd cap, LP gas

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap, gasoline

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Gasoline 3/8"

1шт.

3

367661R1

BRACKET, generator

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.
