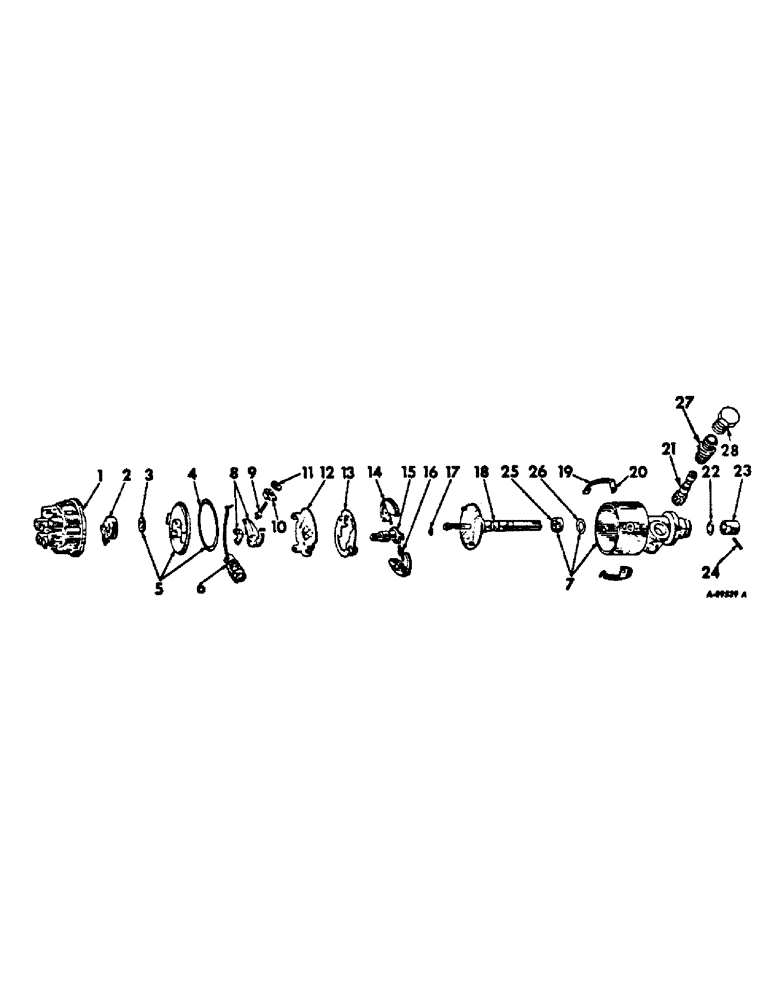

Запчасти Case IH C-263 (B-25) - DISTRIBUTOR

107310C91

DISTRIBUTOR

ASSY, AN symbol, 706 LP gas tractors with serial no. 62129 and above 706 gasoline tractors with serial no. 52340 and above, and 50 forage harvesters, for service replace on 656 LP gas engine tractors furnish 399597R91 (replaces 388592R91)

1шт.

See 301 Engine Book

1шт.

380892R92

DISTRIBUTOR

ASSY, AJ symbol, on orders for 380892R92 furnish 68830C91, 403 gasoline combines and 615 combines

1шт.

372986R91

DISTRIBUTOR

ASSY, AD symbol, 706 LP gas tractors with serial no. 51854 and below and 706 gasoline tractors with serial no. 52339 and 403 LP gas combines order distributor 68830C91

1шт.

388535R91

DISTRIBUTOR

ASSY, AP symbol, 706 LP gas tractors with serial no. 51855 to 62128, 403 LP gas combines order distributor 68830C91

1шт.

401170R91

DISTRIBUTOR

ASSY, BB symbol, 403 Lp gas combines order distributor 68830C91

1шт.

393396R91

DISTRIBUTOR ASSY, AS symbol, 656 gasoline engine tractors with gear drive, for service replacement order 399596R91

1шт.

399596R91

DISTRIBUTOR ASSY, AY symbol, 656 gasoline engine tractors with gear drive

1шт.

399597R91

DISTRIBUTOR

ASSY, AZ symbol, 656 gasoline engine tractors with hydrostatic transmission and 656 LP gas engine tractors

1шт.

1

368062R91

CAP

distributor

1шт.

1

368062R91GV

CAP

value, distributor cap

1шт.

2

353896R91

ROTOR ASSY.

ROTOR, distributor

1шт.

3

353901R2

FELT SEAL

breaker cover felt

1шт.

4

384830R1

GASKET

breaker cover

1шт.

5

384831R91

COVER

ASSY, breaker

1шт.

5

384831R91GV

COVER

Value, Breaker Cover

1шт.

6

353903R92

CONDENSER

ASSY

1шт.

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

NO. 8 x 3/16 C-Z slt-fil-hd mach screw

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

7

368051R11

HOUSING ASSY, distributor except 380892R92 and 401170R91

1шт.

7

401107R11

HOUSING ASSY, distributor, used w/distributor 380892R92 and 401170R91

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

1/8 C-Z slt-hdls pipe plug

1шт.

8

372951R91

SCREW,POINTED

POINT SET, distributor

1шт.

8

372951R91GV

SET

Value, Pointed Screw

1шт.

443690

SCREW, 8-32 x 3/16 CD or zn-pltd slt-fil-hd mach

1шт.

21394D

WASHER

STATIONARY POINT AND TERMINAL WASHER

3шт.

9

353907R1

STUD

SCREW, terminal

1шт.

120622

NUT,#8-32

3шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

3шт.

10

353906R1

PLUG

INSULATOR, spring anchor terminal

1шт.

11

251538R1

WASHER

terminal insulating

1шт.

12

372868R11

RETAINER

PLATE ASSY, breaker

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

no. 8 x 3/8 znp r/hds mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

13

353920R1

GUARD

governor weight

1шт.

131954

SCREW,Sl Fil Hd, #8 - 32 x 1/4"

no. 8 x 1/4 znp fil/hds mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

14

353917R91

ARM

weight

2шт.

15

356192R91

CAM

ASSY

1шт.

355460R1

FELT SEAL

FELT, cam oil hole

1шт.

16

362725R91

SPRING

PACKAGE, governor spring, used w/distributor 388592R91

1шт.

16

389004R91

PACKAGE, governor spring, used w/distributor 388535R91 and 401170R91

1шт.

16

380895R91

PACKAGE, governor spring, used w/distributor 380892R92

1шт.

16

368102R91

PACKAGE

governor spring, used w/distributor 372986R91

1шт.

16

393400R91

PACKAGE, governor spring, used w/distributor 393396R91 and 399596R91

1шт.

16

362725R91

SPRING

PACKAGE, governor spring, used w/distributor 399597R91

1шт.

17

352293R1

SHIM

SPACER, weight arm

4шт.

18

383178R91

SHAFT ASSY, distributor, used w/distributor 388592R91

1шт.

18

380893R92

SHAFT ASSY, distributor, used w/distributor 380892R92

1шт.

18

371580R91

SHAFT ASSY, distributor, used w/distributor 372986R91 and 388535R91

1шт.

18

401172R1

SHAFT ASSY, distributor, used w/distributor 401170R91

1шт.

18

393397R91

SHAFT

ASSY, distributor, used w/distributor 393396R91 and 399596R91

1шт.

18

388593R91

SHAFT

ASSY, distributor, used w/distributor 399597R91

1шт.

19

368096R1

SPRING

distributor cap

2шт.

20

353895R1

SUPPORT

distributor cap spring

2шт.

132756

SCREW, no. 8 x 7/16 znp r/hds mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

21

368245R12

PINION

GEAR ASSY, tachometer drive, used w/distributor 399596R91 and 399597R91

1шт.

22

368054R1

THRUST WASHER

distributor thrust lower

1шт.

23

368053R1

BUSHING

COLLAR, distributor shaft

1шт.

24

354552R1

HARDWARE

PIN, distributor shaft collar

1шт.

25

368057R91

OIL SEAL

OIL SEAL, distributor shaft

1шт.

26

368055R1

WASHER, distributor thrust upper

1шт.

27

368246R1

CONNECTION

HOUSING, tachometer connection, used w/distributor 399596R91 and 399597R91

1шт.

28

369013R1

PLUG

distributor housing, used w/all distibutors except 399596R91 and 399597R91

1шт.

407062R91

BREAKER

SET, points and condenser, consists of, (1) condenser 353903R92, (1) points set 372951R91

1шт.
