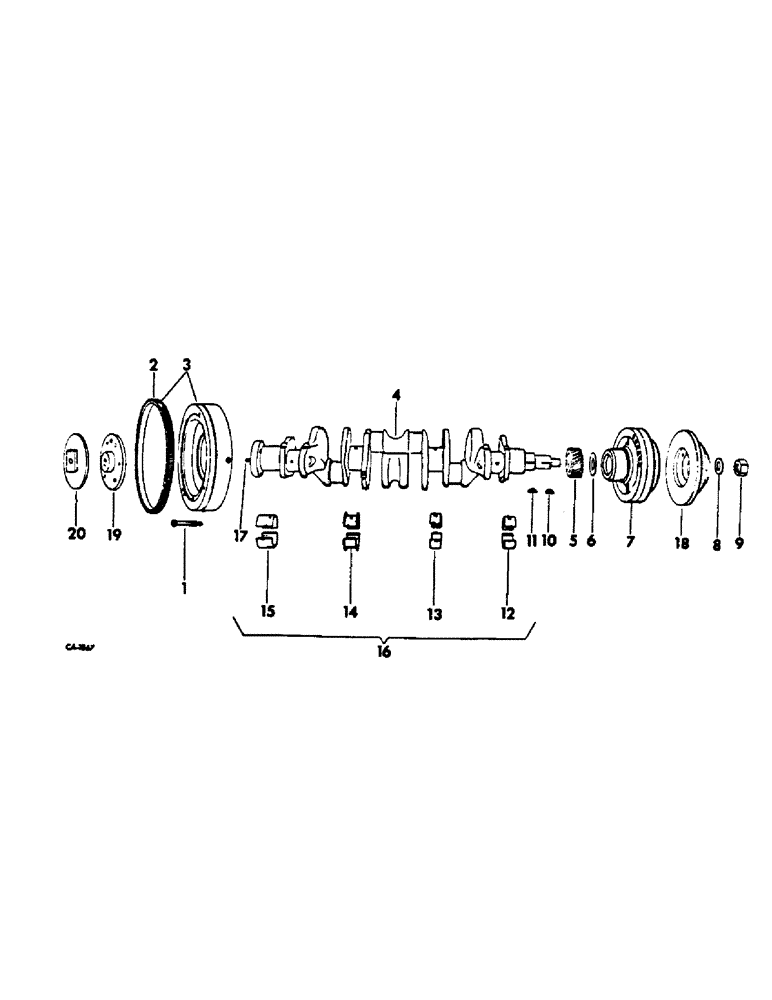

Запчасти Case IH C-263 (B-20) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

19466R1

BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 8

flywheel to crankshaft, used w/flywheel 372567R91, 377945R11 and 378614R31

6шт.

1

70426R1

BOLT, flywheel to crankshaft, used w/flywheel 535984R11

6шт.

1

332136R1

BOLT (SPREADER),7/16" - 20 x 2 1/4"

BOLT, flywheel to crankshaft, used w/flywheel 537135R91

6шт.

1

18623R1

BOLT, flywheel to crankshaft, used w/flywheel 396420R91 (7/16 x 1 3/4 Fine (20) Locking)

1шт.

1

323979R1

BOLT (SPREADER),Hex, 7/16" - 20 x 1.75"

BOLT, flywheel to crankshaft, used w/flywheel 398062R91

6шт.

2

95691H

GEAR

flywheel ring, 143 teeth, used w/flywheel 535984R11 and 377945R11

1шт.

2

372568R1

GEAR

flywheel ring, 159 teeth, used w/flywheel 372567R91

1шт.

2

396421R1

GEAR, RING

GEAR, flywheel ring, 133 teeth, used w/flywheel 537135R91 and 396420R91

1шт.

2

381127R1

PINION

GEAR, flywheel ring, 165 teeth, used w/flywheel 378614R31

1шт.

2

398063R1

GEAR, flywheel ring, 158 teeth, used w/flywheel 398062R91

1шт.

3

377945R11

FLYWHEEL ASSEMBLY, 403 combines

1шт.

3

535984R11

FLYWHEEL ASSEMBLY, 615 combines

1шт.

3

372567R91

FLYWHEEL ASSEMBLY, 50 forage harvesters

1шт.

3

378614R31

FLYWHEEL ASSEMBLY, farmall and international 706 tractors

1шт.

3

396420R91

FLYWHEEL ASSEMBLY, 656 tractors with gear drive

1шт.

3

537135R91

PACKAGE, flywheel assy w/mounting bolts, 656 tractors with hydrostatic transmission

1шт.

4

382356R91

CRANKSHAFT

ASSY, std, replaces 367269R91, 403 combines w/serial no. 2225 and below, furnish intermediate rear main bearing assy 367282R91

1шт.

Consists of, (6) bearing assy 367408R11, (1) bearing assy 367285R91, (1) bearing assy 332267R91, (1) bearing assy 367279R91, (1) bearing assy 367276R91, (1) crankshaft (NSS), (1) pin 82970R1

1шт.

5

367272R1

PINION

GEAR, crankshaft

1шт.

6

71763R2

DEFLECTOR

SLINGER, crankshaft oil

1шт.

7

338952R91

PULLEY

DAMPER AND PULLEY ASSY, fan drive, 403 combines, 706 tractors and 656 tractors with hydrostatic transmission

1шт.

7

338949R91

DAMPER

AND PULLY ASSY, fan drive, 615 combines w/engine serial no. 99978 and below w/hydrostatic transmission and 50 forage harvesters

1шт.

7

534273R1

DAMPER AND PULLEY ASSY, fan drive, 615 combines w/engine serial no. 99979 and above w/hydrostatic transmission

1шт.

7

347826R91

DAMPER

AND PULLEY ASSY, fan drive, 615 combines w/belt drive

1шт.

7

371573R2

PULLEY

fan drive, 656 LP gas engine tractors with gear drive

1шт.

7

371574R2

PULLEY

fan drive, 656 gasoline engine tractors with gear drive

1шт.

8

70109R1

WASHER

starting crank nut

1шт.

9

219755

BACK-UP RING

1-1/4 hex jam crankshaft

1шт.

10

117984

BUCKET TOOTH KEY

KEY, 5/16 x 1-3/8 Woodruff no. 23, damper and pulley assy

1шт.

11

103462

KEY

3/16 x 1 Woodruff no. 13 crankshaft gear

1шт.

12

367276R91

BEARING LINER

BEARING ASSY, crankshaft front 2 halves, std

1шт.

12

367300R91

CRANKSHAFT BEARING

BEARING ASSY, crankshaft front 2 halves, .002 U/S

1шт.

12

376670R91

BEARING ASSY

BEARING ASSY, crankshaft front 2 halves, .010 U/S

1шт.

12

376683R91

BEARING ASSY

BEARING ASSY, crankshaft front 2 halves, .020 U/S

1шт.

12

367288R91

BEARING ASSY

ASSY, crankshaft front 2 halves, .030 U/S

1шт.

13

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

ASSY, crankshaft intermediate 2 halves, std

1шт.

13

367303R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate 2 halves, .002 U/S

1шт.

13

376673R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate front 2 halves, .010 U/S

1шт.

13

376686R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate 2 halves, .020 U/S

1шт.

13

367291R91

BEARING

ASSY, crankshaft intermediate front 2 halves, .030 U/S

1шт.

14

367282R91

BEARING ASSY,90.4mm ID x 95.25mm OD x 38.35mm W

ASSY, crankshaft intermediate rear 2 halves, std, 403 combines w/serial no. 2225 and below

1шт.

14

332267R91

BEARING SET

BEARING ASSY, crankshaft intermediate rear, 2 halves, std, all machines and 403 combines w/serial no. 2226 and above

1шт.

14

367306R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate rear, 2 halves, .002 U/S, 403 combines w/serial no. 2225 and below

1шт.

14

332273R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves,.002 U/S, all machines and 403 combines w/serial no. 2226 and below

1шт.

14

376676R91

JOURNAL

BEARING ASSY, crankshaft intermediate rear, 2 halves, .010 U/S, 403 combines w/serial no. 2225 and below

1шт.

14

332276R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .010 U/S, all machines and 403 combines w/serial no. 2226 and above

1шт.

14

376689R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate rear, 2 halves, .020 U/S, 403 combines w/serial no. 2225 and below

1шт.

14

332279R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .020 U/S, all machines and 403 combines w/serial no. 2226 and above

1шт.

14

367294R91

BEARING ASSY

ASSY, crankshaft intermediate rear, 2 halves, .030 U/S, 403 combines w/serial no. 2225 and below

1шт.

14

332270R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .030 U/S, all machies and 403 combines w/serial no. 2226 and above

1шт.

15

367285R91

BEARING

ASSY, crankshaft rear, 2 halves std

1шт.

15

367309R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .002 U/S

1шт.

15

376679R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .010 U/S

1шт.

15

376692R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .020 U/S

1шт.

15

367297R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .030 U/S, not furnished in sets, furnish individal bearing assy

1шт.

16

NLS

NO LONGER SERVICED

CRANKSHAFT BEARING SETS, are no longer avaliable furnish individual bearing assemblies

1шт.

17

82970R1

STUD

PIN, flywheel to crankshaft dowel

1шт.

18

533839R1

PULLEY, water pump, 615 combines with serial no. 3095 and below with hydrostatic transmission

1шт.

19

377944R1

FLANGE

drive shaft, 403 combines w/gear drive and w/out spark arrester and 615 combines

1шт.

20

389667R11

HUB

FLANGE, drive shaft, 403 combines w/hydrostatic transmission

1шт.
