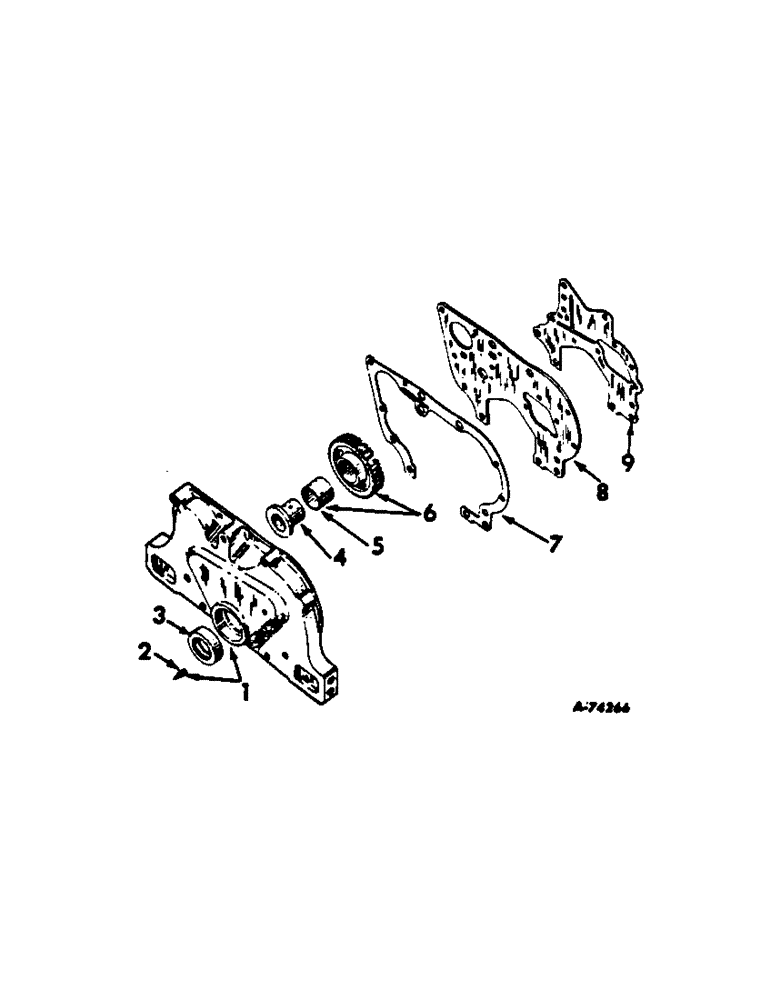

Запчасти Case IH C-263 (B-18[A]) - CRANKCASE FRONT COVER AND IDLER GEAR, 656 AND 706 TRACTORS

1

384488R31

COVER

ASSEMBLY, crankcase front

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

5шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

2

367572R1

INDICATOR

POINTER, timing

1шт.

3

391976R91

OIL SEAL

crankshaft oil, replaces 317549R93 (replaces 391976R93)

1шт.

4

367580R11

HUB

SHAFT ASSEMBLY, idler gear, machines w/engine serial no. 83736 and below

1шт.

NLS

NO LONGER SERVICED

3/16 x 4/16 dowel

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

530973R1

HOUSING

HUB, idler gear, replaces 398036R1, machines w/engine serial no. 83737 and above

1шт.

179887

CABLE

1шт.

615090R1

WASHER

17/32 x 2 x 11 ga

1шт.

5

367578R1

BUSHING

idler gear, machines w/engine serial no. 83736 and below

1шт.

5

398034R1

BUSHING

idler gear, machines w/engine serial no. 83737 and above

1шт.

6

367577R11

PINION

GEAR ASSY, idler, machines w/engine serial no. 83736 and below

1шт.

6

398032R1

PINION

GEAR ASSY, idler, machines w/engine serial no. 83737 and above

1шт.

7

367574R1

GASKET

crankcase front cover

1шт.

8

367524R2

PLATE, crankcase front

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

9

398024R1

GASKET

crankcase front plate, will work for 367570R1

1шт.
