(B-11) - ADJUSTER ASSEMBLY, 615 COMBINES W/SERIAL NO. 3095 & BELOW W/HYDROSTATIC TRANSMISSION

Запчасти Case IH C-263 (B-11) - ADJUSTER ASSEMBLY, 615 COMBINES W/SERIAL NO. 3095 & BELOW W/HYDROSTATIC TRANSMISSION

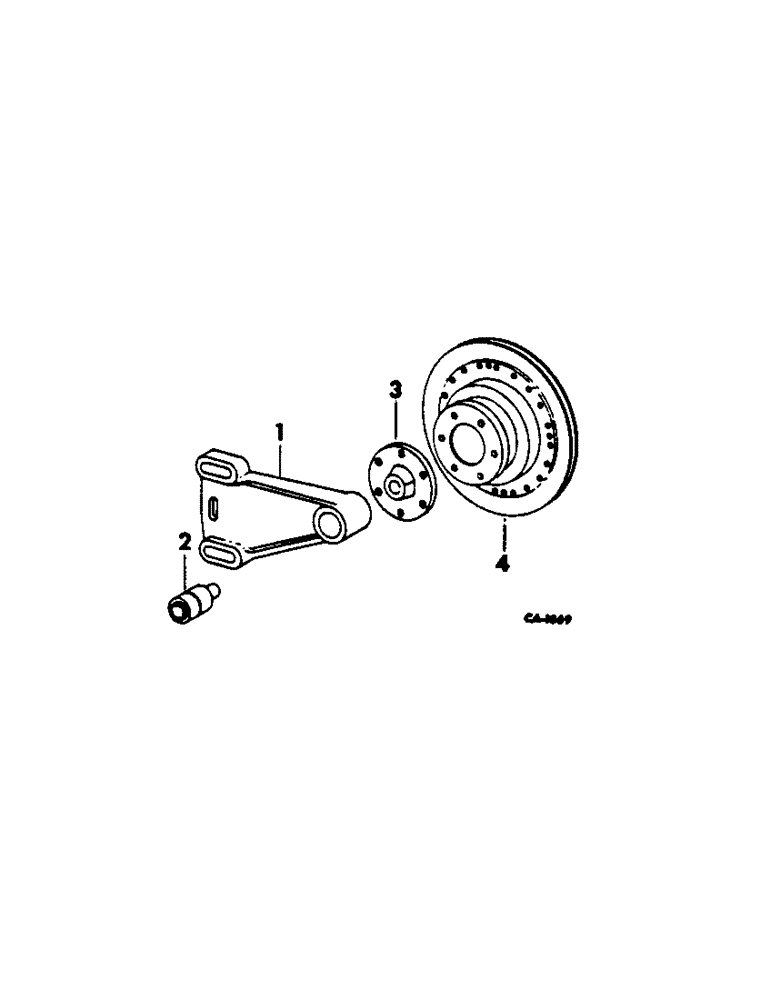

Схема запчастей Case IH C-263 - (B-11) - ADJUSTER ASSEMBLY, 615 COMBINES W/SERIAL NO. 3095 & BELOW W/HYDROSTATIC TRANSMISSION
2
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

533837R91

ADJUSTER

ASSY, fan pulley screw, 7/16-14 x 2-1/4 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

2

533840R91

SHAFT

AND BEARING ASSEMBLY

1шт.

3

607328C11

HUB

fan pulley

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

4

671807C1

PULLEY

fan and water pump

1шт.
