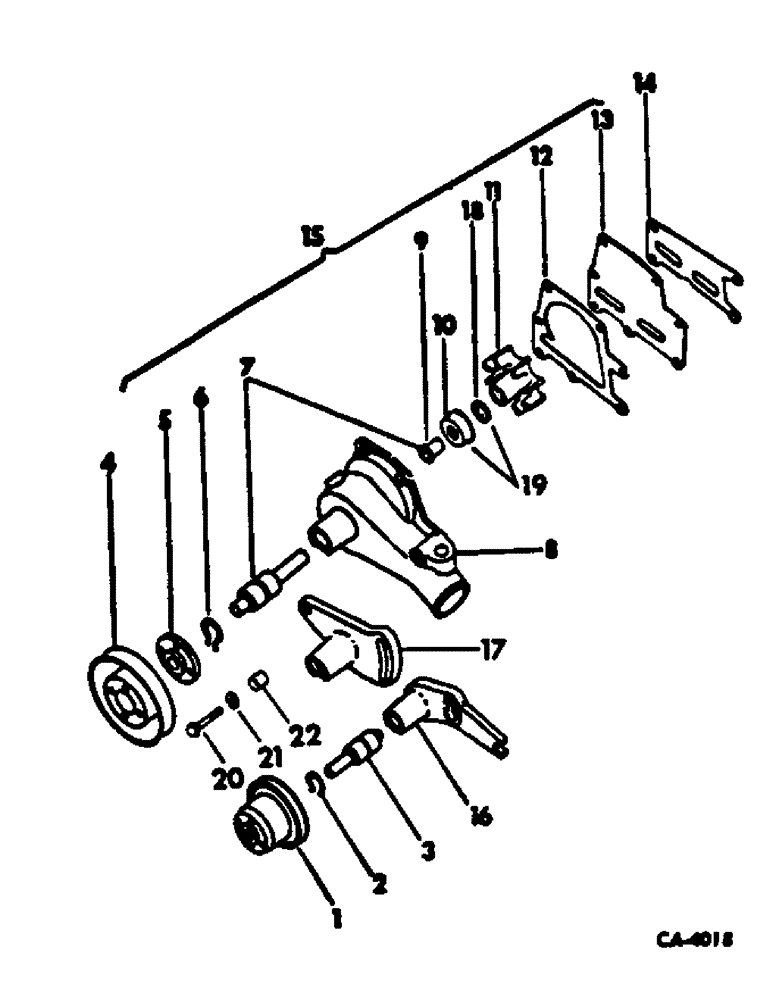

Запчасти Case IH C-263 (B-09) - WATER PUMP

1

372724R1

PULLEY

PULLEY, fan, 403 combines

1шт.

1

396899R1

PULLEY

PULLEY, fan, 615 combines w/belt drive

1шт.

1

368509R1

PULLEY

PULLEY, fan, international 656 tractors with gear drive

1шт.

1

378609R1

PULLEY

PULLEY, fan, farmall 656 tractors, international 656 tractors with hydrostatic transmission and 706 tractors

1шт.

2

102069H

RING

RING, retaining, used with pump body casting number 169204R2

1шт.

2

327316R1

SNAP RING,1.188", Int, #118

Ring, Snap, , used with pump body casting number 169204R3 1.188", Int, #118

1шт.

3

394581R91

BEARING

BEARING AND SHAFT ASSY, fan adjuster, will work for ST634

1шт.

4

368502R1

PULLEY

PULLEY, water pump, 403 combines

1шт.

4

304435R1

PULLEY

PULLEY, water pump, 50 forage harvesters

1шт.

4

395814R1

PULLEY

PULLEY, water pump, optional w/395815R2, combines w/belt drive and 615 combines with serial no. 3095 and below w/hydrostatic transmission

1шт.

4

395815R2

PULLEY

PULLEY, water pump, optional w/395814R1, 656 and 706 tractors and tractors and 615 combines w/belt drive and 615 combines w/belt drive and 615 combines with serial no. 3095 and below w/hydrostatic transmission

1шт.

IF DEALER HAS WATER PUMP WITH BOLT ON HUB HE CAN USE PULLEY 368502R1 OR REMOVE HUB AND USE PRESS ON PULLEY.01/19/95 AUTHOR: BLOEDEL JODY L -cam

1шт.

4

151523R2

PULLEY

PULLEY, fan and water pump, 615 combines with serial no. 3096 and above with hydrostatic transmission

1шт.

5

368501R2

HUB CAP

HUB, pulley, used with pump 601816C92

1шт.

5

227719R2

HUB, pulley, used with pump 534270R91

1шт.

6

395816R1

RING

RING, retaining, used with pump body casting number 169204R2

1шт.

6

327316R1

SNAP RING,1.188", Int, #118

Ring, Snap, , used with pump body casting number 169204R3 1.188", Int, #118

1шт.

7

376602R91

BEARING ASSY,30mm OD x 110.69mm L

SHAFT AND BEARING ASSY, water pump, used with pump 601816C92

1шт.

7

403501R91

BEARING

SHAFT AND BEARING ASSY, water pump, used with pump 534270R91

1шт.

8

NSS

NOT SOLD SEPARAT

BODY W/PLUG ASSY, water pump, not serviced separately furnish pump assy

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 sq-soc-hd pipe, 403 LP gas combines, 656 and 706 LP gas tractors

1шт.

9

71351R1

SLINGER

SLINGER, water pump, used with bearing ST 680

1шт.

9

151207R1

SLINGER

SLINGER, water pump, used w/bearing 403501R91

1шт.

10

73296R93

SEAL

SEAL, water pump

1шт.

11

387931R1

TORQ CONV IMPELLER

IMPELLER, water pump, also order water pump seal 73296R93 and seat 684432C1

1шт.

12

69674R1

GASKET

GASKET, water pump plate

1шт.

13

69675R1

PLATE

PLATE, water pump

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

SCREW, 1/4-20 x 1/2 slt-rd-hd mach

3шт.

14

69676R1

GASKET

GASKET, water pump

1шт.

15

601816C92

PUMP

PUMP ASSY, water, all machines except 615 combines w/engines serial no. 99979 and above w/hydrostatic transmission

1шт.

Consists of, (1) body (NSS), (2) plug 438159, (1) plug 444660, (1) plug 444788, (1) gasket 69674R1, (1) hub 368501R2, (1) impeller 387931R1, (1) slinger 71351R1, (1) plate 69675R1, (1) seal 73296R93, (1) seat 684432C1, (3) screw 113955, (1) ring 327316R1, (1) shaft w/slinger and brg assy 376602R91

1шт.

15

749170C91

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

15

1928129C1

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

374544R94

KIT

repair, use with Ref. 15

1шт.

259207R1

WASHER

WASHER, flat

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/2", G5

3шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

BOLT, 3/8 x 3-1/2 pln type 5

1шт.

15

534270R91

PUMP

PUMP ASSY, water, 615 combines w/engine serial no. 99979 and above w/hydrostatic transmission

1шт.

Consists of, (1) body (NSS), (1) plug 445673, (1) plug 438159, (1) impeller 387931R1, (1) seal assy 73296R93, (1) seat 684432C1, (1) shaft w/slinger and brg assy 403501R91, (1) slinger 151207R1, (1) plate 69675R1, (3) screw 441444, (1) gasket 69674R1

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/2", G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

379654R3

BRACKET

ADJUSTER, fan pulley, 403 combines and 615 combines with belt drive

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT, 3/8-16 x 1-1/4 hex-hd cap, used only with adjuster, 379654R1

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

BOLT, Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

179896

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

BOLT, Hex, 1/2"-13 x 3 3/4", G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Used only with adjuster, 379654R1 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

495-21044

WASHER,3/8"

WASHER, (7/16 x 1 x .083 ga), Used only with adjuster, 379654R1 3/8"

1шт.

446229

WASHER,1/2" x 1 1/4" x .109"

9/16 x 1-1/4 x .109 ga washer

2шт.

17

368508R1

ADJUSTER

HEIGHT ADJUSTER, fan pulley, 706 and farmall 656 tractors

1шт.

17

395818R1

SPARE PART

ADJUSTER, fan pulley, international 656 tractors

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-20 x 1-1/4 x .083

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

106264

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

WASHER, 1/2 x 1-1/4 x .083

2шт.

18

684432C1

SEAT/SLOT

SEAT, water pump seal

1шт.

19

73296R93

SEAL

SEAL ASSY, water pump

1шт.

19

PACKAGE, water pump, furnish seat 684432C1 and seal assy 73296R93

1шт.

20

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

1шт.

21

259207R1

WASHER

WASHER, flat

1шт.

22

371108R1

SPACER,3/8" Pipe x .844"

SPACER, alternator brace

1шт.

396898R92

HUB ASSY, adjuster and fan, 615 combines w/belt dirve, consists of, (1) adjuster 379654R3, (1) shaft and bearing ST634, (1) retainer 102069H, (1) hub 368501R2

1шт.

374544R94

KIT

PACKAGE, water pump service, used with pump 601816C92

1шт.

534274R91

PACKAGE

PACKAGE, water pump serivce, used with pump 534270R91

1шт.
