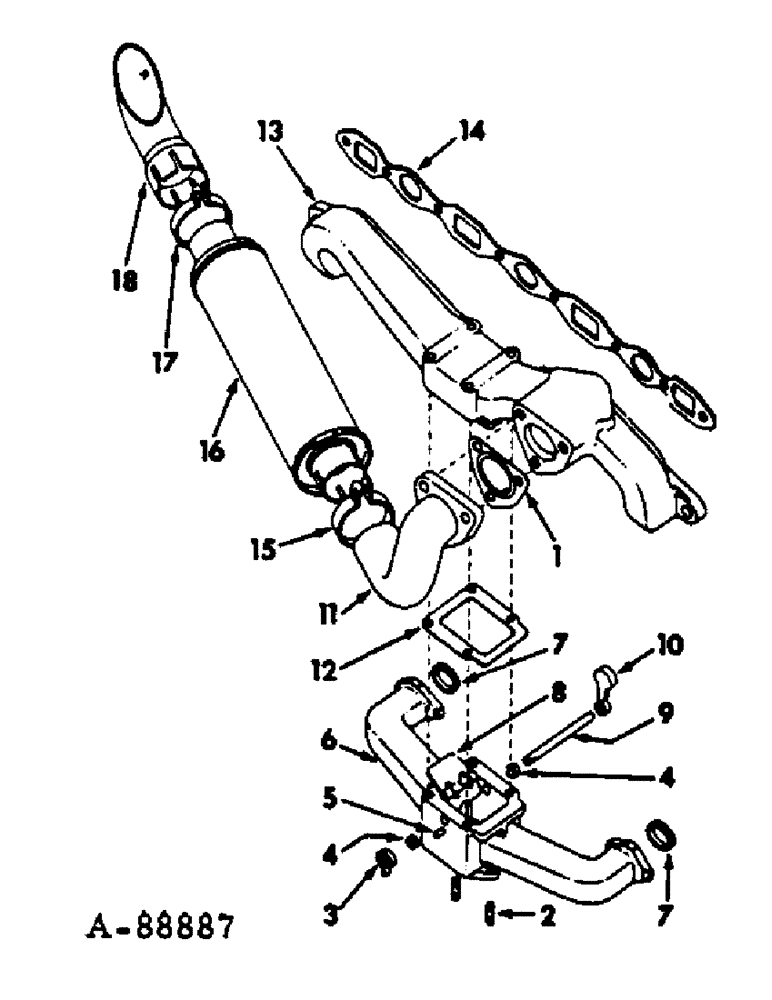

Запчасти Case IH C-221 (A-23) - INTAKE MANIFOLD AND EXHAUST SYSTEM

1

673352R1

GASKET

exhaust pipe below

1шт.

2

12215D

STUD

carburetor

2шт.

3

82958R2

VALVE SPRING

SPRING, thermostat heat control valve

1шт.

4

69443R1

BUSHING

manifold heat control

2шт.

5

37-1316

DOWEL,3/16" x 1"

PIN, 3/16 x 1 dowel (replaces 141159)

1шт.

6

367261R11

MANIFOLD

ASSEMBLY, intake

1шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 sq-hd pipe

1шт.

7

98573HA

GUIDE

PILOT, intake manifold

2шт.

8

85700R1

VALVE

manifold heat control

1шт.

9

82959R1

SHAFT

manifold heat control valve

1шт.

10

85699R1

WEIGHT

manifold heat control

1шт.

11

396888R1

ELBOW, exhaust pipe

1шт.

236481R1

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 8

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

12

85868R1

GASKET

intake to exhaust manifold

1шт.

13

395411R1

MANIFOLD

exhaust

1шт.

399447R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

BOLT, exhaust manifold

2шт.

399446R1

BOLT,Hex, 3/8" - 16 x 1 1/4"

BOLT, exhaust manifold

6шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

400877R1

WASHER

manifold

8шт.

14

400878R1

GASKET

intake & exhaust manifold, will work for 69752R1

1шт.

15

384402R1

FASTENER

CLAMP, exhaust muffler

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

3/8-16 x 1-3/8 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

16

396887R91

MUFFLER

exhaust

1шт.

17

396910R1

CLAMP

muffler outlet

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

3/8-16 x 1-3/8 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18

397178R1

PIPE

exhaust

1шт.
