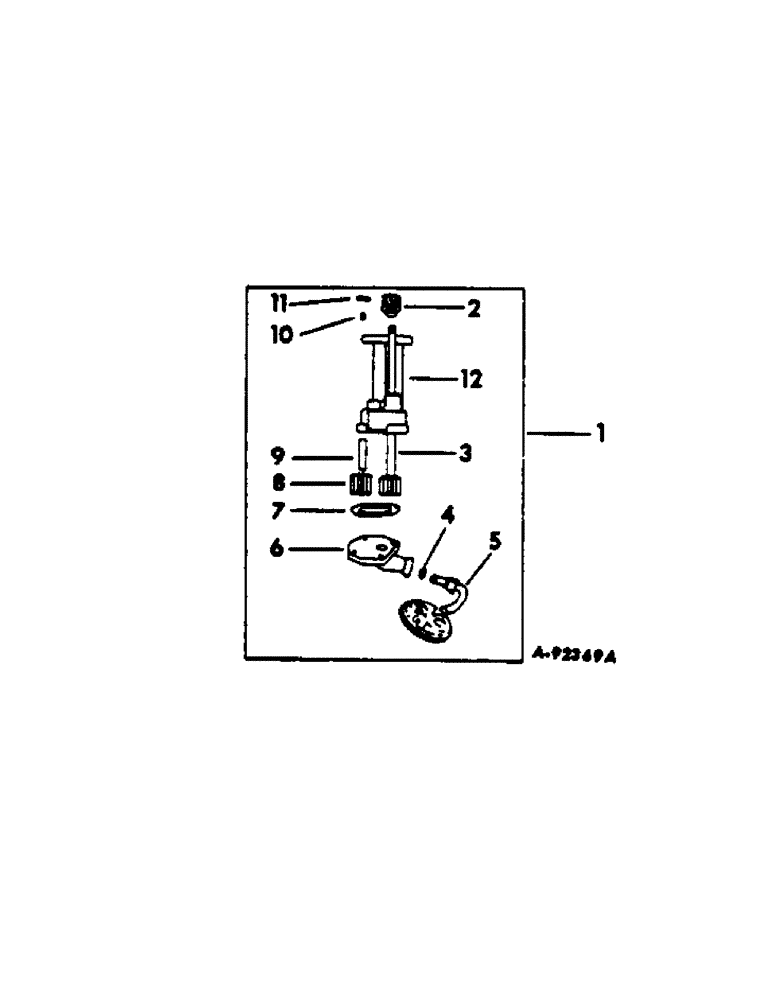

Запчасти Case IH C-221 (A-21) - OIL PUMP

1

230421R91

PUMP, HYDRAULIC

PUMP ASSEBLY, oil

1шт.

735245C91

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

1928211C1

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

69608R93

GEAR, oil pump drive

1шт.

3

230409R91

GEAR

SHAFT & GEAR ASSY, oil pump drive

1шт.

4

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

O-RING, 9/16 x 3/4 x 3/32, oil pump screen

1шт.

5

359160R91

SCREEN

SCREEN ASSY, oil pump

1шт.

137195

PIN, 1/8 x 1-1/4 phosphate coated cot.

1шт.

6

169679R1

SPARE PART COVER, oil pump body

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

69607R1

GASKET

GASKET, oil pump cover, as required

1шт.

8

227713R1

GEAR WHEEL

GEAR, pump body driven

1шт.

9

35647H

SHAFT

SHAFT, idler gear

1шт.

10

NLS

NO LONGER SERVICED

1/8 x 5/8 Woodruff no. 5

1шт.

11

112011

PIN,1/8" x 7/8"

PIN, 1/8 x 7/8 sq. end straight

1шт.

12

NSS

NOT SOLD SEPARAT

BODY, oil pump, not serviced separately furnish pump assy, 230421R91

1шт.

397864R91

FILTER

FILTER ASSY, oil, less ref. 11, order filter assy, 534178R91 and gasket, 534196R1

1шт.
