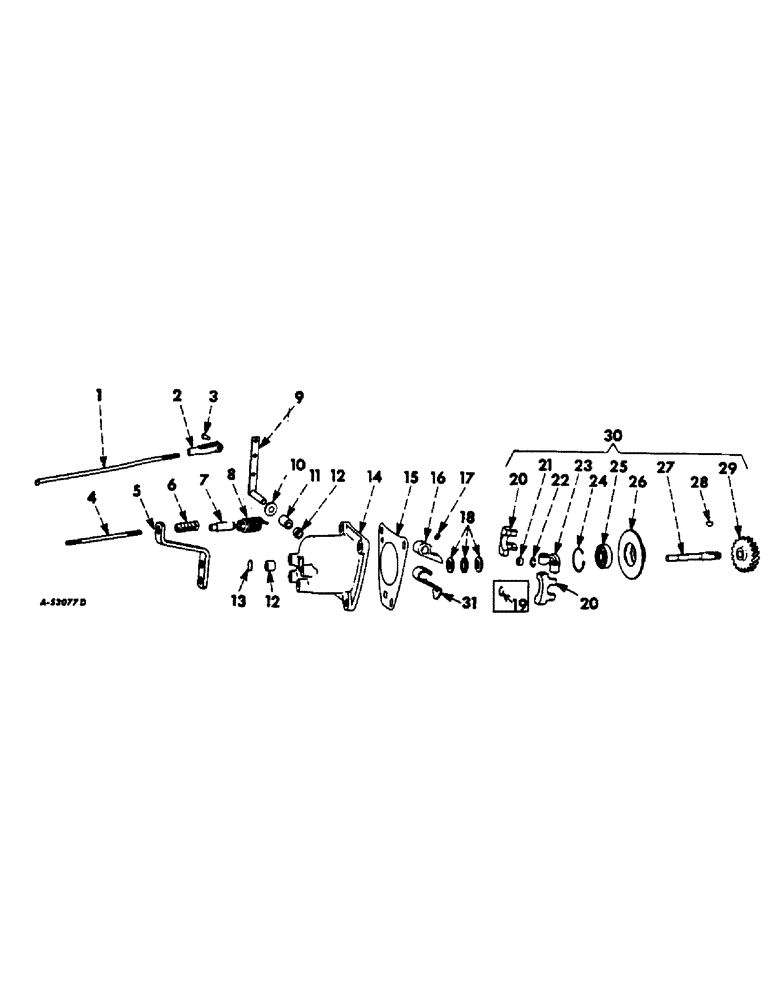

Запчасти Case IH C-221 (A-20) - GOVERNOR

379851R92

GOVERNOR

ASSY, for 205 combines, composed of ref. nos. 9 thru 18, 20 thru 31 and attaching parts

1шт.

378245R92

GOVERNOR ASSY, for 315 combines, composed of ref. nos. 9 thru 18, 20 thru 31 and attaching parts

1шт.

1

368335R1

ROD

, Serial Range: governor-carburetor

1шт.

137130

PIN

1/16 x 7/16 cotter

1шт.

2

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4-28 adj rod end

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex

1шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end

1шт.

137130

PIN

1/16 x 7/16 cotter

1шт.

4

378249R1

ROD, governor spring retainer

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex

1шт.

5

400930R1

BRACKET, governor spring, will work for 378248R1

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

367660R1

BOLT,Hex, 1/2" - 20 x 1.19"

ADJUSTER, governor spring

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex jam

1шт.

7

367740R1

PIN

RETAINER, governor spring

1шт.

8

376592R2

SPRING

governor, 379851R92

1шт.

8

367739R2

SPRING

governor, 378245R92

1шт.

9

378130R91

LEVER

AND ROCKSHAFT ASSEMBLY, governor

1шт.

10

361123R91

OIL SEAL

governor rockshaft oil

1шт.

11

369593R1

BUSHING

governor

1шт.

12

369594R1

BUSHING

governor

2шт.

13

172530

PLUG,Exp, 11/16"

11/16 expansion

1шт.

14

367651R31

HOUSING ASSEMBLY, governor

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex jam

1шт.

127842

YOKE

SCREW, 1/4-28 x 1-1/2 slt-rd-hd mach

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

15

367669R2

GASKET

governor housing

1шт.

16

367653R1

FORK

governor thrust

1шт.

17

368938R1

SET SCREW,Hdls Hex Skt, 1/4" - 28 x 5/16", Cup Pt

governor thrust fork set

1шт.

18

393405R91

THRUST BEARING,11.07mm ID x 25.4mm OD x 11.13mm W

governor thrust ball

1шт.

19

Not used in this application

1шт.

20

367741R1

WEIGHT

governor, part of governor, 379851R92

2шт.

20

378247R1

WEIGHT, governor, part of governor, 378245R92

2шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

2шт.

21

387878R1

SLEEVE

governor thrust

1шт.

22

369477R1

RING

snap

1шт.

23

367726R1

CARRIER

governor weight

1шт.

24

281907C1

SNAP RING,1.438", Int, #143

Ring, Snap, , governor shaft brg 1.438", Int, #143

1шт.

25

ST552

BALL BEARING,12mm ID x 37mm OD x 12mm W

BEARING, governor shaft ball

1шт.

26

367666R1

RETAINER, governor bearing

1шт.

27

367665R1

SHAFT

governor

1шт.

28

452560

KEY, 1/16 x 3/8 Woodruff no. 211

1шт.

29

367664R1

PINION

GEAR, governor

1шт.

864337R1

NUT, 7/16-20 hex lock

1шт.

30

368939R93

PINION

GEAR AND WEIGHT ASSEMBLY, governor, part of governor, 379851R92

1шт.

30

378246R92

GEAR

AND WEIGHT ASSEBLY, governor, part of governor, 378245R92

1шт.

31

374795R1

VALVE SPRING

SPRING, bumper

1шт.

386013R91

SERVICE KIT

PACKAGE, governor overhaul

1шт.
