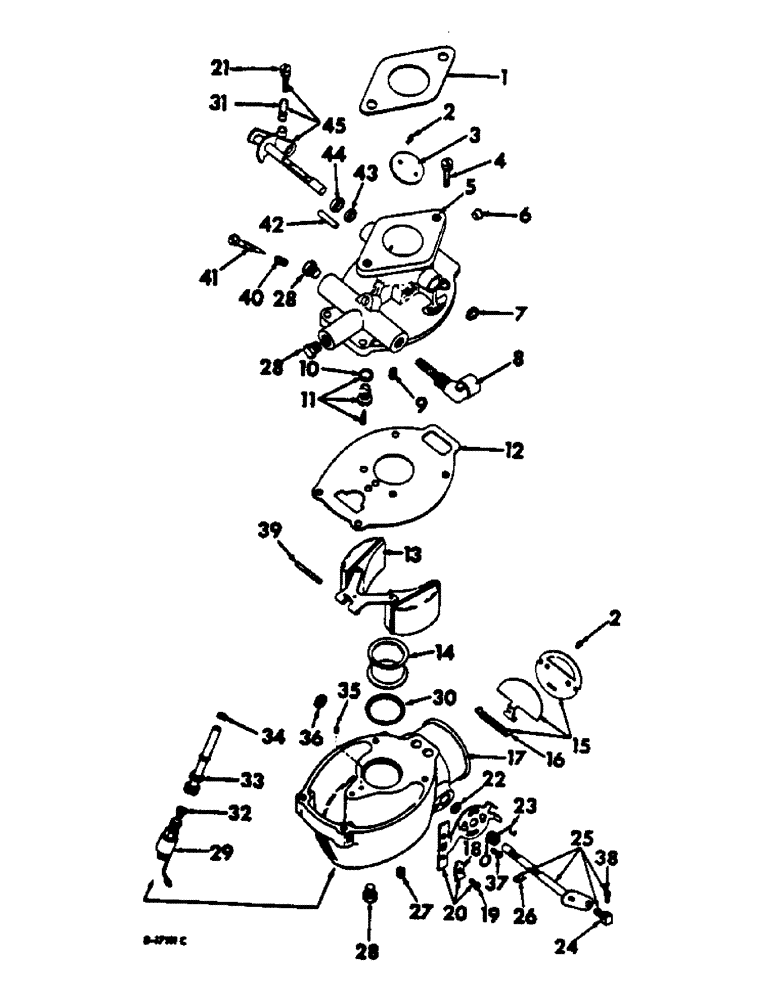

Запчасти Case IH C-221 (A-18) - CARBURETOR-MARVEL SCHEBLER TSX 933

399355R93

CARBURETOR ASSY

1шт.

103026

NUT,3/8"-24, G5

Less ref. nos. 1, 29 and 32 3/8"-24, G5

1шт.

1

530681R1

GASKET

carburetor

1шт.

2

B51702

SCREW,#6 - 32 x 1/4"

W/EXT TOOTH LOCK WASHER, 6-32 x 1/4 C-Z slt-pan-hd mach, choke and trottle plates

4шт.

3

381948R1

VALVE

PLATE, throttle

1шт.

4

19542R91

SCREW W/SPRING LOCK WASHER, 12-24 x 3/4 C-Z slt-fil-hd mach, throttle, Serial Range: body-bowl

4шт.

5

BODY ASSY, throttle, order carburetor assy

1шт.

6

373400R1

PLUG, idle drilling

1шт.

7

381949R1

CUP

throttle shaft

1шт.

8

400423R1

ELBOW

STRAINER ASSY, gasoline

1шт.

9

69929D

JET, idling

1шт.

10

GASKET, float valve seat, order package, 400429R93

1шт.

11

392096R91

VALVE

ASSY, float

1шт.

12

GASKET, throttle body to bowl, order package, 400429R93

1шт.

13

381962R1

FLOAT

& LEVER ASSY

1шт.

13

381962R1GV

FLOAT

Value, Float

1шт.

14

400420R1

VENTURI, 15/16 in.

1шт.

15

381960R91

VALVE

PLATE ASSY, choke

1шт.

16

381961R1

SPRING

choke plate

1шт.

17

BOWL ASSY, fuel, order carburetor assy

1шт.

18

373373R1

CLIP

choke valve bracket

1шт.

19

20832R1

SCREW, w/spring lock washer 8-32 x 1/2 C-Z slt-hex-hd mach

1шт.

20

373372R91

BRACKET

ASSY, choke valve

1шт.

21

131979

SCREW,Sl Fil Hd, #8 - 32 x 3/4"

8-32 x 3/4 C-Z slt-fil-hd mach, throttle stop

1шт.

22

SEAL, choke shaft, order package, 400429R93

1шт.

23

373369R1

SPRING

air shutter return

1шт.

24

373405R1

PIVOT

SWIVEL, choke shaft

1шт.

25

403355R91

LEVER

SHAFT ASSY, choke

1шт.

26

373406R1

SPLIT PIN

SPRING, swivel retainer

1шт.

27

373387R1

FILTER

STRAINER, bowl

1шт.

28

444613

BEARING HOUSING

1/8-27 C-Z auto. hex-hd drain

1шт.

29

71358C92

SOLENOID

VALVE, solenoid fuel shut-off

1шт.

107609C1

WASHER

GASKET, fuel shut-off

1шт.

30

400422R1

RETAINER

venturi

1шт.

31

69953D

SPRING

trottle stop screw

1шт.

32

396993R1

JET

power

1шт.

33

400421R1

NOZZLE

1шт.

34

GASKET, main nozzle, order package, 400429R93

1шт.

35

400416R1

VENT, well

1шт.

36

373403R1

PLUG

CUP, choke shaft

1шт.

37

453666

SCREW W/SPRING LOCK WASHER, 8-32 x 3/8 C-Z slt-fil-hd mach, choke bracket

1шт.

38

455956

SCREW, 8-32 x 5/16 C-Z slt-hex-hd mach, choke swivel

1шт.

39

381963R1

AXLE

float

1шт.

40

69954D

SPRING

idler adjusting screw

1шт.

41

69923D

SCREW

idle adjusting

1шт.

42

533349R1

PIN, 3/19 x 3/4 slt spring, throttle stop

1шт.

43

SEAL, throttle shaft, order package, 400429R93

1шт.

44

SEAL, throttle shaft, order package, 400429R93

1шт.

45

400418R91

SHAFT

ASSY, throttle

1шт.

370535R1

CLIP

carburetor solenoid wire

1шт.

405924R91

KIT

PACKAGE, carburetor overhaul

1шт.

400429R93

PACKAGE

carburetor gasket

1шт.
