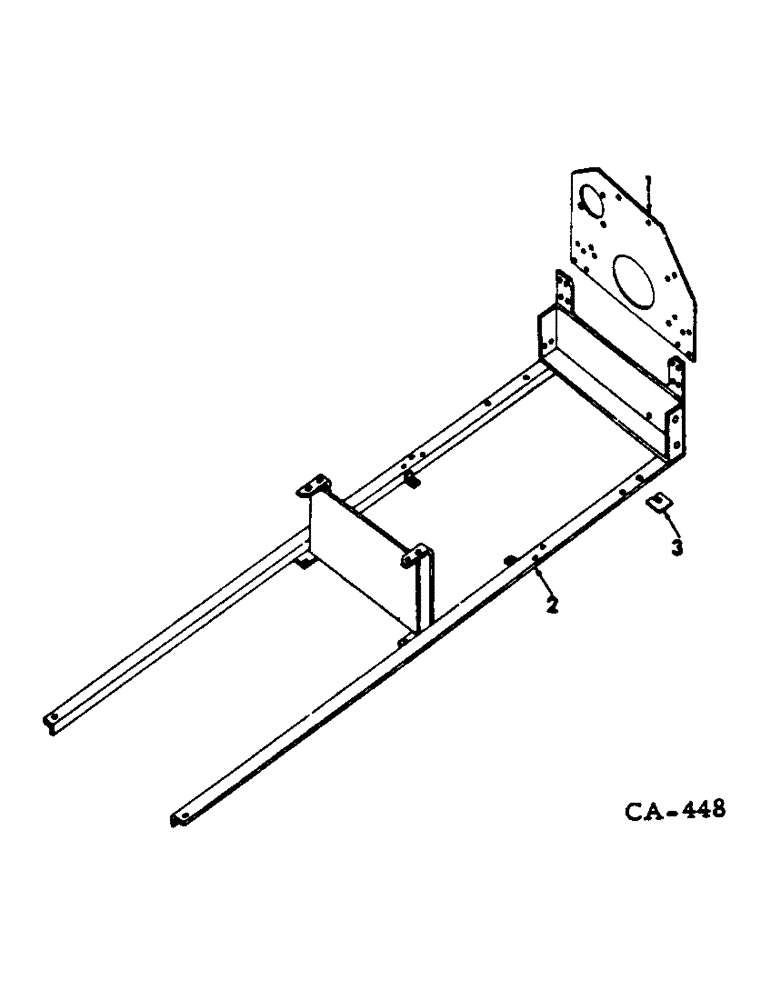

Запчасти Case IH C-221 (A-16) - ENGINE SUPPORTS

1

388055R21

PLATE ASSY, engine rear support

1шт.

271500

SOCKET

7/16-14 hex

4шт.

102637

NUT,1/2"-13, G5

4шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 hex-hd cap

4шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

2

152288C92

FRAME ASSY, engine support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 C-Z sq-nk crg

3шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 C-Z sq-nk crg

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 x 1 C-Z hex-hd mach

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

5/16-18 x 1-1/2 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex

1шт.

271718

SPECIAL WASHER

SCREW, 5/8-11 x 1-3/8 C-Z hex-hd cap

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

3шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

4шт.

21375R1

WASHER

17/32 x 1-1/4 x 7 ga C-Z

4шт.

3

570012R1

STRIP, engine support frame shim

6шт.

158863C1

ROD, engine frame eyebolt, for 205 combines w/serial no. 1997 & above

2шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

4шт.
