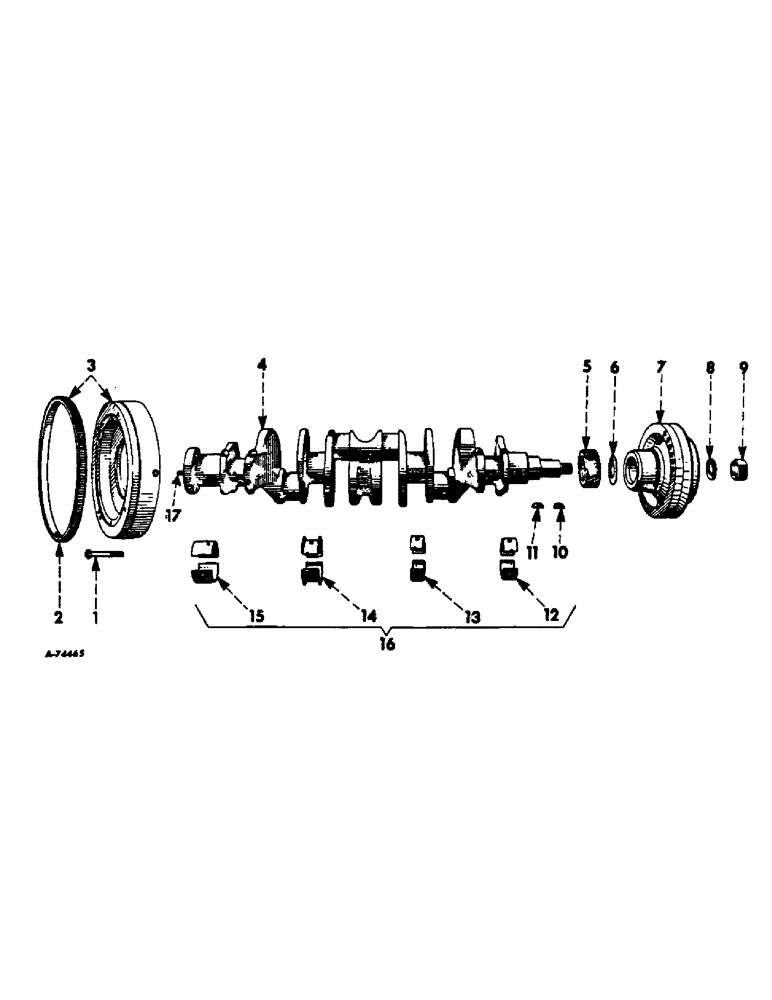

Запчасти Case IH C-221 (A-10) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

70426R1

BOLT, Serial Range: flywheel-crankshaft

6шт.

2

95691H

GEAR

flywheel ring, 159 teeth

1шт.

Ref: #2 95691H Gear, Flywheel Ring 143 Teeth - ref: S/B S1232 1/2 - Old ring gear used prior to 95691H (143 teeth) was 372568R1 (159 teeth). 6-June-96

1шт.

3

276043R11

FLYWHEEL ASSEMBLY

1шт.

4

382355R91

CRANKSHAFT

ASSY, std, consists of, (1) crankshaft (NSS), (1) pin (NSS), 82970R1, (1) bearing assy (NSS), 367276R91, (1) bearing assy (NSS), 367279R91, (1) bearing assy (NSS), 332267R91, (1) bearing assy (NSS), 367285R91, (6) bearing assy (NSS), 367408R11

1шт.

5

367272R1

PINION

GEAR, crankshaft

1шт.

6

71763R2

DEFLECTOR

SLINGER, crankshaft oil

1шт.

7

371573R2

PULLEY

fan drive

1шт.

8

70109R1

WASHER

crankshaft nut

1шт.

9

V84199

NUT,1"-14, Thin

crankshaft

1шт.

425-1516

JAM NUT,Jam, 1"-14, G5

1-NF pln jam type 5

1шт.

10

117984

BUCKET TOOTH KEY

KEY, 5/16 x 1-3/8 woodruff no. 23, fan drive pulley

1шт.

11

103462

KEY

3/16 x 1 woodruff no. 13, crankshaft gear

1шт.

12

367276R91

BEARING LINER

BEARING ASSY, crankshaft front, 2 halves, std

1шт.

12

367300R91

CRANKSHAFT BEARING

BEARING ASSY, crankshaft front, 2 halves, .002 U/S

1шт.

12

376670R91

BEARING ASSY

BEARING ASSY, crankshaft, 2 halves, .010 U/S

1шт.

12

376683R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .020 U/S

1шт.

12

367288R91

BEARING ASSY

ASSY, crankshaft front, 2 halves, .030 U/S

1шт.

13

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

ASSY, crankshaft intermediate, front, 2 halves, std

1шт.

13

367303R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate front, 2 halves, .002 U/S

1шт.

13

376673R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate front, 2 halves, .010 U/S

1шт.

13

376686R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate front, 2 halves, .020 U/S

1шт.

13

367291R91

BEARING

ASSY, crankshaft intermediate front, 2 halves, .030 U/S

1шт.

14

332267R91

BEARING SET

BEARING ASSY, crankshaft intermediate rear, 2 halves, std

1шт.

14

332273R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .002 U/S

1шт.

14

332276R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .010 U/S

1шт.

14

332279R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .020 U/S

1шт.

14

332270R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .030 U/S

1шт.

15

367285R91

BEARING

ASSY, crankshaft rear, 2 halves, std

1шт.

15

367309R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .002 U/S

1шт.

15

376679R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .010 U/S

1шт.

15

376692R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .020 U/S

1шт.

15

367297R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .030 U/S, not serviced in sets, furnish individual bearing assy

1шт.

16

CRANKSHAFT BEARING SETS ARE NO LONGER AVAILABLE FURNISH INDIVIUAL BEARING ASSEMBLIES

1шт.

17

82970R1

STUD

PIN, flywheel to crankshaft dowel

1шт.
