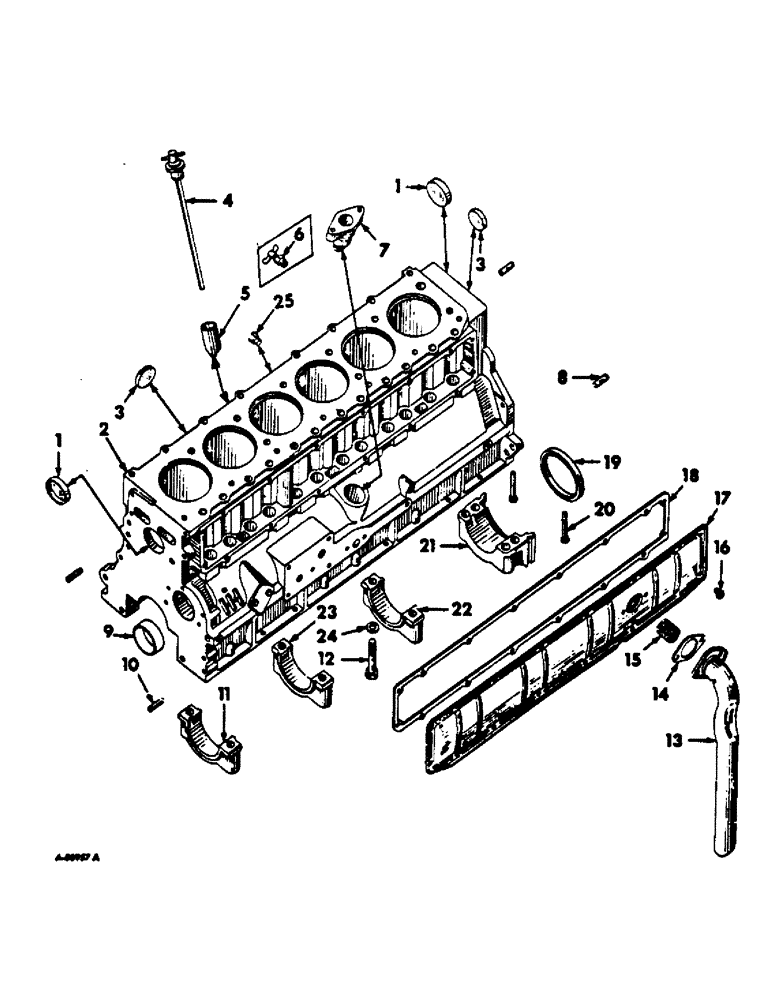

Запчасти Case IH C-221 (A-08) - CRANKCASE AND RELATED PARTS

1

20840R1

PLUG,Cup, 2", Stainless

core hole cup

2шт.

2

NLS

NO LONGER SERVICED

CRANKCASE ASSY, no longer available, furnish skeleton service engine

1шт.

3

379278C1

PLUG

core hole cup

6шт.

4

387347R91

GAUGE

GAGE ASSY, oil level

1шт.

5

378102R1

TUBE, oil filler 1.187" OD, 3.66" Length

1шт.

6

103647

VALVE

COCK, 1/4 type C drain, engine serial no. 51671 & below

1шт.

7

367513R2

ADAPTER

distributor mounting

1шт.

8

371699R2

STUD

DOWEL, engine rear support

2шт.

8

376353R1

DOWEL, engine rear support .030 O/S

2шт.

9

70259R2

BUSHING

camshaft front

1шт.

9

70260R1

BUSHING,53.25mm ID x 56.54mm OD x 27.23mm L

camshaft intermediate front

1шт.

9

70261R2

BUSHING,23.02mm ID x 55.92mm OD x 27.23mm L

camshaft intermediate rear

1шт.

9

70262R1

CAMSHAFT BEARING,37.69mm ID x 41.45mm OD x 33.58mm W

BUSHING, camshaft rear

1шт.

10

NLS

NO LONGER SERVICED

PIN, 1/2 x 1-1/4 dowel

2шт.

11

306671R1

CAP, crankshaft front bearing, partially finished see service manual

1шт.

12

70133R1

BOLT

BOLT, crankshaft bearing cap

10шт.

13

368429R31

VENTILATION PIPE

PIPE ASSEMBLY, breather

1шт.

374587R91

SCREW, w/washer, 1/4-20 x 1/2 slt-rd-hd

2шт.

14

369981R1

GASKET

breather pipe

1шт.

15

369442R1

ELEMENT

breather pipe

1шт.

16

375612R91

CAPSCREW,1/4" - 20 x 1/2"

SCREW, w/washer, 1/4-20 x 1/2 slt-truss-hd

16шт.

17

315970R91

PLATE ASSY.

COVER, w/two elements, 315849R1 valve push rod

1шт.

18

369982R1

GASKET

valve push rod cover

1шт.

19

538983R1

OIL SEAL,99.44mm ID x 116.03mm OD x 9.53mm Thk

crankshaft rear oil, replaces 393180R91

1шт.

20

310665R1

PLUG

rear bearing cap filler

2шт.

21

306674R1

CAP, crankshaft rear bearing, partially finished see service manual

1шт.

22

306673R1

CYLINDER END CAP

CAP, crankshaft rear intermediate, partially finished see service manual

1шт.

23

306672R1

CYLINDER END CAP

CAP, crankshaft front intermediate, partially finished see service manual

1шт.

24

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

bearing cap bolt

10шт.

25

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1/4-18 auto hex-hd pipe, engine serial no. 51672 & above

1шт.

444854

PLUG,Hex Soc, 1/8"-27 NPTF

1/8-27 auto, hex-soc-hd drain

3шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

3/8-18 auto, sq-soc-hd pipe

2шт.
