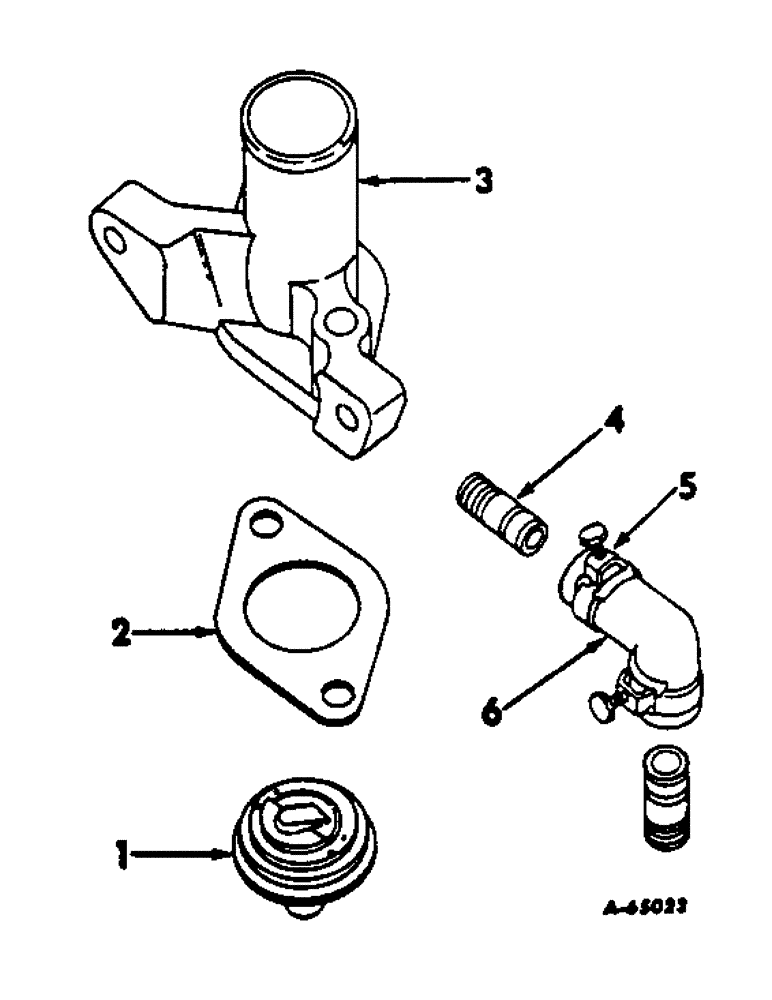

Запчасти Case IH C-221 (A-07) - HOUSING AND THERMOSTAT

1

108120R92

THERMOSTAT

167 to 172 deg opening

1шт.

item 1 nominal temp is 170 deg starts to open at 167-172 degrees and is fully open at 192 degrees

1шт.

2

368505R1

GASKET

water outlet

1шт.

3

380758R1

OUTLET, water

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

4

169193R1

PIPE

NIPPLE, water by-pass

2шт.

5

240369R91

CLAMP, hose

2шт.

6

169192R1

HOSE

ELBOW, water by- pass

1шт.
