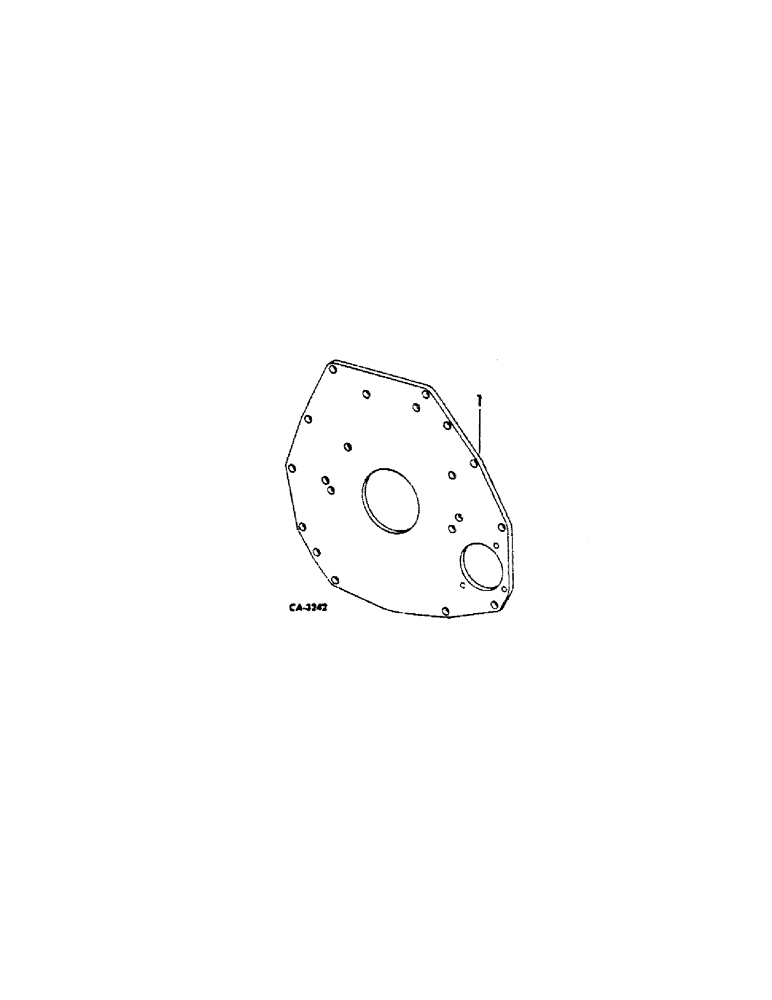

Запчасти Case IH C-200 (G-26[A]) - ENGINE REAR ADAPTER, 574, 674, 2500A, 2500B, 2505B, 2510B, 2514B AND 3500A TRACTORS

1

405867R2

ADAPTER

engine rear

1шт.

On orders for 405867R2 when used on 3500A tractors with engine serial no. 28343 and below furnish (1) adapter 405866R1, (6) bolts 179883, (1) flywheel w/gear 405860R11, (6) bolts 601669C1, (1) rod 535981R1, (1) spacer 369289R1, (4) bolts 181575, (1) mounting assy 536158R2

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

1

405866R1

ADAPTER, engine rear, 3500A tractors with engine serial no. 28344 and above

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

6шт.
