(G-14) - CRANKCASE OIL PAN, 544, 2544, 3500A TRACTORS AND 8000 FORK LIFTS

Запчасти Case IH C-200 (G-14) - CRANKCASE OIL PAN, 544, 2544, 3500A TRACTORS AND 8000 FORK LIFTS

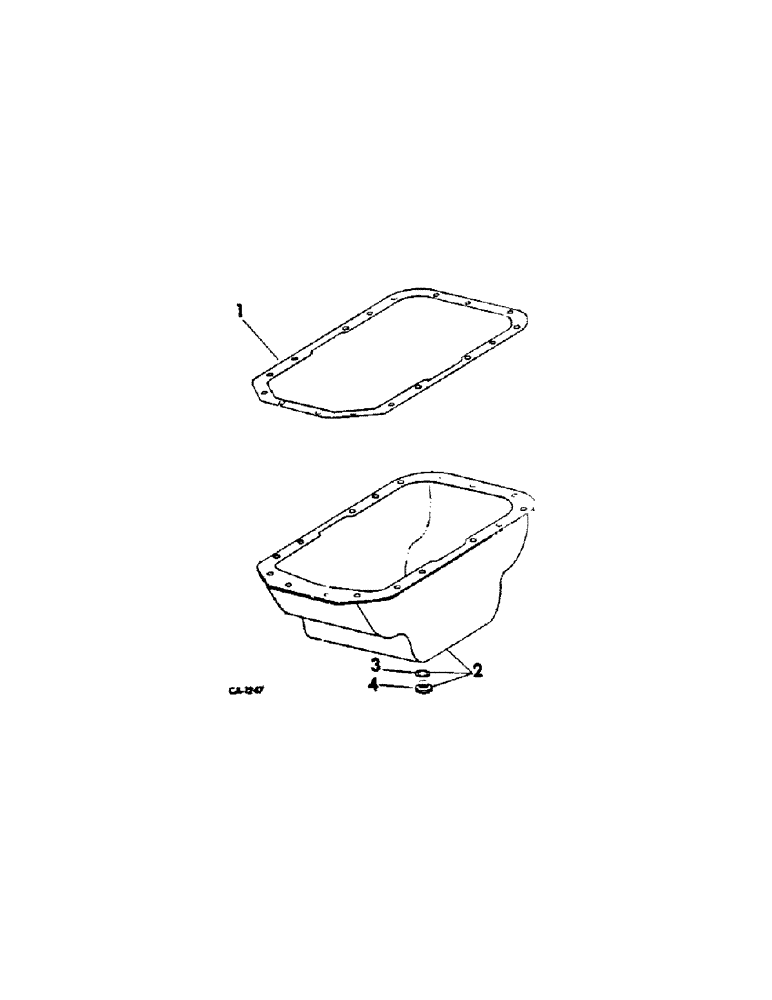

Схема запчастей Case IH C-200 - (G-14) - CRANKCASE OIL PAN, 544, 2544, 3500A TRACTORS AND 8000 FORK LIFTS
4
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

398031R2

GASKET

crankcase pan

1шт.

2

398025R91

PAN W/DRAIN PLUG AND GASKET, crankcase oil

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

17шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

17шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

4шт.

3

3405H

GASKET

oil pan drain plug

1шт.

4

445096

PLUG

crankcase oil pan drain

1шт.
