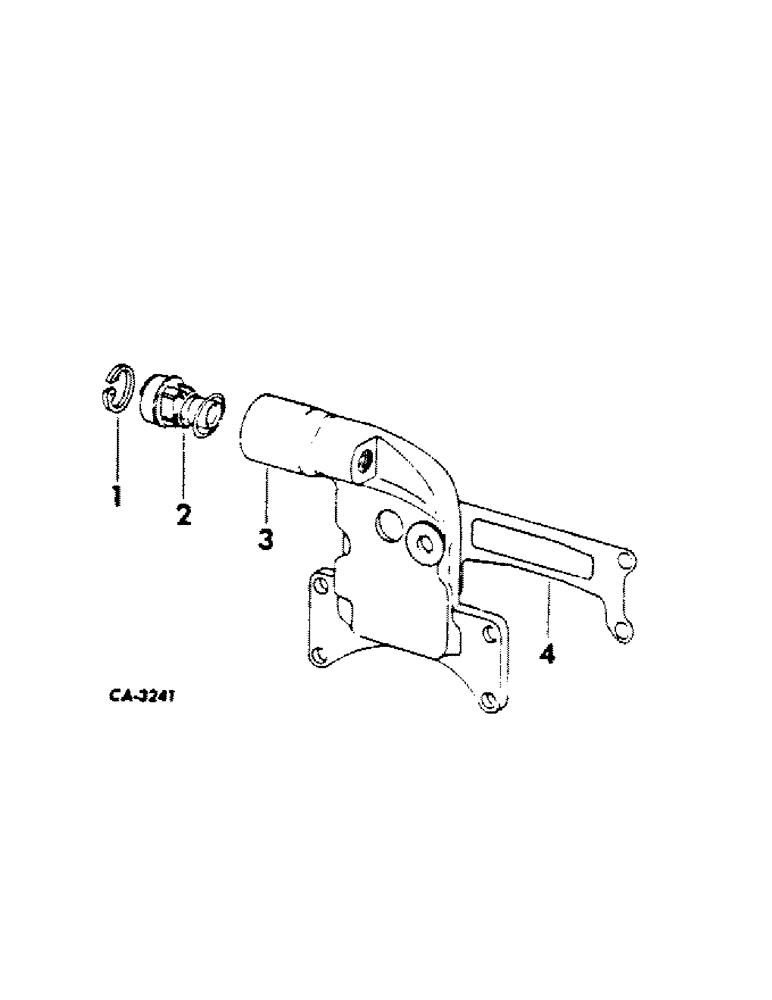

Запчасти Case IH C-200 (G-08[A]) - THERMOSTAT AND HOUSING, 574, 674, 2500A, 2500B, 2505B, 2510B, 2514B AND 3500A TRACTORS

1

377180R1

RING

thermostat, machines w/engine serial no. 15256 and below

1шт.

1

23913R1

SNAP RING,1.625", Int, #162

Ring, Snap, , thermostat, machines w/engine serial no. 15257 and above 1.625", Int, #162

1шт.

298387R1

RING

O-RING, 1-7/16 x 1-5/8 x 3/32, used w/thermostat, 377156R91

1шт.

2

107596C1

THERMOSTAT

180 deg, replaces 377156R91 by also ordering ring, 23913R1 and washer, 107593C1

1шт.

107593C1

WASHER

WASHER, thermostat, used w/thermostat, 107596C1

1шт.

3

405853R1

ELBOW, water outlet

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 CI sq-hd auto pipe

1шт.

4

397971R1

GASKET

water outlet elbow

1шт.
