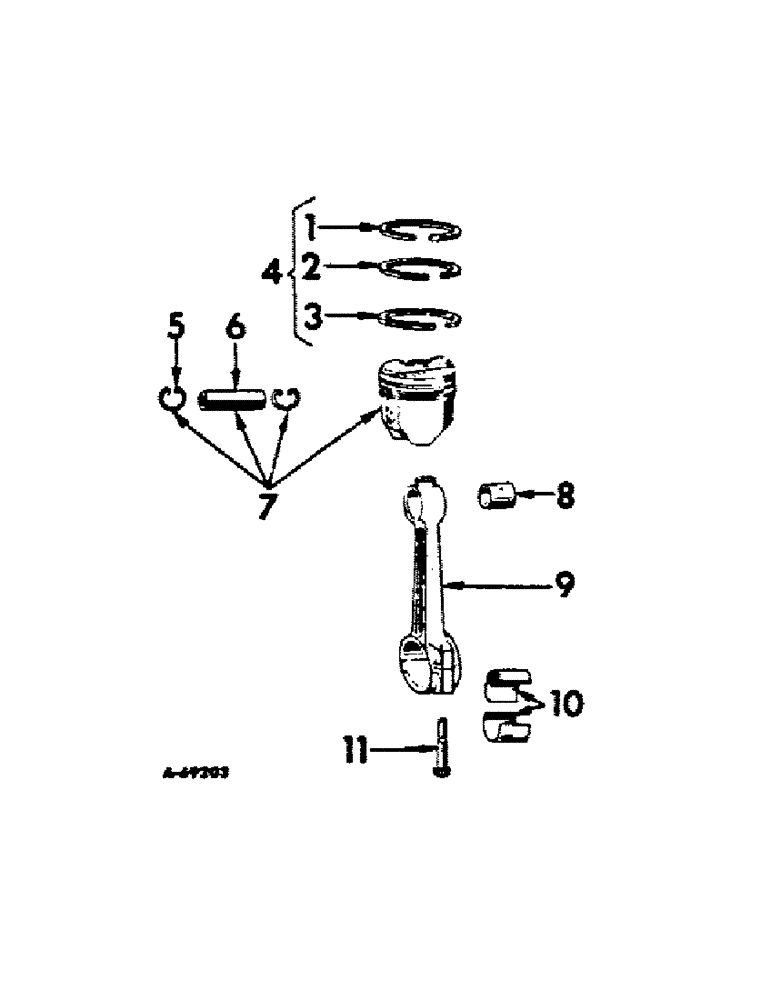

Запчасти Case IH C-175 (F-06) - CONNECTING RODS AND PISTONS

1

NSS

NOT SOLD SEPARAT

RING, compression piston, top or first groove, not serviced separately, order piston ring set

4шт.

2

NSS

NOT SOLD SEPARAT

RING, compression piston, second groove, not serviced separately, order piston ring set

4шт.

3

NSS

NOT SOLD SEPARAT

RING, oil regulating piston, third or bottom groove, not serviced separately, order piston ring set

4шт.

4

539379R2

SET

RING SET, piston, consists of two compression and one oil regulating rings, std and .010 O/S

4шт.

4

539380R2

SET

RING SET, piston, consists of two compression and one oil regulating rings, .020 O/S

4шт.

4

539381R2

SET

RING SET, piston, consists of two compression and one oil regulating rings, .030 O/S

4шт.

4

539382R2

RING, SET

RING SET, piston, consists of two compression and one oil regulating rings, .040 O/S

4шт.

5

19517D

SPECIAL RING

RING, piston pin retainer

8шт.

6

70014R1

PIN

piston

4шт.

6

70015R1

PIN, piston .005 O/S

4шт.

7

400350R92

PITMAN ASSY.

PISTON W/PIN AND RETAINER RING STD

4шт.

7

400351R92

PISTON W/PIN AND RETAINER RING .010 O/S

4шт.

7

400352R92

PISTON

W/PIN AND RETAINER RING .020 O/S

4шт.

7

400353R92

PISTON

W/PIN AND RETAINER RING .030 O/S

4шт.

7

400354R92

PISTON

W/PIN AND RETAINER RING .040 O/S

4шт.

7

400355R92

PISTON W/PIN AND RETAINER RING HIGH ALTITUDE

4шт.

7

400356R92

PISTON W/PIN AND RETAINER RING .010 O/S HIGH ALTITUDE

4шт.

7

400357R92

PISTON W/PIN AND RETAINER RING .020 O/S HIGH ALTITUDE

4шт.

7

400358R92

PISTON W/PIN AND RETAINER RING .030 O/S HIGH ALTITUDE

4шт.

7

400359R92

PISTON W/PIN AND RETAINER RING .040 O/S HIGH ALTITUDE

4шт.

8

364913R1

BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L

piston pin

4шт.

9

367406R21

ROD

w/two bolts, 280318C1 and bushing, 364913R1, connecting

4шт.

10

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSY, connecting rod

4шт.

10

367632R11

BEARING ASSY

BEARING ASSY, connecting rod .002 U/S

4шт.

10

376666R11

BEARING ASSY

ASSY, connecting rod .010 U/S

4шт.

10

376668R11

CONN. ROD SHELL

BEARING ASSY, connecting rod .020 U/S

4шт.

10

367631R11

BEARING ASSY

ASSY, connecting rod .030 U/S

4шт.

11

280318C1

BOLT,Hex, 3/8" - 24 x 1.875"

connecting rod, replaces 316366R1

8шт.
