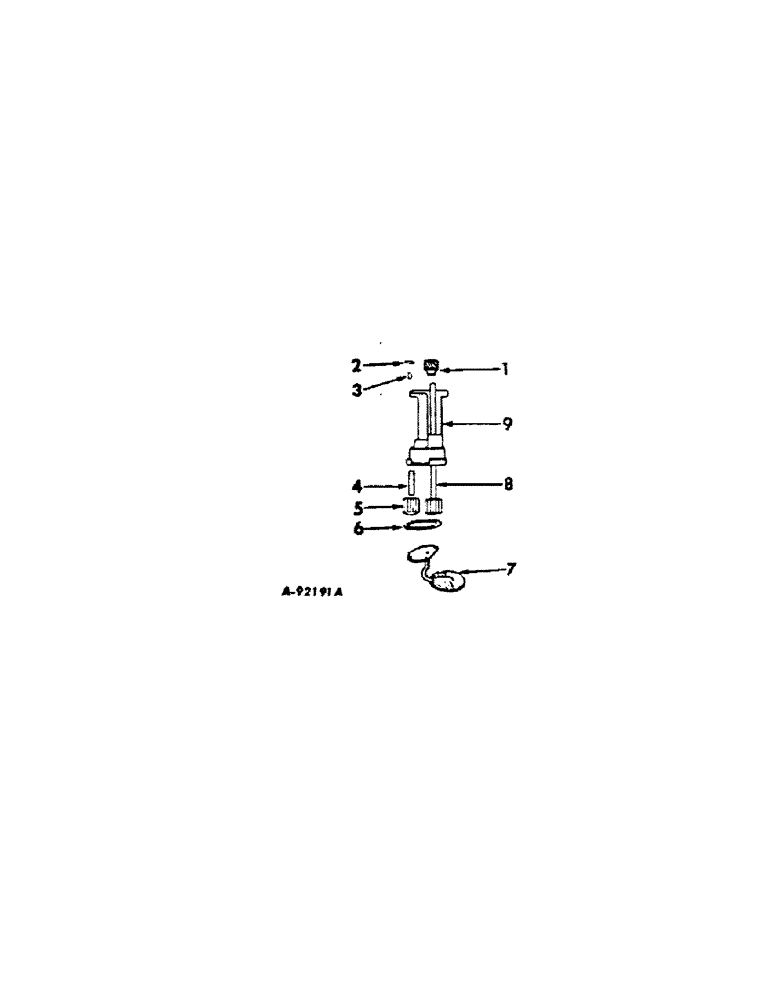

Запчасти Case IH C-175 (F-31[A]) - OIL PUMP

1

404210R1

GEAR, oil pump drive

1шт.

2

112011

PIN,1/8" x 7/8"

1/8 x 7/8 sq end str

1шт.

3

103905

KEY

1/8 x 5/8 Woodruff no. 5

1шт.

4

35647H

SHAFT

idler gear

1шт.

5

227713R1

GEAR WHEEL

GEAR, pump body driven

1шт.

6

69607R1

GASKET

oil pump cover

2шт.

7

398074R3

COVER

AND SCREEN ASSY, oil pump

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

230409R91

GEAR

SHAFT & GEAR ASSY, oil pump drive

1шт.

9

NSS

NOT SOLD SEPARAT

BODY, oil pump, not serviced separately, order pump assy

1шт.
