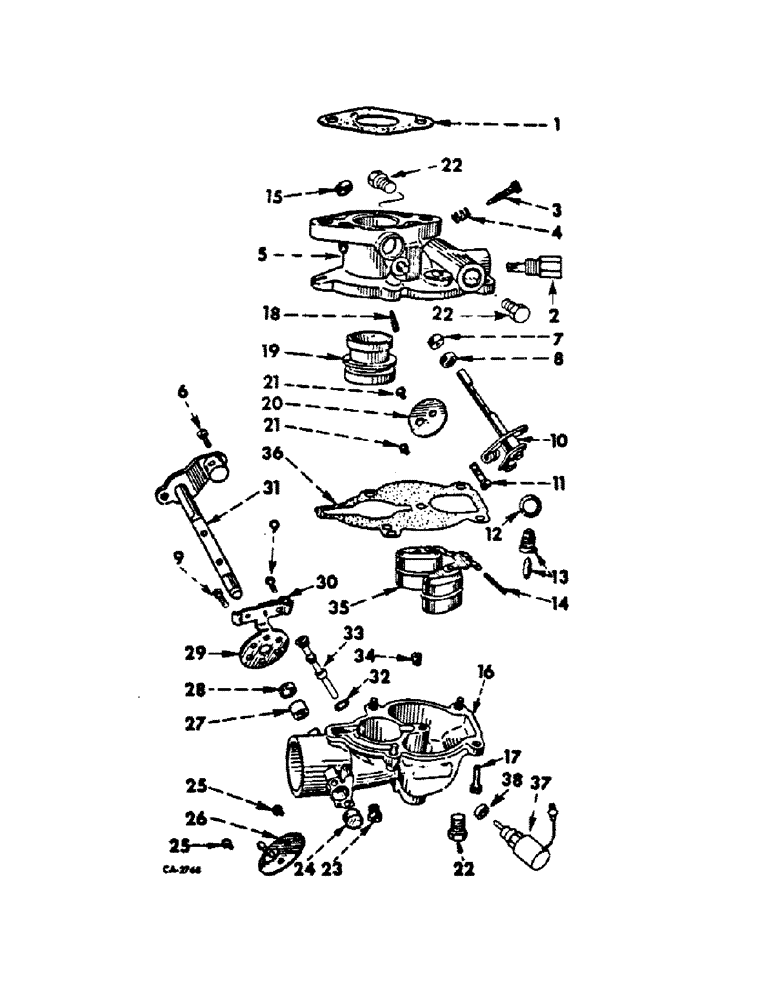

Запчасти Case IH C-175 (F-28) - CARBURETOR

405688R91

CARBURETOR ASSY, Zenith, optional w/carburetor assy, 404731R91, 3514 tractors

1шт.

1

530681R1

GASKET

carburetor, see note

1шт.

2

384859R1

STRAINER ASSY, fuel inlet

1шт.

3

537009R1

ADJUSTMENT SCREW

SCREW, idle adjusting needle

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING, idle adjusting needle valve, not serviced separately, order overhaul package

1шт.

5

NS

NOT SERVICED

BODY ASSEMBLY, throttle, not serviced

1шт.

6

19402R1

SCREW, 8-36 x 7/16 C-Z slt-hex-hd mach

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL, throttle shaft, not serviced separately, order gasket package

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER, throttle shaft seal, not serviced separately, order gasket package

12шт.

9

131958

ELBOW

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

10

537008R91

SHAFT

AND LEVER, throttle

1шт.

17164R1

LOCK PIN,3/32" x 7/16", Slotted

PIN, , Throttle 3/32" x 7/16", Slotted

1шт.

11

19509R1

SCREW, 8-36 x 5/8 slt-hex-hd mach throttle stop

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER, fuel valve, not serviced separately, order gasket package

1шт.

13

390873R91

VALVE

AND SEAT ASSY, fuel

1шт.

14

381030R1

AXLE

float

1шт.

15

NSS

NOT SOLD SEPARAT

PLUG, throttle shaft hole, not serviced separately, order carburetor repair kit

1шт.

16

NS

NOT SERVICED

BOWL ASSEMBLY, fuel, not serviced

1шт.

17

19563R91

SCREW W/SPRING LOCK WASHER, 12-24 x 5/8 C-Z slt-fil-hd mach

4шт.

18

68550C1

IDLE JET

1шт.

19

NS

NOT SERVICED

VENTURI, not serviced

1шт.

20

NS

NOT SERVICED

PLATE, throttle, not serviced

1шт.

21

454415

SCREW W/SPRING LOCK WASHER, throttle plate

2шт.

22

FOR444613

PLUG

1/8 pipe

3шт.

23

384327R91

FILTER

ASSY, drip plug

1шт.

24

NS

NOT SERVICED

PLUG, choke shaft hole, not serviced

1шт.

25

454415

SCREW W/SPRING LOCK WASHER, choke plate

2шт.

26

NS

NOT SERVICED

PLATE ASSY, choke, not serviced

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL, choke shaft, not serviced separately, order gasket package

1шт.

28

NSS

NOT SOLD SEPARAT

RETAINER, choke shaft packing, not serviced separately, order gasket package

1шт.

29

NS

NOT SERVICED

BRACKET ASSEMBLY, choke valve w/clamp, screw and nut, not serviced

1шт.

30

369886R1

CLAMP

choke cable

1шт.

19509R1

SCREW, 8-36 x 5/8 slt-hex-hd mach

1шт.

19404R1

NUT, 8-36 C-Z sq mach

1шт.

31

NS

NOT SERVICED

LEVER AND SHAFT W/SCREW ASSEMBLY CHOKE VALVE, not serviced

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER, discharge jet fibre, not serviced separately, order gasket package

1шт.

33

537028R1

JET AND NOZZLE, main discharge

1шт.

34

537029R1

SCREW

BLEED, main air

1шт.

35

381027R1

FLOAT

ASSY, fuel

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET, bowl to body, not serviced separately, order gasket package

1шт.

37

393168R94

VALVE

solenoid fuel shut-off, see note

1шт.

38

527840R1

GASKET

fuel shut-off solenoid, see note

1шт.

537006R91

KIT

PACKAGE, carburetor overhaul

1шт.

68441C1

PACKAGE

carburetor gasket

1шт.
