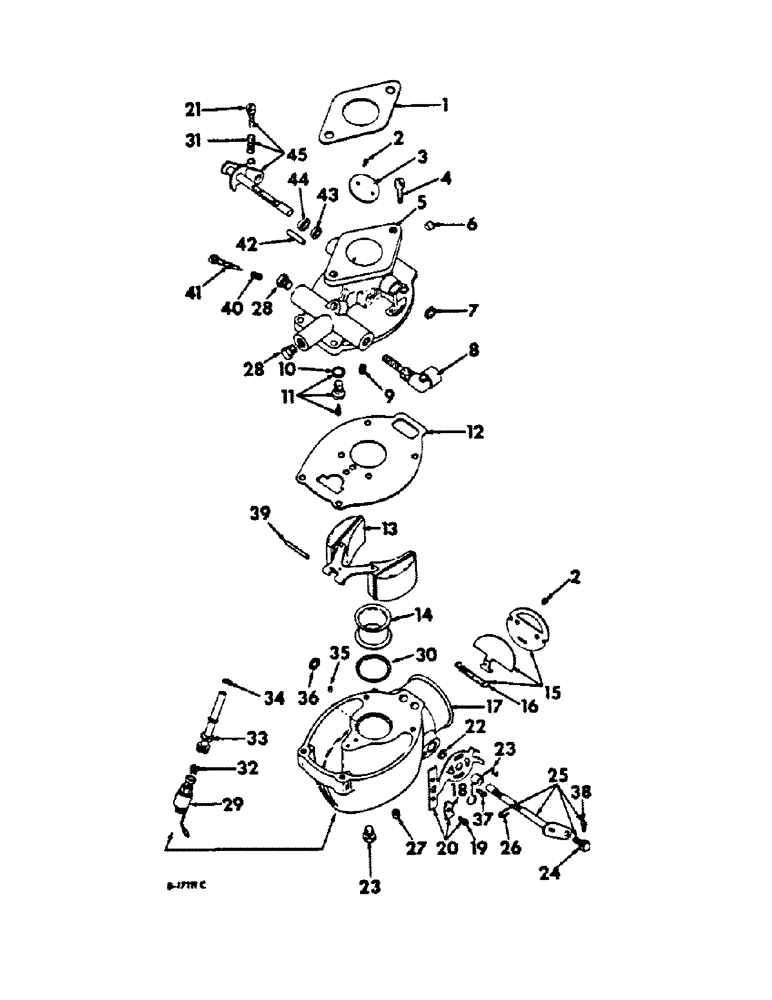

Запчасти Case IH C-175 (F-26) - CARBURETOR

404731R91

CARBURETOR ASSY, Marvel Schebler, optional w/carburetor assy, 405688R91, 3514 tractors

1шт.

405873R93

CARBURETOR

ASSY, Marvel Schebler, will work for 405873R92, all machines except 375 windrowers and 3514 tractors

1шт.

400348R91

CARBURETOR ASSY, 375 windrowers

1шт.

1

530681R1

GASKET

carburetor, see note

1шт.

2

454579

PULLEY

choke and throttle plate

4шт.

3

381948R1

VALVE

PLATE, throttle

1шт.

4

19542R91

SCREW, throttle, Serial Range: body-bowl

4шт.

5

NS

NOT SERVICED

BODY ASSY, throttle, not service

1шт.

6

373400R1

PLUG, idle drilling

1шт.

7

405920R1

PLUG

throttle shaft cup

1шт.

8

400423R1

ELBOW

STRAINER ASSY, gasoline, used w/carburetor assy, 404731R91 and 405873R92

1шт.

8

69938D

ELBOW

STRAINER ASSY, gasoline, used w/carburetor assembly, 400348R91

1шт.

9

69929D

JET, idling

1шт.

10

GASKET, float valve seat, part of package, 400429R93

1шт.

11

392096R91

VALVE

ASSY, float

1шт.

12

GASKET, throttle body to bowl, part of package, 400429R93

1шт.

13

381962R1

FLOAT

ASSY

1шт.

13

381962R1GV

FLOAT

Value, Float

1шт.

14

405925R1

VENTURI

7/8 in.

1шт.

15

68101C91

VALVE

ASSY, choke

1шт.

16

381961R1

SPRING

choke plate

1шт.

17

NS

NOT SERVICED

BOWL ASSY, fuel, not serviced

1шт.

18

373373R1

CLIP

choke valve bracket

1шт.

19

20832R91

SCREW, w/spring lock washer 8-32 x 1/2 C-Z slt-hex-hd mach

1шт.

20

373372R91

BRACKET

ASSY, choke valve

1шт.

21

131979

SCREW,Sl Fil Hd, #8 - 32 x 3/4"

throttle stop

1шт.

22

SEAL, choke shaft, part of package, 400429R93

1шт.

23

373369R1

SPRING

air shutter return

1шт.

24

373405R1

PIVOT

SWIVEL, choke shaft

1шт.

25

403355R91

LEVER

SHAFT ASSY, choke, used w/carburetor assy, 404731R91 and 405873R92

1шт.

25

401383R91

SHAFT ASSY, choke, used w/carburetor assembly, 400348R91

1шт.

26

373406R1

SPLIT PIN

SPRING, swivel retainer

1шт.

27

373387R1

FILTER

STRAINER, bowl

1шт.

28

FOR444613

PLUG

drain, 1 used for drain plug, 2 used for fuel inlet

1шт.

29

71358C91

PACKAGE

VALVE, solenoid fuel shut-off, see note

1шт.

107609C1

WASHER

GASKET, fuel shut-off, see note, will work for 527842R1

1шт.

30

400422R1

RETAINER

Venturi

1шт.

31

69953D

SPRING

throttle stop screw

1шт.

32

404156R1

JET

main black, see note, used w/carburetor assembly 400348R91, 404731R91 and 405873R93

1шт.

32

397255R1

JET

main red, see note, used w/454, 2400A, 2400B, 2410B and 2412B tractors with carburetor 405873R92

1шт.

33

405923R1

NOZZLE INJECTION

NOZZLE

1шт.

34

GASKET, main nozzle, part of package, 400429R93

1шт.

35

373383R1

BUSHING

BLEED, main air

1шт.

36

373403R1

PLUG

choke shaft cup

1шт.

37

453666

SCREW, choke bracket

1шт.

38

455956

SCREW, choke swivel 8-32 x 5/16 C-Z slt-hex-hd mach

1шт.

39

381963R1

AXLE

float

1шт.

40

69954D

SPRING

idle adjusting screw

1шт.

41

69923D

SCREW

idle adjusting

1шт.

42

533349R1

PIN, throttle stop

1шт.

43

SEAL, throttle shaft, part of package, 400429R93

1шт.

44

SEAL, throttle shaft, part of package, 400429R93

1шт.

45

400418R91

SHAFT

ASSY, throttle

1шт.

370535R1

CLIP

carburetor solenoid wire

1шт.

400429R93

PACKAGE

carburetor gasket

1шт.

405924R91

KIT

PACKAGE, carburetor overhaul

1шт.
