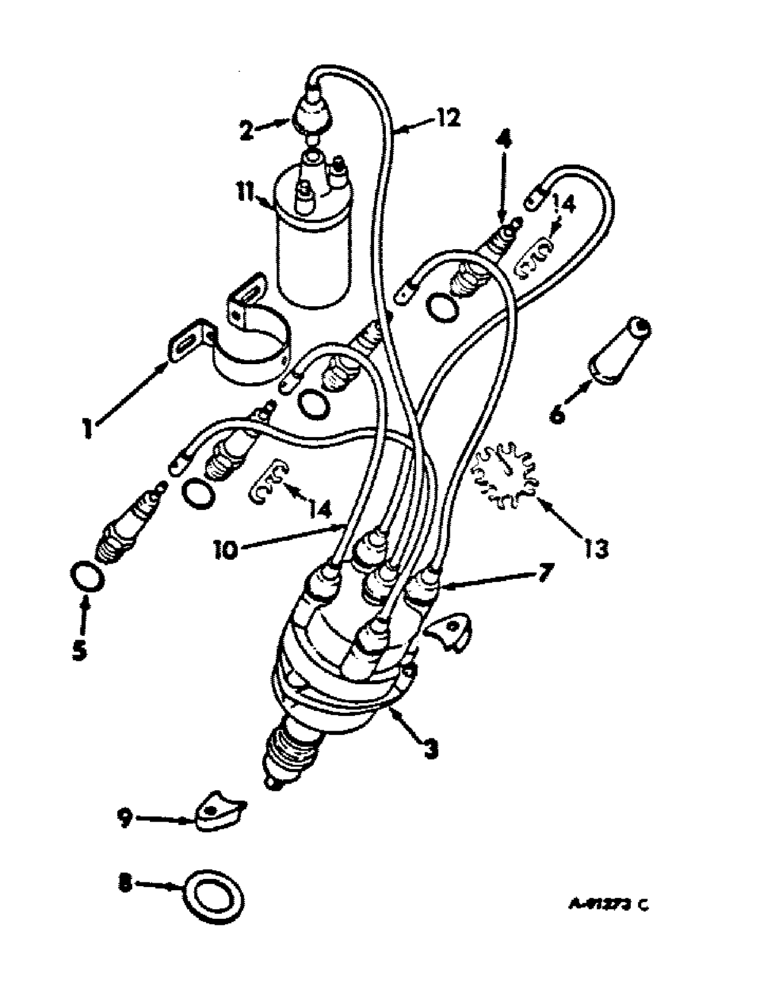

Запчасти Case IH C-175 (F-22) - SPARK PLUGS, COIL, CABLES AND DISTRIBUTOR

1

NSS

NOT SOLD SEPARAT

CLAMP, ignition coil, furnish ignition coil service package 396546R93 or 396547R93

1шт.

177056

HUB

SCREW, 10-32 x 1-1/2 C-Z slt-rd-hd

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

372875R1

NIPPLE, LUBE

NIPPLE, coil terminal

1шт.

3

DISTRIBUTOR ASSEMBLY, for components see list of parts under details of distributor assy

1шт.

4

RD18Y

SPARK PLUG

light service, Champion

4шт.

4

RD15Y

SPARK PLUG

W/GASKET, 37762H, moderate service, Champion

4шт.

4

18R52

SPARK PLUG W/GASKET 37762H, moderate service, Prestolite

4шт.

4

RD6

SPARK PLUG

heavy service, Champion

4шт.

5

37762H

GASKET

spark plug

4шт.

6

371430R1

INSULATOR

spark plug terminal, optional w/438502C1

4шт.

6

438502C1

BOOT

INSULATOR, spark plug terminal, optional w/371430R1

1шт.

7

251553R1

BOOT

NIPPLE, distributor cap terminal

4шт.

8

353936R2

GASKET

distributor

1шт.

9

353937R1

CLIP

CLAMP, distributor

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

407487R1

SET

PACKAGE, spark plug cable service, replaces 398091R1 and 536585R91, engines w/serial number 5811 and below, consists of (4) spark plug calbes (NSS), (1) coil to distributor cable (NSS), (4) nipples (NSS), (6) terminals (NSS), (1) strap, lock (NSS)

1шт.

10

407487R1GV

SET

Value, Package, Ignition Cable

1шт.

10

70219C91

PACKAGE

spark plug cable service, engines w/serial number 5812 and above, replaces 398091R1 and 536585R91, consists of (4) cable (NSS), (1) coil cable (NSS), (1) retainer 536582R1, (2) retainer 531981R1, (4) insulator 371430R1

1шт.

11

396546R93

KIT

PACKAGE, ignition coil service, all machines except 375 windrowers, (1) clamp (NSS), (1) coil (NSS), (1) nipple 372875R1, (2) nut 120614, (2) washer 120217, 396546R92

1шт.

11

396547R93GV

COIL

Value, Ignition Coil Kit

1шт.

11

396547R93

PACKAGE

ignition coil service, 375 windrowers, (1) clamp (NSS), (1) coil (NSS), (1) nipple 372875R1, (2) nut 120614, (2) washer 120217

1шт.

11

396547R93GV

COIL

Value, Ignition Coil Assy.

1шт.

12

NSS

NOT SOLD SEPARAT

CABLE ASSY, distributor primary to coil, not serviced separately, order package 407487R1 or 70219C91

1шт.

13

536582R1

RETAINER, spark plug cable, 7 wire

1шт.

14

531981R1

RETAINER, spark plug cable, 2 wire

2шт.
