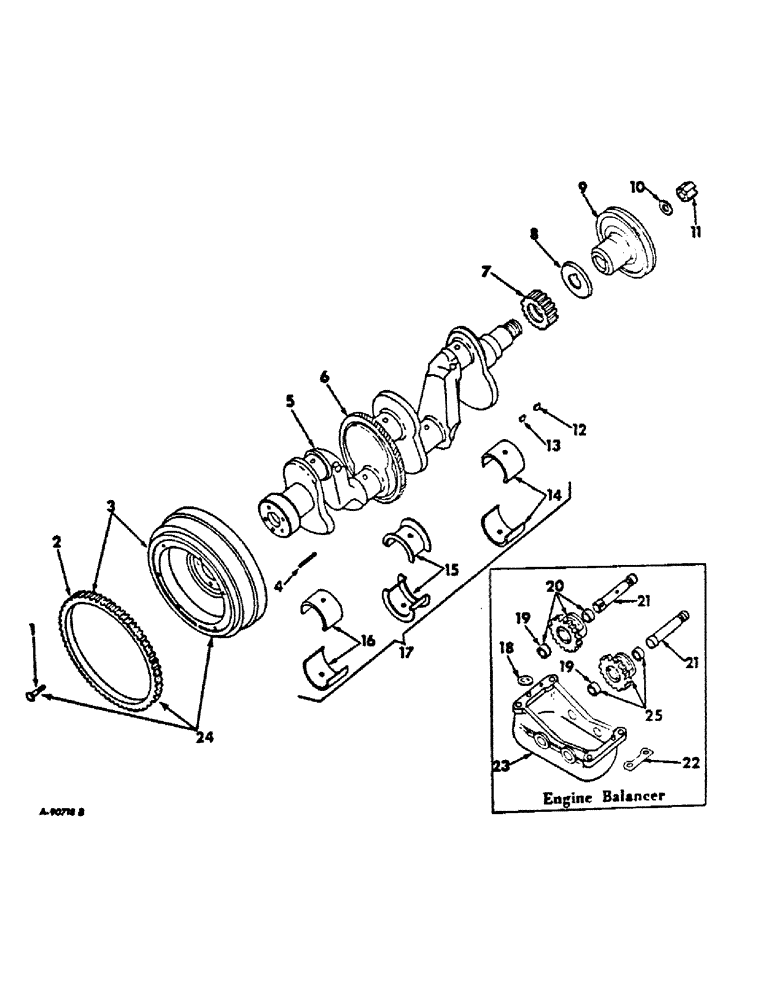

Запчасти Case IH C-175 (F-17) - CRANKSHAFT AND RELATED PARTS

1

601558C1

BOLT (SPREADER)

BOLT, 7/16-20 x 3 flywheel to crankshaft, 3514 tractors with synchromesh transmission

6шт.

1

601561C1

BOLT, 7/16-20 x 2-3/4, 3514 tractors with hydrostatic transmission, used w/flywheel 396468R21 on machines having engine serial no. 3194 and below

6шт.

1

332136R1

BOLT (SPREADER),7/16" - 20 x 2 1/4"

BOLT, flywheel mounting, 3514 tractors with hydrostatic transmission, used w/flywheel 532391R11 on machines having engine serial no. 3195 and above

1шт.

1

601669C1

BOLT, 7/16-20 x 2, 454, 464, 2400A, 2400B, 2405B, 2410B, 2412B and 3400A tractors

6шт.

2

396421R1

GEAR, RING

GEAR, flywheel ring, 133 T, 3514 tractors with synchromesh transmission with flywheel 396468R21

1шт.

2

405861R1

GEAR

flywheel ring, 159T, 454, 464, 2400A, 2400B, 2405B, 2410B, 2412B and 3400A tractors

1шт.

3

396419R91

FLYWHEEL

W/RING GEAR, 3514 tractors with synchromesh transmission

1шт.

3

396468R21

FLYWHEEL

W/RING GEAR, 3514 tractors with hydrostatic transmission, furnish one flywheel assy w/mtg bolts 537135R91 and one drive plate package 532249R91

1шт.

3

532391R11

FLYWHEEL W/RING GEAR, 3514 tractors with hydrostatic transmission, furnish one flywheel assy w/mtg bolts 537135R91

1шт.

3

405860R11

FLYWHEEL

W/RING GEAR, 454, 464, 2400A, 2400B, 2405B, 2410B, 2412B and 3400A tractors

1шт.

4

398047R1

PIN

flywheel to crankshaft dowel

1шт.

5

398043R92

CRANKSHAFT W/BEARING, std, order crankshaft 66596C91

1шт.

5

400342R91

CRANKSHAFT W/BEARINGS, std, order crankshaft 66596C91

1шт.

5

66596C91

CRANKSHAFT W/BEARINGS, std, on all machines except 3400A tractors furnish 66474C91 idler balance weight and 66475C91 driven balance weight

1шт.

Consists of (4) bearing 367408R11, (1) bearing 367276R91, (1) bearing 332267R91, (1) bearing 367285R91, (1) crankshaft (NSS), (1) gear 66478C1, (1) pin 398047R1

1шт.

6

398046R1

GEAR, crankshaft balancer drive, machines w/engine serial no. 1783 and below order gear 308398R1

1шт.

6

308398R1

GEAR, crankshaft balance drive, machines w/engine serial no. 1783 and below, used w/crankshaft assy, 398043R91

1шт.

6

531710R1

GEAR, crankshaft balancer drive, machines w/engine serial no., Serial Range: 1784-2606

1шт.

6

66478C1

GEAR

crankshaft balancer drive, machines w/engine serial no 2607 and above

1шт.

7

367272R1

PINION

GEAR, crankshaft

1шт.

8

717763R2

SLING, crankshaft gear oil

1шт.

9

400345R1

PULLEY, crankshaft, 375 windrowers

1шт.

9

398048R1

PULLEY

crankshaft, all machines except 375 windrowers

1шт.

10

70109R1

WASHER

starting crank nut

1шт.

11

425-1516

JAM NUT,Jam, 1"-14, G5

1/14 hex. jam crankshaft, replaces 23174V

1шт.

12

103462

KEY

3/16 x 1 Woodruff 13, pulley

1шт.

13

103462

KEY

3/16 x 1 Woodruff 13, crankshaft gear

1шт.

14

367276R91

BEARING LINER

BEARING ASSY, crankshaft front, 2 halves, std

1шт.

14

367300R91

CRANKSHAFT BEARING

BEARING ASSY, crankshaft front, 2 halves, .002 U/S

1шт.

14

376670R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .010 U/S

1шт.

14

376683R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .020 U/S

1шт.

14

367288R91

BEARING ASSY

ASSY, crankshaft front, 2 halves, .030 U/S

1шт.

15

332267R91

BEARING SET

BEARING ASSY, crankshaft intermediate rear, 2 halves, std

1шт.

15

332273R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .002 U/S

1шт.

15

332276R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves. .010 U/S

1шт.

15

332279R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .020 U/S

1шт.

15

332270R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .030 U/S

1шт.

16

367285R91

BEARING

ASSY, crankshaft rear, 2 halves, std

1шт.

16

367309R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .002 U/S

1шт.

16

376679R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .010 U/S

1шт.

16

376692R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .020 U/S

1шт.

16

367297R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .030 U/S

1шт.

17

(No longer available for service)

1шт.

18

398060R1

SHIM

engine balancer housing LH, all machines except 3400A tractors

1шт.

19

310384R1

BEARING

BUSHING, engine balancer weight, all machines except 3400A tractors

4шт.

20

398059R21

WEIGHT

ASSY, engine balancer idler, machines w/engine serial no. 2606 and below except 3400A tractors

1шт.

20

66474C91

WEIGHT ASSY, engine balancer idler, machines w/engine serial no. 2607 and above except 3400A tractors

1шт.

21

405855R1

PACKAGE

SHAFT, engine balancer weight, all machines except 3400A tractors

2шт.

19716R1

PIN,4.75mm OD x 44.45mm L, Coiled

2шт.

22

398061R1

SHIM

engine balancer housing RH, all machines except 3400A tractors

1шт.

23

398054R1

HOUSING ASSY, engine balancer, all machines except 3400A tractors

1шт.

398056R1

BOLT

engine balancer housing oil

1шт.

398057R1

BOLT, engine balancer housing

1шт.

398058R1

BOLT

engine balancer housing

1шт.

24

537135R91

PACKAGE, flywheel assy w/mtg bolts, 3514 tractors with hydrostatic transmission, consists of (1) flywheel (NSS), (1) gear 396421R1, (6) bolt 332136R1

1шт.

25

398059R21

WEIGHT

ASSY, engine balancer driven, machines w/engine serial no. 2606 and below except 3400A tractors

1шт.

25

66475C1

WEIGHT ASSY, engine balancer driven, machines w/engine serial no. 2607 and above except 3400A tractors

1шт.

532249R91

CLUTCH ASSEMBLY

PACKAGE, drive plate assy, 3514 tractors with hydrostatic transmission, consists of (1) plate (NSS), (6) screw 324711R1, (6) washer 615890C1, (1) instructions (NSS), (1) lubricant (NSS)

1шт.
