(F-16[A]) - CRANKCASE OIL PAN, 454, 464, 2400A, 2400B, 2405B, 2410B AND 24128 TRACTORS

Запчасти Case IH C-175 (F-16[A]) - CRANKCASE OIL PAN, 454, 464, 2400A, 2400B, 2405B, 2410B AND 24128 TRACTORS

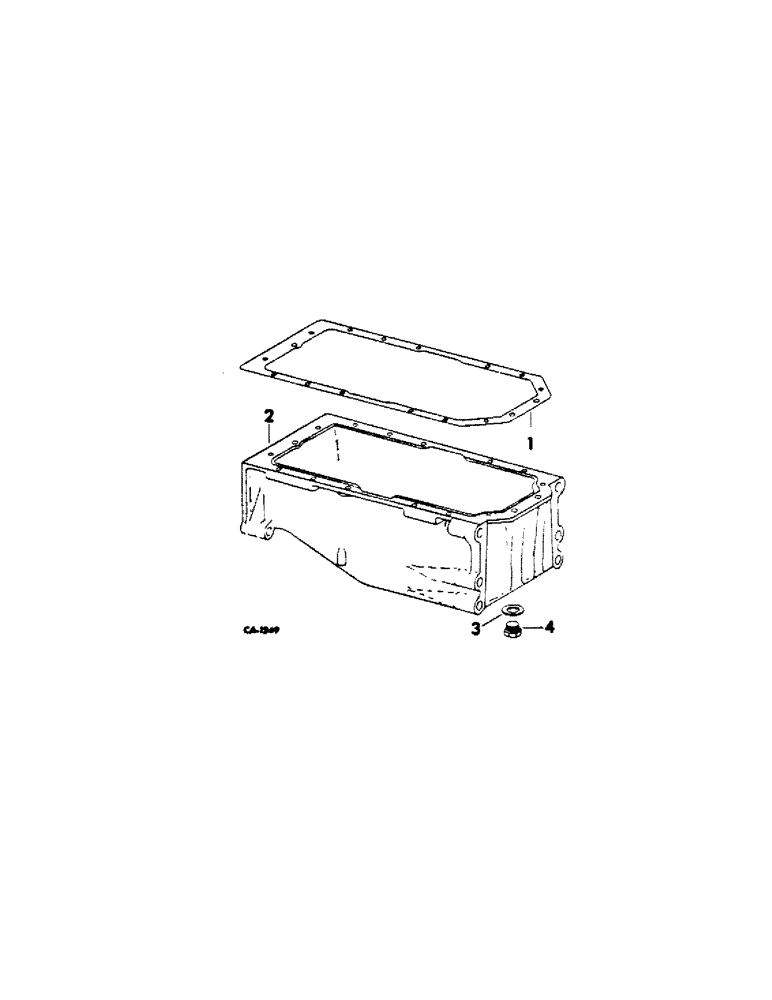

Схема запчастей Case IH C-175 - (F-16[A]) - CRANKCASE OIL PAN, 454, 464, 2400A, 2400B, 2405B, 2410B AND 24128 TRACTORS
1
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

405858R1

GASKET

oil pan

1шт.

2

405857R1

PAN

crankcase oil

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/8 hex-hd cap

9шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

17шт.

3

3405H

GASKET

drain plug

1шт.

4

445096

PLUG

crankcase oil pan drain

1шт.
