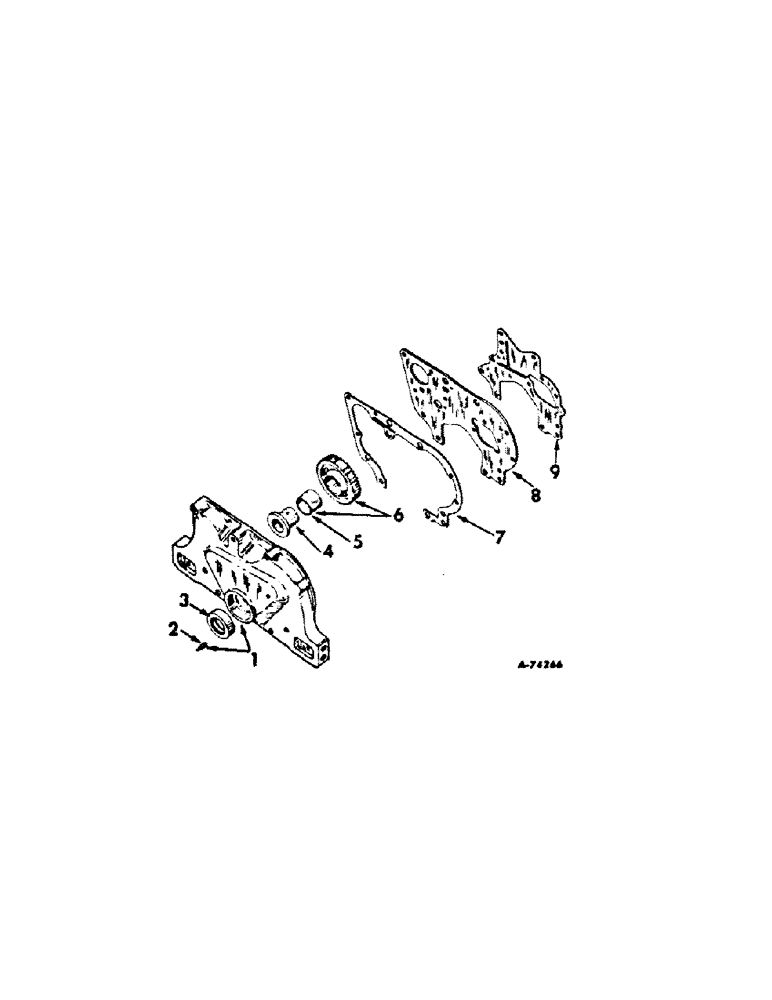

Запчасти Case IH C-175 (F-13[A]) - CRANKCASE FRONT COVER AND IDLER GEAR, 2410B AND 2412B TRACTORS

1

384488R31

COVER

ASSY, crankcase front, 2410B and 2412B tractors

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

2

367572R1

INDICATOR

POINTER, timing

2шт.

3

391976R91

OIL SEAL

crankshaft oil

1шт.

4

530973R1

HOUSING

HUB, idler gear

1шт.

179887

CABLE

1шт.

615090R1

WASHER

17/32 x 2 x 11 ga

1шт.

5

398034R1

BUSHING

idler gear

1шт.

6

398032R1

PINION

GEAR ASSEMBLY, idler

1шт.

7

398085R1

GASKET

front cover

1шт.

8

398023R1

PLATE, crankcase front

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

9

398024R1

GASKET

crankcase front plate

1шт.
