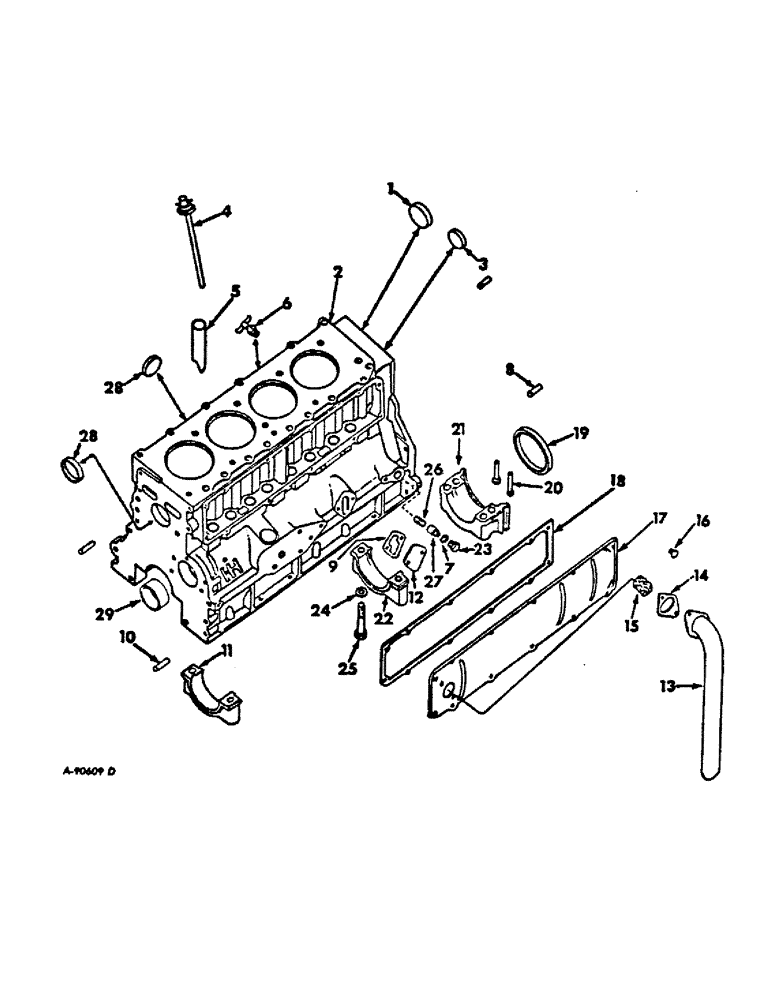

Запчасти Case IH C-175 (F-11) - CRANKCASE AND RELATED PARTS
№
Артикул
Название
Примечание
Количество
1
20840R1
PLUG,Cup, 2", Stainless
stainless steel cup, replaces 405634R1
1шт.
2
538624R92
CRANKCASE
W/PISTONS AND RINGS, will work for 400334R92
1шт.
Consists of (1) crankcase (NSS), (2) plug 444852, (1) plug 445671, (2) plug 444782, (5) plug 22263R1, (1) plug 20840R1, (4) plug (NSS), (3) bushing (NSS), (2) dowel 371699R2, (1) pin 141285, (1) pin 141223, (3) cap (NSS), (8) bolt 70133R1, (8) washer 58516H, (2) plug 444654, (4) ring 539379R1, (4) piston (NSS), (4) pin 70014R1, (8) retainer 19517D, (4) ring (NSS), (4) ring (NSS), (4) ring
1шт.
445671
PLUG,Sq Hd, 1/8"-27 NPTF
1/8-27 auto sq-hd pipe
2шт.
444782
PLUG,Sq Soc, 3/8"-18 NPTF
3/8-18 automotive sq-soc pipe
2шт.
444852
TERMINAL CONNECTOR,16 - 20mm
PLUG, 1/8-27 auto hex-soc-hd drain
2шт.
444654
PLUG,Sq Soc, 1/4"-18 NPTF
1/4-18 auto hex-hd pipe
1шт.
21748VA
STUD, crankcase, 375 windrowers
2шт.
1887Y
STUD, crankcase, all machines except 375 windrowers
1шт.
292947C1
STUD, crankcase, all machines except 375 windrowers
1шт.
271556
WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5
SCREW, 5/8-11 x 1-1/4 hex-hd cap, balancer oil feed hole plug
1шт.
3
22263R1
PLUG
core hole cup
1шт.
4
403065R1
GAUGE ASSY, oil level, 3514 tractors
1шт.
4
405875R1
GAUGE
ASSY, oil level, 454, 464, 2400A, 2400B and 2405B tractors
1шт.
4
537372R1
GAUGE
ASSY, oil level, 2410B, 2412B tractors and 2400A tractors w/cast I beam front axle
1шт.
4
531029R1
GAUGE
ASSY, oil level, 3400A tractors
1шт.
5
378102R1
TUBE, oil filler, 454, 464, 2400A, 2400B, 2405B tractors and 3514 tractors with serial no. and below 1.187" OD, 3.66" Length
1шт.
5
381418R1
TUBE
oil filler, 2410B, 2412B, 3400A tractors, 3514 tractors w/serial no. and above and 2400A tractors w/cast I beam front axle
1шт.
6
103647
VALVE
COCK, 1/4 drain
1шт.
7
399128R1
GASKET
oil pressure relief valve
1шт.
8
371699R2
STUD
DOWEL, engine rear support
2шт.
8
376353R1
DOWEL, engine rear support, .030 O/S
2шт.
9
532496R1
GASKET
fuel pump pad cover, replaces 612293C1
1шт.
10
NLS
NO LONGER SERVICED
PIN, 1/2 x 1-1/4 dowel
1шт.
11
306671R1
CAP, crankshaft front bearing, partially finished see service manual
1шт.
12
356243R1
COVER, fuel pump pad, 375 windrowers and 3514 tractors
1шт.
179814
SPACER
2шт.
13
403554R1
PIPE ASSY, breather, 375 windrowers
1шт.
13
398041R2
PIPE ASSY, breather, all machines except 375 windrowers
1шт.
375612R91
CAPSCREW,1/4" - 20 x 1/2"
SCREW W/WASHER, 1/4-20 x 1/2 slt-rd-hd
2шт.
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
1шт.
95-11034
WASHER,1/4"
11/32 x 11/16 x .065
1шт.
14
375783R3
GASKET
breather pipe
1шт.
15
386069R1
ELEMENT, breather pipe, fits inside breather pipe
1шт.
15
349363R1
FILTER CARTRIDGE
ELEMENT, breather pipe, used w/valve cover, 398037R2
1шт.
16
375612R91
CAPSCREW,1/4" - 20 x 1/2"
SCREW W/WASHER, 1/4-20 x 1/2 slt-truss-hd
12шт.
17
398037R2
COVER
W/ELEMENT, valve push rod, when cover is ordered remove old element from breather pipe if so equipped
1шт.
18
398040R2
GASKET
valve push rod cover, will work for 398040R1
1шт.
19
538983R1
OIL SEAL,99.44mm ID x 116.03mm OD x 9.53mm Thk
crankshaft rear oil, replaces 343180R91 and 403066R91
1шт.
20
310665R1
PLUG
rear bearing cap filler
2шт.
21
306674R1
CAP, crankshaft rear bearing, partially finished see service manual
1шт.
22
306673R1
CYLINDER END CAP
CAP, crankshaft center bearing, partially finished see service manual
1шт.
23
399129R1
PLUG
oil pressure relief valve
1шт.
24
58516H
WASHER,17/32" x 1 1/16" x .095", HDN
bearing cap bolt
8шт.
25
70133R1
BOLT
BOLT, crankshaft bearing cap
8шт.
26
399126R1
SPRING
oil pressure relief valve
1шт.
27
399127R1
VALVE
oil pressure relief
1шт.
28
22263R1
PLUG
1-5/8 cup
4шт.
29
398019R1
BEARING,53.22mm ID x 56.52mm OD x 28.7mm W
BUSHING, camshaft front
1шт.
29
70261R2
BUSHING,23.02mm ID x 55.92mm OD x 27.23mm L
camshaft center
1шт.
29
70262R1
CAMSHAFT BEARING,37.69mm ID x 41.45mm OD x 33.58mm W
BUSHING, camshaft rear
1шт.
Выбрано товаров: 53
