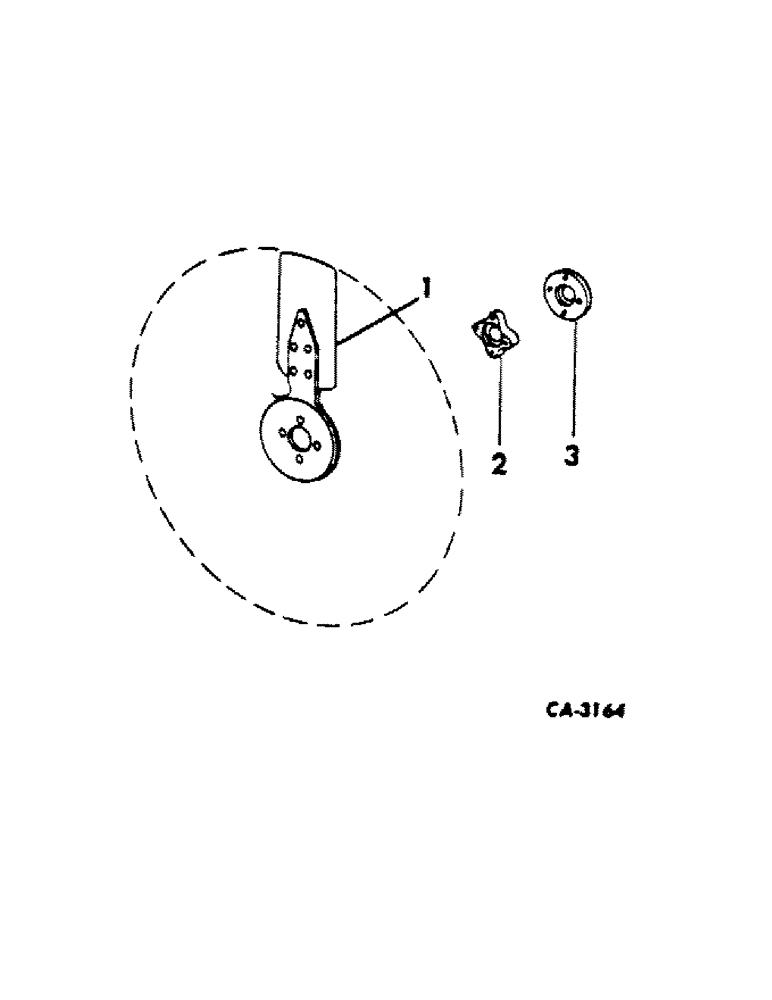

Запчасти Case IH C-175 (F-10) - FAN BLADES AND SPACER

1

370700R91

BLADE

ASSY, fan, 464, 2400B, 2405B, 2410B, 2412B, 3400A tractors, 454 tractors w/hydrostatic transmission and 2400A tractors w/synchromatic transmission

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, 1/4-28 x 5/8 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

1

370700R91

BLADE

ASSY, fan, 375 windrower

1шт.

181319

BOLT,Hex, 1/4" - 28 x 1 1/2", Gr 5

SCREW, 1/4-20 x 1-1/2 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

1

371633R91

FAN

BLADE ASSY, fan, will work for 389925R91, 3514 tractors with synchromesh transmission

1шт.

443060

FUSE BOX

SCREW, 1/4-28 x 3 1/4 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

1

389926R91

BLADE ASSY, fan, 3514 tractors with hydrostatic transmission

1шт.

433065

BOLT,Hex, 1/4" - 28 x 3 1/2", Gr 5

1/4-28 x 3-1/2 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

1

86897R91

FAN

BLADE ASSY, fan will work for 82797R91, International 454 tractors with synchromech transmission

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, 1/4-28 x 5/8 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

(Not used in this application)

1шт.

3

369289R1

SPACER, fan, 375 windrower

1шт.

3

316476R1

SPACER, fan, 3514 tractors

1шт.

403303R1

V-BELT,0.38" W

Fan, water pump and alternator, 3514 tractors 0.38" W

1шт.

532030R2

V-BELT,0.38" W x 51.95" L

Fan, Water pump and alternator, All machines except 3514 tractors and 375 windrowers 0.38" W x 51.95" L

1шт.

596313R1

V-BELT,0.38" W x 44.50" L

Fan, water pump and alternator, 375 windrowers 0.38" W x 44.50" L

1шт.
