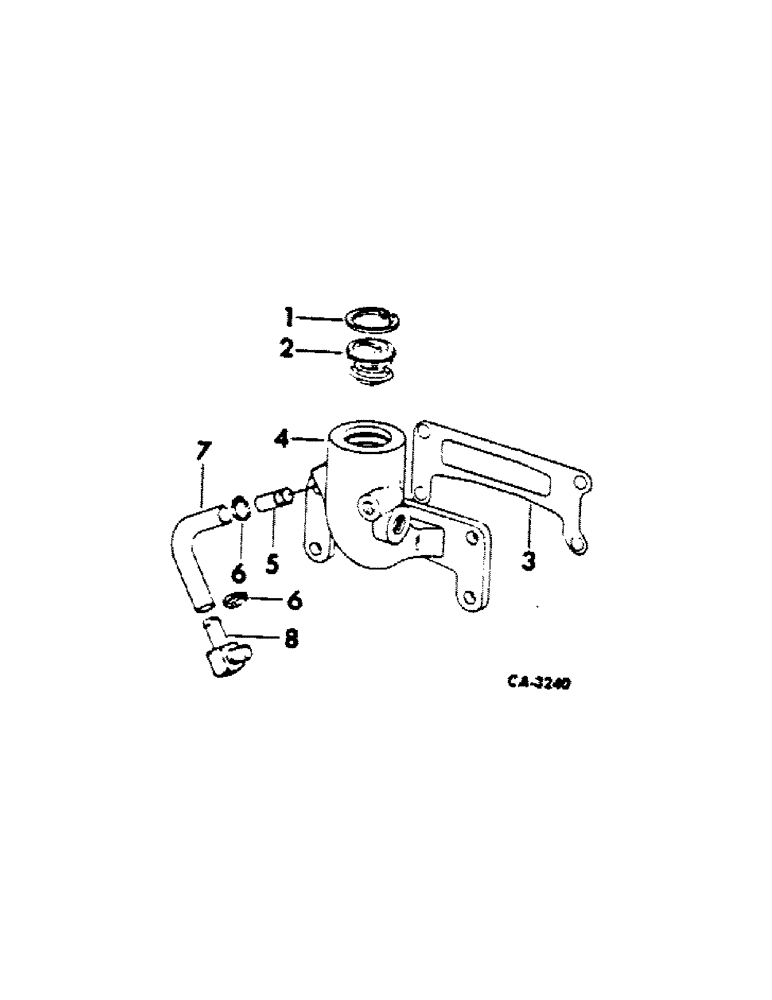

Запчасти Case IH C-175 (F-09) - THERMOSTAT AND HOUSING, 375 WINDROWERS

1

377180R1

RING

thermostat, machines w/engine serial no. 1281 and below

1шт.

1

23913R1

SNAP RING,1.625", Int, #162

Ring, Snap, , thermostat, machines w/engine serial no. 1282 and above 1.625", Int, #162

1шт.

298387R1

RING

O-RING, 1-7/16 x 1-5/8 x 3/32, used w/thermostat, 377156R91

1шт.

2

107596C1

THERMOSTAT

180 deg, replaces 377156R91 by also ordering ring, 23913R1 and washer, 107593C1

1шт.

107593C1

WASHER

WASHER, thermostat, used w/thermostat, 107596C1

1шт.

3

397971R1

GASKET

water outlet elbow

1шт.

4

528246R1

ELBOW, water outlet, on orders for 400333R1 also furnish thermostat ring 23913R1 and o-ring 298387R1

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

5

368556R1

FITTING

PIPE, water by-pass

1шт.

6

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, water by-pass pipe hose

2шт.

7

404776R1

HOSE, water by-pass pipe

1шт.

8

864448R1

ELBOW, water by-pass

1шт.
