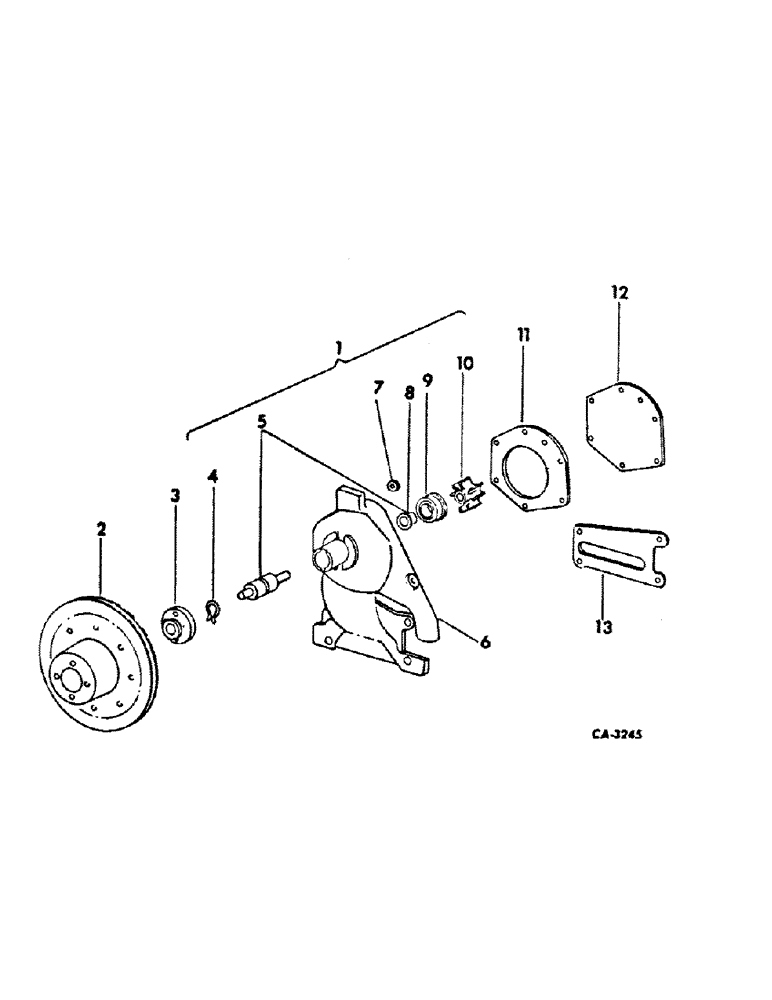

Запчасти Case IH C-175 (F-08) - WATER PUMP, ALL MACHINES EXCEPT 375 WINDROWERS

1

400677R92

PUMP

ASSY, water, consists of (1) body, (1) bearing 369147R91, (1) seal 73296R93, (1) impeller 367689R1, (1) slinger 71351R1, (1) retainer 102069H

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

103026

NUT,3/8"-24, G5

2шт.

103121

SPARE PART

WASHER, 3/8 med lock

4шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 CI auto sq-hd pipe heater inlet

1шт.

2

254954C92

PULLEY

water pump, 3514 tractors

1шт.

2

527469R1

PULLEY

water pump, all machines except 3514 tractors

1шт.

3

368501R2

HUB CAP

HUB, pulley

1шт.

4

102069H

RING

front snap

1шт.

5

369147R91

SHAFT

BEARING W/SLINGER, water pump, will work for ST644

1шт.

6

NSS

NOT SOLD SEPARAT

BODY, water pump, not serviced separately, order pump assy

1шт.

7

402928R1

SEAL

water by-pass, not part of pump assy

1шт.

8

71351R1

SLINGER

water pump

1шт.

9

73296R93

SEAL

ASSY, water pump

1шт.

10

367689R1

IMPELLER

water pump

1шт.

11

397968R2

GASKET

water pump body (Replaces 397966R1)

1шт.

12

397967R1

PLATE

water pump

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

397966R2

GASKET

water pump plate (Replaces 397968R1)

1шт.
