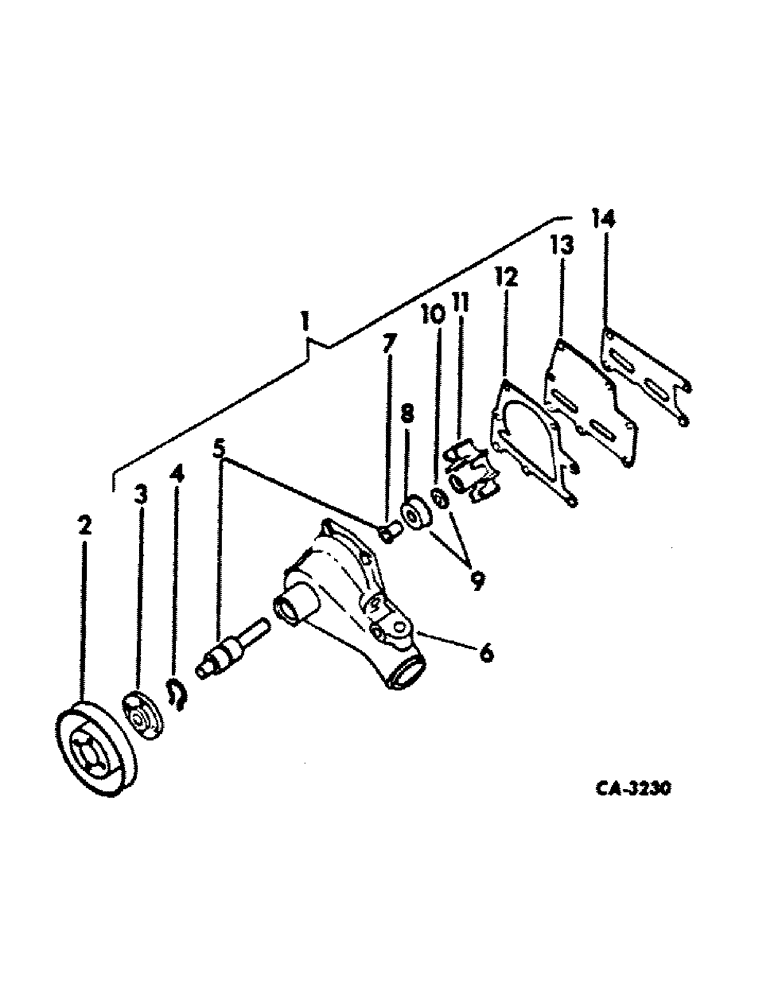

Запчасти Case IH C-175 (F-07) - WATER PUMP, 375 WINDROWERS

1

601816C92

PUMP

PUMP ASSY, water

1шт.

Consists of (1) body 318118R4 (NSS), (1) gasket 69674R1, (1) hub 368501R2, (1) impeller 387931R1, (1) plate 69675R1, (2) plug 438159, (1) plug 444660, (1) plug 444788, (1) seal package 701331C93, (1) ring 102069H, (1) shaft and brg assy 376602R91

1шт.

1

749170C91

REMAN-WATER PUMP

Remanufactured, Water Pump

1шт.

1

1928129C1

CORE-WATER PUMP

Return Part Number

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/2", G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

2

367688R1

PULLEY

PULLEY, water pump

1шт.

3

368501R2

HUB CAP

HUB, pulley

1шт.

4

102069H

RING

RING, bearing retainer, used only w/pump body, 318118R3 w/slot for ring

1шт.

4

327316R1

SNAP RING,1.188", Int, #118

Ring, Snap, , brg, used with pump body, 318118R4 without slot for ring 1.188", Int, #118

1шт.

5

376602R91

BEARING ASSY,30mm OD x 110.69mm L

SHAFT & BEARING ASSY, water pump

1шт.

6

NSS

NOT SOLD SEPARAT

BODY W/PLUG ASSY, water pump, not serviced separately, order pump assy

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 CI auto sq-soc-hd

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , MI auto pipe, Optional w/438159 Sq Hd, 1/2"-14 NPTF

3шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 CI auto sq-hd pipe, optional w/444587

3шт.

7

71351R1

SLINGER

SLINGER, water pump

1шт.

8

SEAL, water pump, order water pump seal package 687161C91

1шт.

9

687161C91

PACKING

PACKAGE, water pump seal, replaces 701331C93, consists of (1) seal (NSS), (1) seat 265164C91

1шт.

10

265164C91

PACKING RING

SEAT, water pump

1шт.

11

387931R1

TORQ CONV IMPELLER

IMPELLER, water pump, also order seal package, 687161C91

1шт.

12

69674R1

GASKET

GASKET, water pump plate

1шт.

13

69675R1

PLATE

PLATE, water pump

1шт.

14

69676R1

GASKET

GASKET, water pump

1шт.

374544R94

KIT

PACKAGE, water pump service, consists of (1) impeller 387931R1, (1) retainer and seat 684432C1, (1) seal assy 73296R93, (1) shaft and brg 376602R91, (1) slinger 71351R1, (1) retainer 102069H, (1) ring 327316R1, (1) gasket, 69674R1, (1) gasket 69676R1

1шт.
