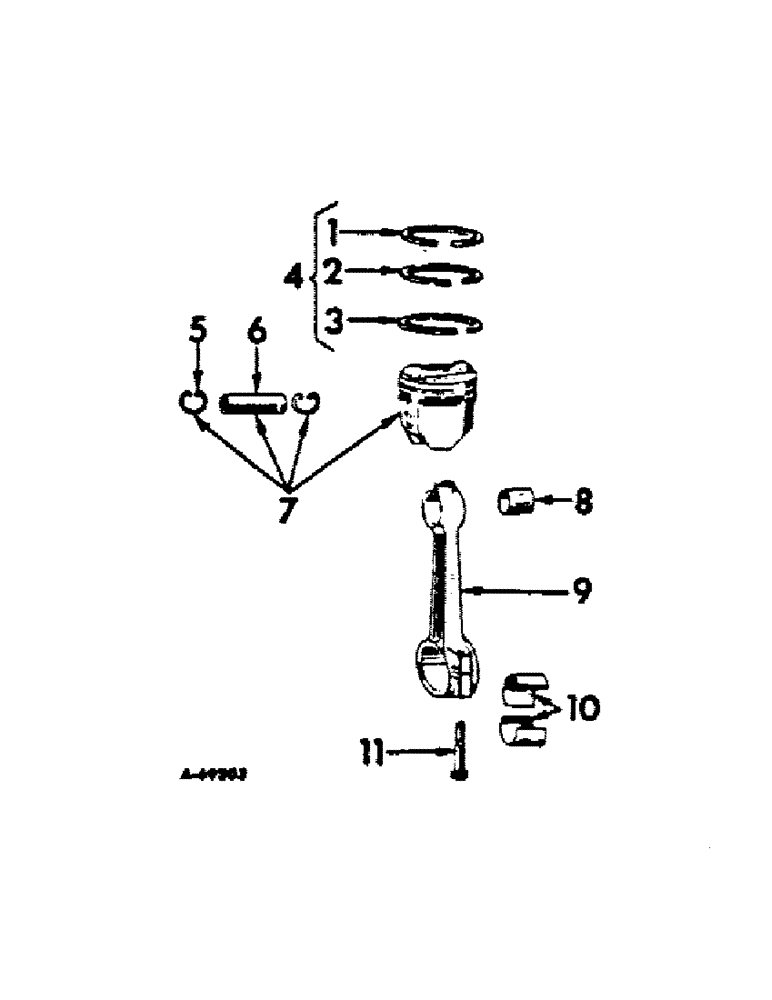

Запчасти Case IH C-157 (J-05) - CONNECTING RODS AND PISTONS
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
RING, compression piston, top or first groove, not serviced separately, order piston ring set
4шт.
2
NSS
NOT SOLD SEPARAT
RING, compression piston, second groove, not serviced separately, order piston ring set
4шт.
3
NSS
NOT SOLD SEPARAT
RING, oil regulator piston, third or bottom groove, not serviced separately, order piston ring set
4шт.
4
539363R1
SET
RING SET, piston, consists of two compression and one oil regulating ring, std and .010 O/S
4шт.
4
539364R1
SET
RING SET, piston, consists of two compression and one oil regulating ring, .020 O/S
4шт.
4
539365R1
PISTON RING SET
RING SET, piston, consists of two compression and one oil regulating ring, .030 O/S
4шт.
4
539366R1
SET
RING SET, piston, consists of two compression and one oil regulating ring, .040 O/S
4шт.
5
367798R1
RING, PISTON
SPRING, piston pin retainer
8шт.
6
367797R1
PIN,21.83mm OD x 69.93mm L
piston
4шт.
6
367862R1
PIN
piston .005 O/S
4шт.
7
528805R21
PISTON
ASSY, std
4шт.
7
531796R11
PISTON ASSY, .010 O/S
4шт.
7
533319R11
PISTON
ASSY, .020 O/S
4шт.
7
533320R11
PISTON
ASSY, .030 O/S
4шт.
7
533321R11
PISTON
ASSY, .040 O/S
4шт.
7
537763R11
PISTON ASSY, std, high altitude
4шт.
7
537764R11
PISTON ASSY, .010 O/S, high altitude
4шт.
7
537765R11
PISTON ASSY, .020 O/S, high altitude
4шт.
7
537766R11
PISTON ASSY, .030 O/S, high altitude
4шт.
7
537767R11
PISTON ASSY, .040 O/S, high altitude
4шт.
8
367775R1
BUSHING,21.36mm ID x 23.36mm OD x 29.97mm L
piston pin
4шт.
9
375595R11
ROD
ASSY, connecting
4шт.
10
375723R11
BEARING LINER
BEARING ASSY, connecting rod, std
4шт.
10
375725R11
BEARING ASSY
BEARING ASSY, connecting rod .002 U/S
4шт.
10
376656R11
BEARING ASSY
BEARING ASSY, connecting rod .010 U/S
4шт.
10
376658R11
BEARING ASSY
BEARING ASSY, connecting rod .020 U/S
4шт.
10
375724R11
BEARING ASSY
BEARING ASSY, connecting rod .030 U/S
4шт.
11
375732R1
BOLT,Hex, 3/8" - 24 x 2"
connecting rod
8шт.
Выбрано товаров: 28
