Запчасти Case IH C-157 (J-22) - FUEL PUMP AND CONNECTIONS

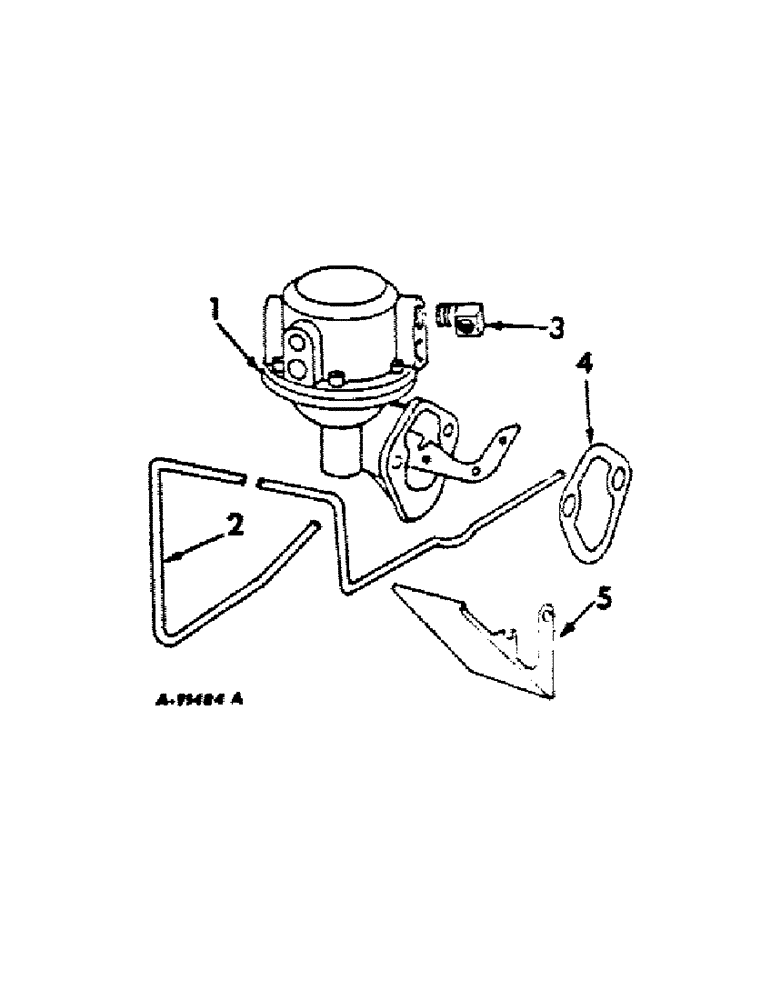

Схема запчастей Case IH C-157 - (J-22) - FUEL PUMP AND CONNECTIONS
2
4
3
1
5

Артикул

Название

Примечание

Количество

1

404769R91

KIT

PUMP ASSY, fuel

1шт.

1

404769R91R

REMAN-FUEL LIFT PUMP

C-157, C-175, 4 CYL. LP & GAS ENGINE & C-200, 4 CYL. GAS ENGINE

1шт.

1

404769R91C

CORE-FUEL LIFT PUMP

Return Number

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .051

2шт.

2

404767R1

TUBE

ASSY, fuel, Serial Range: pump-carburetor

1шт.

3

222-1024

ELBOW,90 Degree, 1/2"-20 Inv Fl x 1/8" NPT

1/8-27 90 deg inverted tube

1шт.

4

532496R1

GASKET

fuel pump

1шт.

5

405874R1

PAN, fuel pump drip

1шт.

71369C1

SPRING, fuel pump, this spring is only to be used on tractors operating on steep slopes

1шт.

Выбрано товаров: 11
