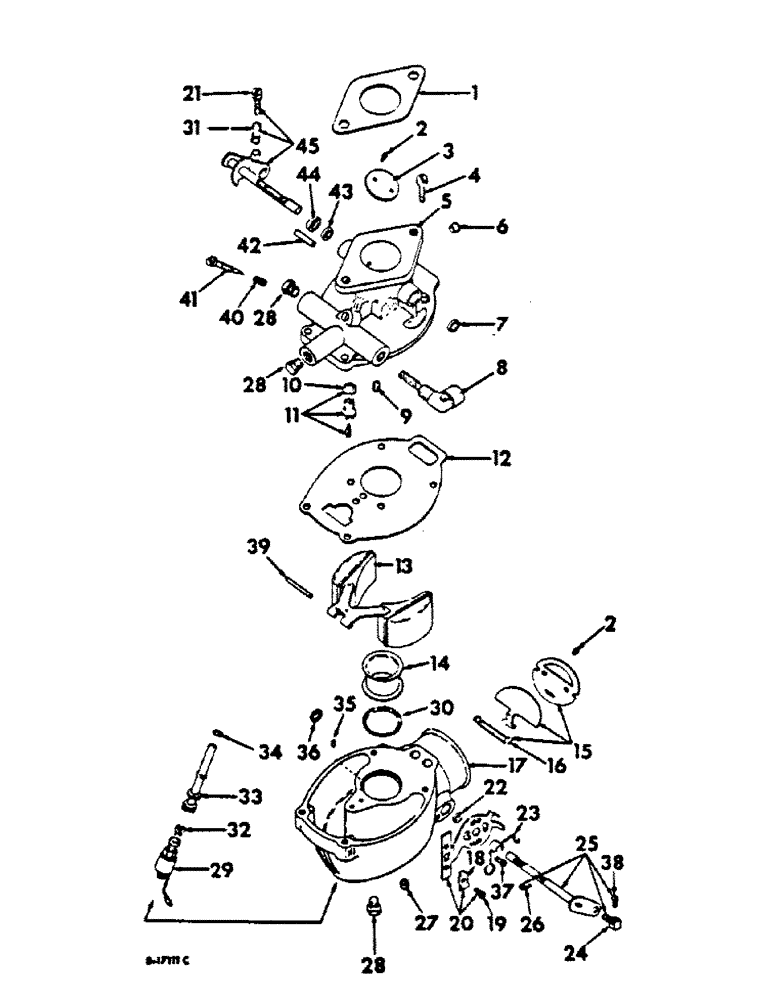

Запчасти Case IH C-157 (J-21) - CARBURETOR

398069R92

CARBURETOR

ASSY, Marvel Schebler, replaces 405873R91

1шт.

1

530681R1

GASKET

carburetor

1шт.

Not part of carburetor assembly.

1шт.

2

454579

PULLEY

choke and throttle plate

4шт.

3

381948R1

VALVE

PLATE, throttle

1шт.

4

19542R1

SCREW, throttle, Serial Range: body-bowl

4шт.

5

NS

NOT SERVICED

BODY ASSY, throttle, not serviced

1шт.

6

373400R1

PLUG, idle drilling

1шт.

7

405920R1

PLUG

CUP, throttle shaft

1шт.

8

400423R1

ELBOW

STRAINER ASSY, gasoline

1шт.

9

69929D

JET, idling

1шт.

10

NSS

NOT SOLD SEPARAT

GASKET, float valve seat, part of package 400429R92

1шт.

11

392096R91

VALVE

ASSY, float

1шт.

12

NSS

NOT SOLD SEPARAT

GASKET, throttle body to bowl, part of package 400429R92

1шт.

13

381962R1

FLOAT

ASSY

1шт.

13

381962R1GV

FLOAT

Value, Float

1шт.

14

405925R1

VENTURI

7/8 in., used w/carburetor 405873R91

1шт.

14

405922R1

VENTURI

13/16, used w/carburetor 398069R92

1шт.

15

381960R91

VALVE

PLATE ASSY, choke

1шт.

B51702

SCREW,#6 - 32 x 1/4"

w/ext tooth lockwasher 6-32 x 1/2 C-Z slt-pan-hd mach

2шт.

16

381961R1

SPRING

choke plate

1шт.

17

NS

NOT SERVICED

BOWL ASSY, fuel, not serviced

1шт.

18

373373R1

CLIP

choke valve bracket

1шт.

19

20832R91

SCREW, w/spring lock washer 8-32 x 1/2 C-Z slt-hex-hd mach

1шт.

20

373372R91

BRACKET

ASSY, choke valve

1шт.

21

131979

SCREW,Sl Fil Hd, #8 - 32 x 3/4"

throttle stop

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL, choke shaft, part of package 400429R92

1шт.

23

373369R1

SPRING

air shutter return

1шт.

24

3734015R1

SWIVEL, choke shaft

1шт.

25

403355R91

LEVER

SHAFT ASSY, choke

1шт.

26

373406R1

SPLIT PIN

SPRING, swivel retainer

1шт.

27

373387R1

FILTER

STRAINER, bowl

1шт.

28

FOR444613

PLUG

drain, 1 used for drain plug, 2 used for fuel inlet

1шт.

29

71358C91

PACKAGE

VALVE, solenoid fuel shut-off

1шт.

Not part of carburetor assembly.

1шт.

107609C1

WASHER

GASKET, fuel shut-off, will work for 527842R1

1шт.

30

400422R1

RETAINER

Venturi

1шт.

31

69953D

SPRING

throttle stop screw

1шт.

32

388587R1

JET

main, 232CC

1шт.

Not part of carburetor assembly.

1шт.

33

405923R1

NOZZLE INJECTION

NOZZLE

1шт.

34

NSS

NOT SOLD SEPARAT

GASKET, main nozzle, part of package 400429R92

1шт.

35

373383R1

BUSHING

BLEED, main air

1шт.

36

373403R1

PLUG

CUP, choke shaft

1шт.

37

453666

SCREW, choke bracket

1шт.

38

455956

SCREW, choke swivel 8-32 x 5/16 C-Z slt-hex-hd mach

1шт.

39

381963R1

AXLE

float

1шт.

40

69954D

SPRING

idle adjusting screw

1шт.

41

69923D

SCREW

idle adjusting

1шт.

42

533349R1

PIN, throttle stop

1шт.

43

527842R1

GASKET

fuel shut-off

1шт.

44

NSS

NOT SOLD SEPARAT

RETAINER, throttle shaft packing, part of package 400429R92

1шт.

45

400418R91

SHAFT

ASSY, throttle

1шт.

370535R1

CLIP

carburetor solenoid wire

1шт.

405924R91

KIT

carburetor repair, consists of ref nos 2, 7, 9, 11, 21, 31, 39, 40, 41, 45 and gasket package 400429R92

1шт.

400429R93

PACKAGE

GASKET SET, carburetor, will work for 400429R92, consists of gaskets, float valve gasket, gasket, main nozzle, gasket, throttle body to bowl, gasket, fuel shut-off, seal, choke shaft, seal, throttle shaft

2шт.
