(J-19[A]) - DISTRIBUTOR DRIVE

Запчасти Case IH C-157 (J-19[A]) - DISTRIBUTOR DRIVE

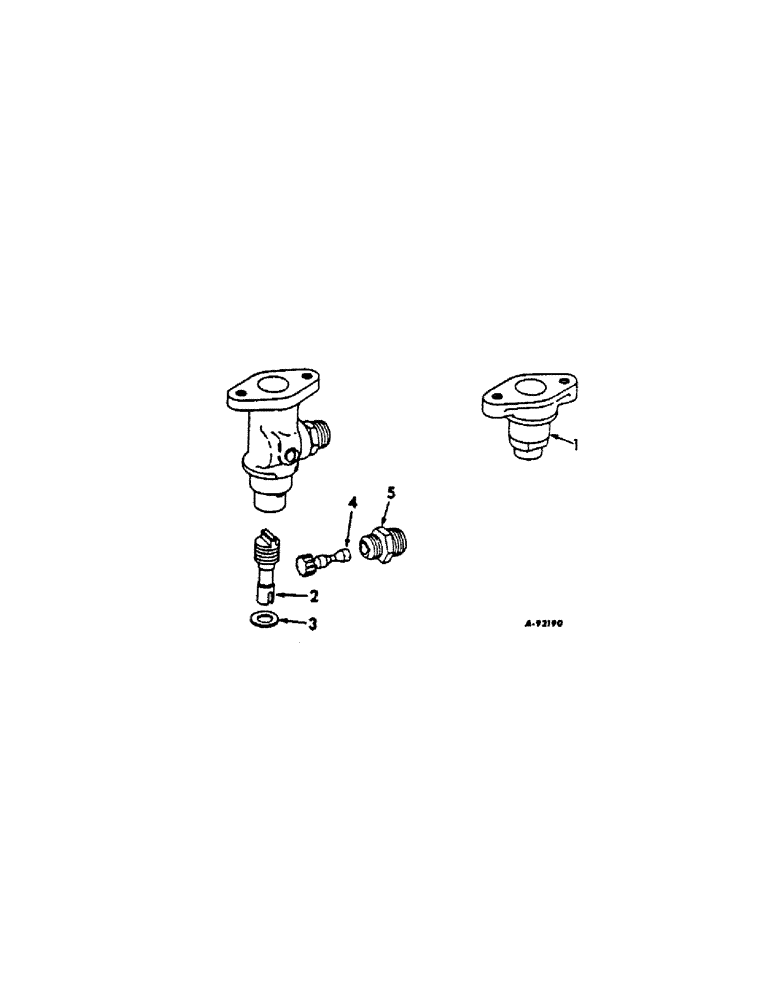

Схема запчастей Case IH C-157 - (J-19[A]) - DISTRIBUTOR DRIVE
5
1
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

398088R91

DRIVE ASSY, distributor and tachometer plug, 1/8 C-Z slt-hdls pipe

1шт.

1

367513R2

ADAPTER

distributor mtg, 4500B fork lifts

1шт.

2

398905R1

SHAFT

distributor and tachometer

1шт.

3

368054R1

THRUST WASHER

drive shaft thrust

1шт.

4

368245R12

PINION

GEAR ASSY, tachometer drive

1шт.

5

368246R1

CONNECTION

HOUSING, tachometer connection

1шт.
