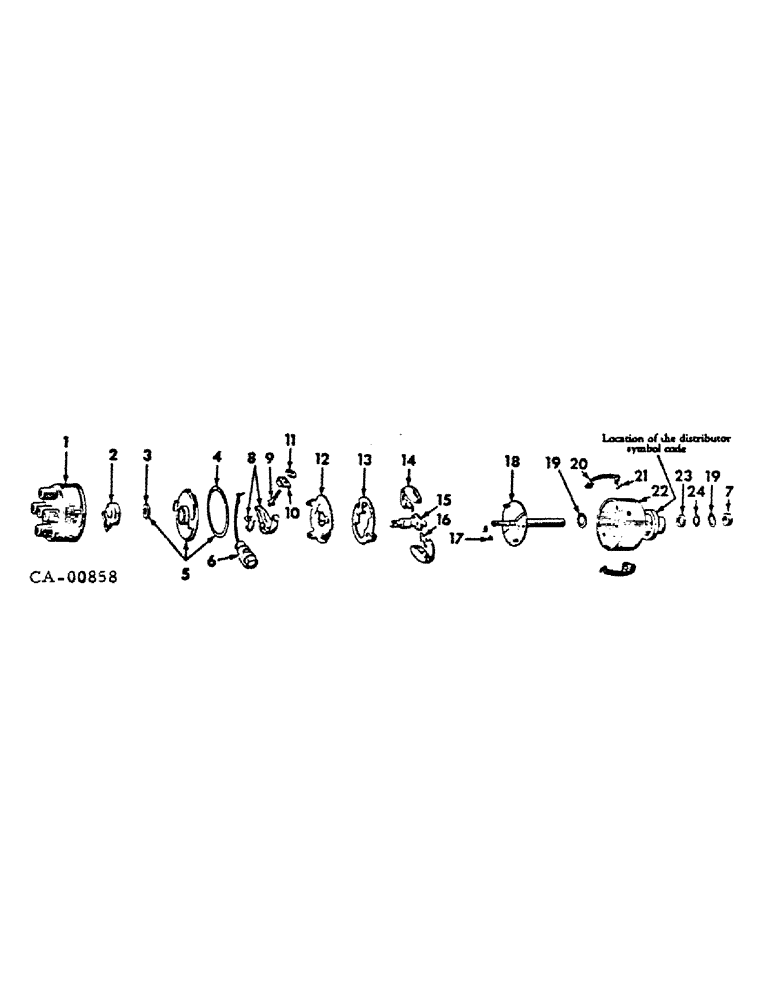

Запчасти Case IH C-157 (J-18) - DISTRIBUTOR

534444R91

DISTRIBUTOR ASSY, Prestolite, optional w/1112477, furnish 534446R91

1шт.

1

351693R92

DISTRIBUTOR,Cap

CAP ASSY, distributor

1шт.

2

353896R91

ROTOR ASSY.

ROTOR ASSY, distributor

1шт.

3

353901R2

FELT SEAL

FELT, breaker cover seal

1шт.

4

384830R1

GASKET

breaker cover

1шт.

5

384831R91

COVER

COMPLETE, breaker

1шт.

5

384831R91GV

COVER

Value, Breaker Cover

1шт.

6

353903R92

CONDENSER

ASSY

1шт.

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

8-32 x 3/16 CD or zn-pltd slt-fil-hd mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

7

529950R1

COLLAR, distributor shaft

1шт.

354552R1

HARDWARE

PIN, distributor gear

1шт.

8

372951R91

SCREW,POINTED

PACKAGE, breaker point set

1шт.

8

372951R91GV

SET

Value, Pointed Screw

1шт.

9

353907R1

STUD

SCREW, terminal

1шт.

120622

NUT,#8-32

3шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

3шт.

10

353906R1

PLUG

INSULATOR, spring anchor terminal

1шт.

11

251538R1

WASHER

terminal insulating

1шт.

12

372868R11

RETAINER

PLATE ASSY, breaker

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

8-32 x 3/8 CD or zn-pltd slt-rd-hd mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

8-32 x 3/16 C-Z slt-pan hd mach

1шт.

13

353920R1

GUARD

governor weight

1шт.

131954

SCREW,Sl Fil Hd, #8 - 32 x 1/4"

8-32 x 1/4 CD or zn-pltd slt-fil-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

14

353917R91

ARM

ASSY, weight

2шт.

15

355725R91

CAM, w/felt

1шт.

355460R1

FELT SEAL

FELT, cam oil hole

1шт.

16

381691R91

PACKAGE

governor springs

1шт.

17

352293R1

SHIM

SPACER, weight arm

4шт.

18

534445R1

SHAFT ASSY, dist, CW, 20 deg adv

1шт.

19

35229R1

WASHER, distributor thrust

2шт.

20

353894R1

VALVE SPRING

SPRING, distributor cap

2шт.

21

353895R1

SUPPORT

distributor cap spring

2шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

8-32 x 3/8 CD or zn-pltd slt-rd-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

21394D

WASHER

stationary point and terminal

3шт.

22

353898R11

HOUSING

w/seal

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

1/8 CD or zn-pltd slt-hdls pipe

1шт.

23

353899R1

STOP

RETAINER, distributor shaft oil seal

1шт.

24

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32

1шт.

373577R91

KIT

PACKAGE, distributor shaft bushing service, consists of (1) bushing 353921R1

1шт.
