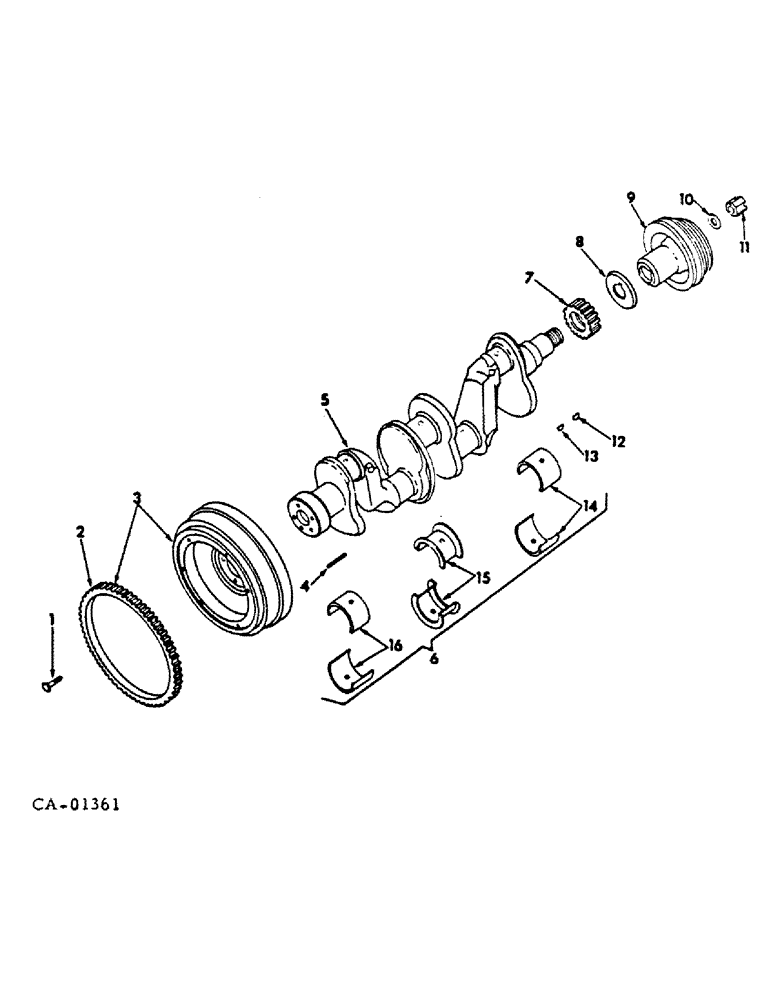

Запчасти Case IH C-157 (J-12) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

601669C1

BOLT, 7/16-20 x 2

6шт.

2

405861R1

GEAR

ring, 159T

1шт.

3

405860R11

FLYWHEEL

w/ring gear

1шт.

4

398047R1

PIN

flywheel to crankshaft dowel

1шт.

5

405863R91

CRANKSHAFT, w/bearings, std, consists of (1) bearing 367276R91, (1) bearing 332267R91, (1) bearing 367285R91, (4) bearing 375723R11, (1) crankshaft (NSS), (1) pin 398047R1

1шт.

6

NLS

NO LONGER SERVICED

(No longer available for service)

1шт.

7

367272R1

PINION

GEAR, crankshaft

1шт.

8

71763R2

DEFLECTOR

SLINGER, crankshaft oil

1шт.

9

398048R1

PULLEY

crankshaft

1шт.

10

70109R1

WASHER

starting crank nut

1шт.

11

219755

BACK-UP RING

crankshaft 1-14 hex. jam

1шт.

12

103462

KEY

3/16 x 1 Woodruff 13, pulley

1шт.

13

103462

KEY

3/16 x 1 Woodruff 13, crankshaft gear

1шт.

14

367276R91

BEARING LINER

BEARING ASSY, crankshaft front, 2 halves, std

1шт.

14

367300R91

CRANKSHAFT BEARING

BEARING ASSY, crankshaft front, 2 halves, .002 U/S

1шт.

14

376670R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .010 U/S

1шт.

14

376683R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .020 U/S

1шт.

14

367288R91

BEARING ASSY

ASSY, crankshaft front, 2 halves, .030 U/S

1шт.

15

332267R91

BEARING SET

BEARING ASSY, crankshaft intermediate rear, 2 halves, std

1шт.

15

332273R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .002 U/S

1шт.

15

332276R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .010 U/S

1шт.

15

332279R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .020 U/S

1шт.

15

332270R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .030 U/S

1шт.

16

367285R91

BEARING

ASSY, crankshaft rear, 2 halves, std

1шт.

16

367309R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .002 U/S

1шт.

16

376679R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .010 U/S

1шт.

16

376692R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .020 U/S

1шт.

16

367297R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .030 U/S

1шт.
