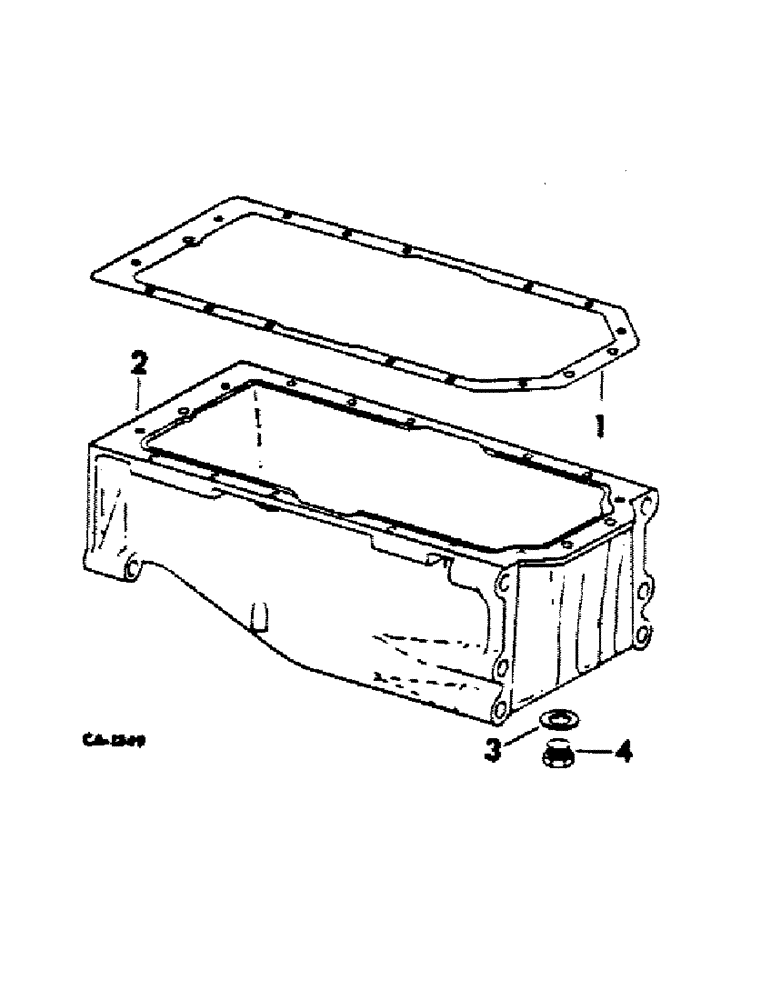

Запчасти Case IH C-157 (J-11) - CRANKCASE OIL PAN

1

405858R1

GASKET

oil pan

1шт.

2

405857R1

PAN

crankcase oil

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

9шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

17шт.

3

3405H

GASKET

drain plug

1шт.

4

445096

PLUG

7/8-18 hex-hd outside

1шт.
