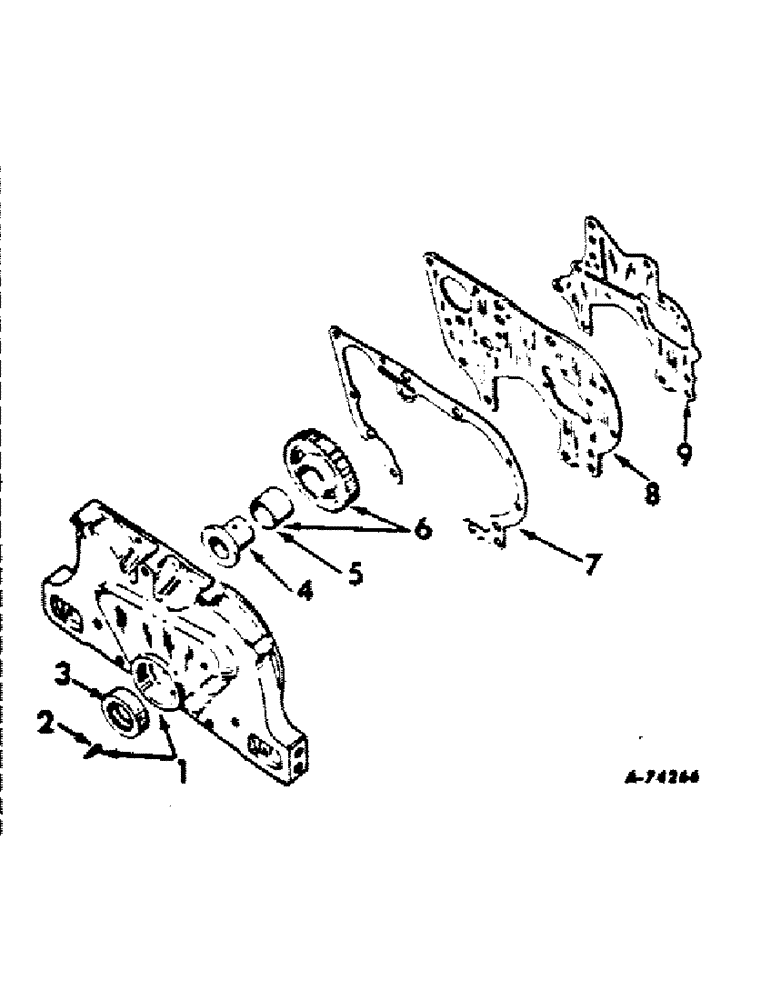

Запчасти Case IH C-157 (J-09) - CRANKCASE FRONT COVER AND IDLER GEAR

1

384488R31

COVER

ASSY, crankcase front, 2410B and 2412B tractors, 4500A and 4500B fork lifts

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

6шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 hex-hd cap

3шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap

2шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2-13 x 1-5/8 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

141223

DOWEL,5/16" x 1"

PIN, 5/16 x 1 dowel

1шт.

2

367572R1

INDICATOR

POINTER, timing

2шт.

3

391976R91

OIL SEAL

crankshaft oil

1шт.

4

530973R1

HOUSING

HUB, idler gear

1шт.

615090R1

WASHER

17/32 x 2 x 11 ga

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

5

398034R1

BUSHING

idler gear

1шт.

6

398032R1

PINION

GEAR ASSEMBLY, idler

1шт.

7

398085R1

GASKET

crankcase front cover

1шт.

8

398023R1

PLATE, crankcase front

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

9

398024R1

GASKET

crankcase front plate

1шт.
