Запчасти Case IH C-157 (J-08) - CRANKCASE AND RELATED PARTS

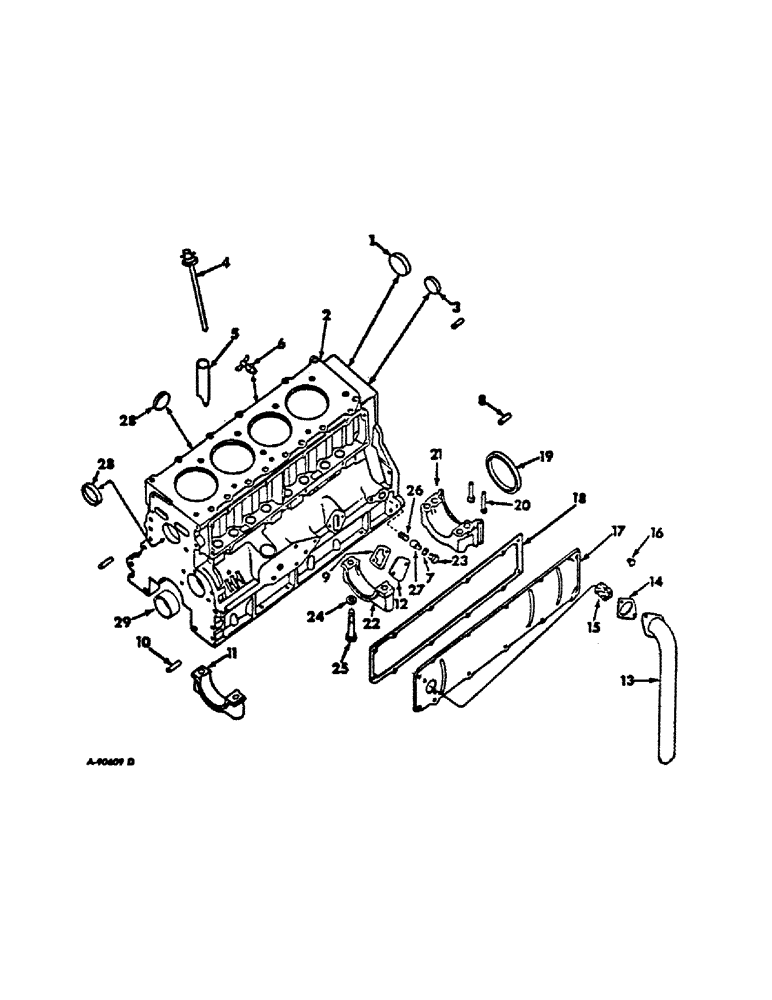

Схема запчастей Case IH C-157 - (J-08) - CRANKCASE AND RELATED PARTS
18
9
12
22
6
28
2
23
17
16
19
26
4
28
24
13
20
7
15
3
8
10
1
25
5
11
14
27
21
29

Артикул

Название

Примечание

Количество

1

20840R1

PLUG,Cup, 2", Stainless

stainless steel cup

1шт.

2

534615R91

CRANKCASE, w/pistons and rings

1шт.

Consists of (1) crankcase (NSS), (2) plug 444852, (1) plug 445671, (2) plug 444782, (5) plug 22263R1, (1) plug 20840R1, (3) bushing (NSS), (2) dowel 371699R2, (3) cap (NSS), (8) bolt 70133R1, (8) washer 58516H, (1) screw 271556, (4) piston (NSS), (1) pin 141285, (1) pin 141223, (1) plug 444618, (4) pin 367797R1, (8) retainer 367798R1, (4) ring 405851R1, (4) ring 405852R1, (4) ring 528804R1

1шт.

444852

TERMINAL CONNECTOR,16 - 20mm

PLUG, 1/8-27 auto hex-soc-hd

2шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

3/8-18 auto sq-soc pipe

2шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 CI auto sq-hd pipe

1шт.

1887Y

STUD, crankcase

1шт.

292947C1

STUD, crankcase

1шт.

3

22263R1

PLUG

core hole

1шт.

4

405875R1

GAUGE

ASSY, oil level, 454, 2400A, 2400B and 2405B tractors

1шт.

4

537372R1

GAUGE

ASSY, oil level, 2410B, 2412B tractors, 4500B fork lifts 2400A tractors w/cast I beam front axle

1шт.

5

378102R1

TUBE, oil filler, 454, 2400A, 2400B and 2405B tractors 1.187" OD, 3.66" Length

1шт.

5

381418R1

TUBE

oil filler, 2410B, 2412B tractors, 4500B fork lifts and 2400A tractors w/cast I beam front axle

1шт.

6

FO444618

PLUG

1/4-18 auto hex-hd pipe

1шт.

6

103647

VALVE

COCK, 1/4 drain

1шт.

7

399128R1

GASKET

oil pressure relief valve

1шт.

8

371699R2

STUD

DOWEL, engine rear support

2шт.

8

376353R1

DOWEL, engine rear support, .030 O/S

2шт.

9

532496R1

GASKET

fuel pump pad cover

1шт.

10

NLS

NO LONGER SERVICED

PIN, 1/2 x 1-1/4 dowel

1шт.

11

306671R1

CAP, crankshaft front bearing

1шт.

12

365243R1

COVER, fuel pump pad, 4500B fork lifts

1шт.

179814

SPACER

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

398041R2

PIPE ASSY, breather

1шт.

375612R91

CAPSCREW,1/4" - 20 x 1/2"

SCREW, w/washer, 1/4-20 x 1/2 slt-rd-hd

2шт.

14

375783R3

GASKET

breather pipe, will work for 375873R2

1шт.

15

349363R1

FILTER CARTRIDGE

ELEMENT, breather pipe

1шт.

16

375612R91

CAPSCREW,1/4" - 20 x 1/2"

SCREW, w/washer, 1/4-20 x 1/2 slt-truss-hd

12шт.

17

398037R2

COVER

valve push rod

1шт.

18

398040R2

GASKET

valve push rod cover

1шт.

19

538983R1

OIL SEAL,99.44mm ID x 116.03mm OD x 9.53mm Thk

crankshaft rear oil, replaces 403066R91

1шт.

20

310665R1

PLUG

rear bearing cap filler

2шт.

21

306674R1

CAP, crankshaft rear bearing

1шт.

22

306673R1

CYLINDER END CAP

CAP, crankshaft front bearing

1шт.

23

399129R1

PLUG

oil pressure relief valve

1шт.

24

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

bearing cap bolt

8шт.

25

70133R1

BOLT

BOLT, crankshaft bearing cap

8шт.

26

399126R1

SPRING

oil pressure relief valve

1шт.

27

399127R1

VALVE

oil pressure relief

1шт.

28

22263R1

PLUG

1-5/8 cup

4шт.

29

398019R1

BEARING,53.22mm ID x 56.52mm OD x 28.7mm W

BUSHING, camshaft front

1шт.

29

70262R1

CAMSHAFT BEARING,37.69mm ID x 41.45mm OD x 33.58mm W

BUSHING, camshaft rear

1шт.

29

70261R2

BUSHING,23.02mm ID x 55.92mm OD x 27.23mm L

camshaft center

1шт.

Выбрано товаров: 44
