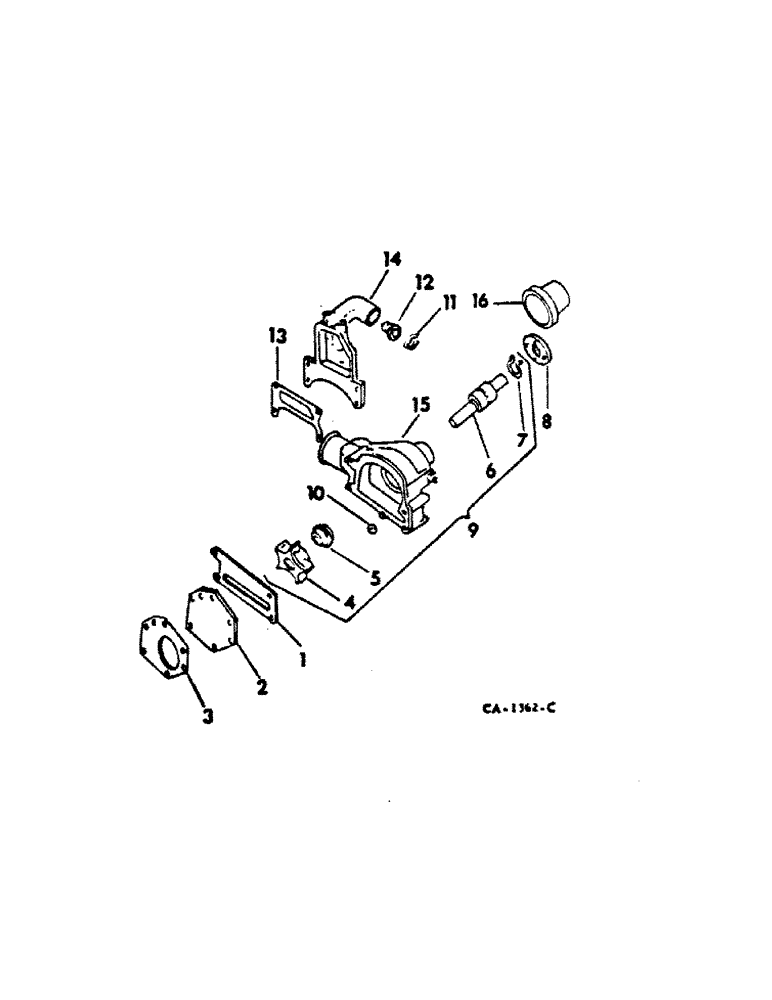

Запчасти Case IH C-157 (J-07) - WATER PUMP AND THERMOSTAT

1

397966R1

GASKET

water pump

1шт.

2

397967R1

PLATE

water pump

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

3

397968R1

GASKET

water pump plate

1шт.

4

367689R1

IMPELLER

water pump

1шт.

5

73296R93

SEAL

ASSEMBLY, water pump

1шт.

6

369147R91

SHAFT

AND BEARING, w/slinger, water pump, will work for ST644

1шт.

7

102069H

RING

RETAINER, bearing

1шт.

8

368501R2

HUB CAP

HUB, pulley

1шт.

9

400677R92

PUMP

ASSY, water

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

103026

NUT,3/8"-24, G5

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 CI auto sq-hd pipe heater inlet

1шт.

10

402928R1

SEAL

water by-pass

1шт.

11

23913R1

SNAP RING,1.625", Int, #162

Ring, Snap, , thermostat 1.625", Int, #162

1шт.

12

107596C1

THERMOSTAT

170 degree opening, replaces 377156R91 by also ordering ring, 23913R1 and washer, 107593C1

1шт.

107593C1

WASHER

WASHER, thermostat, used w/thermostat, 107596C1

1шт.

22277R1

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

1-7/16 x 1-5/8 x 3/32, used w/thermostat, 377156R91, will work for 298387R1

1шт.

13

397971R1

GASKET

water outlet elbow

1шт.

14

405853R1

ELBOW, water outlet

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 CI sq-hd auto pipe

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

15

NSS

NOT SOLD SEPARAT

BODY, not serviced separately

1шт.

16

527469R1

PULLEY

water pump, 454 and 2400A tractors

1шт.
