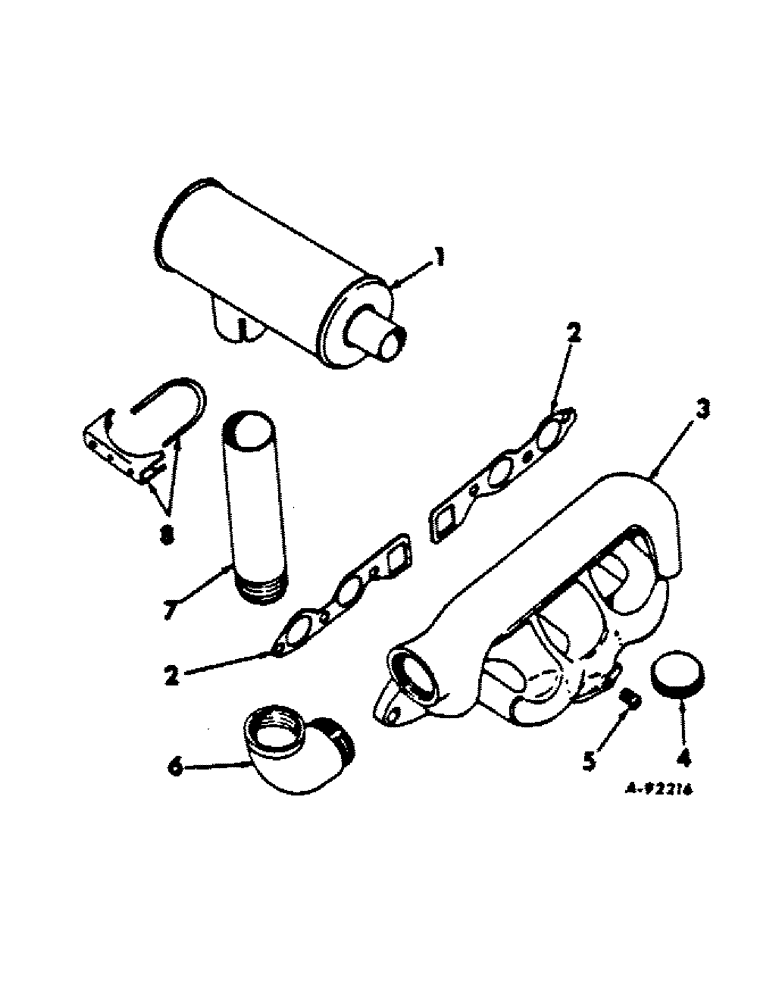

Запчасти Case IH C-153 (E-42) - EXHAUST SYSTEM, 210, 230, 275, 375 WINDROWERS AND 225 HAYSWATHERS

1

609924R91

MUFFLER

engine exhaust

1шт.

2

352014R3

GASKET

engine manifold

2шт.

3

377179R11

MANIFOLD

engine w/plug

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

6шт.

12215D

STUD

, Serial Range: carburetor-manifold

2шт.

103026

NUT,3/8"-24, G5

2шт.

103021

SCREW

WASHER, 3/8 med lock

2шт.

4

106645

PLUG, 1-1/2 soc-hd pipe manifold

1шт.

5

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8 sq-hd pipe, optional w/plug 445684

1шт.

5

445684

PLUG

1/8 sq-hd pipe, optional w/plug 445671

1шт.

6

218202

ELBOW,90 Degree, 1 1/2" NPT Street

1-1/2 90 deg pipe

1шт.

7

614442R1

NIPPLE, exhaust pipe

1шт.

8

170572R91

CLAMP

muffler

1шт.

120368

NUT,5/16"-24, G5

5/16-18 hex.

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
