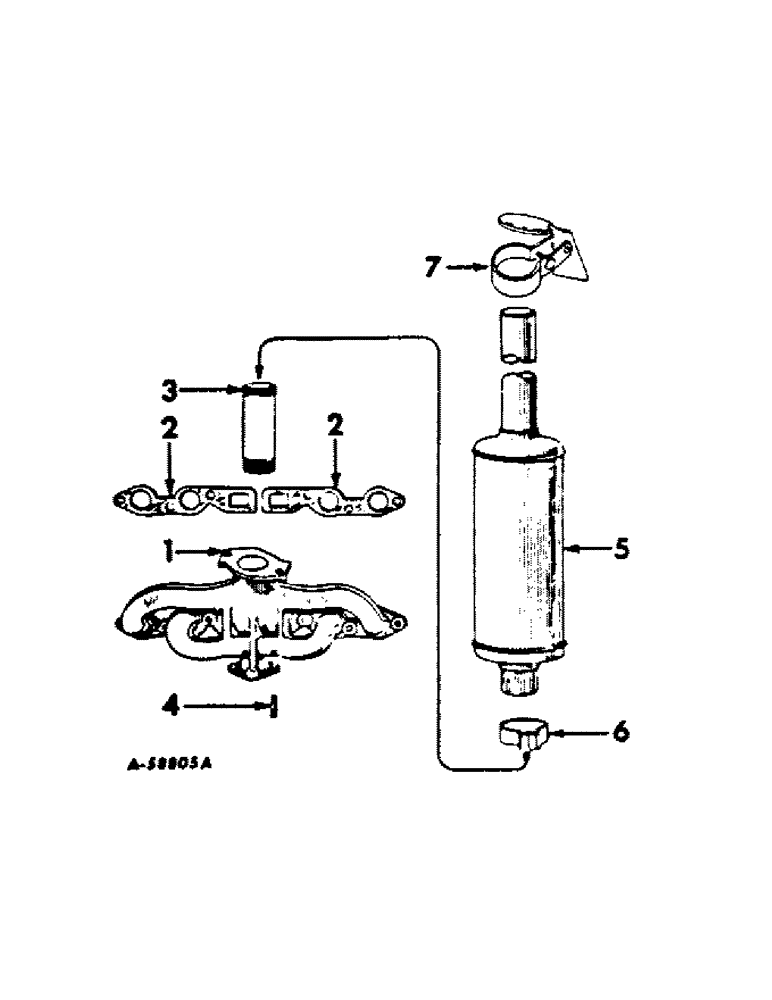

Запчасти Case IH C-153 (E-40) - EXHAUST SYSTEM, 444, 2444, 2444 LO-BOY TRACTORS & 4000 FORK LIFTS, TRACTORS W/VERTICAL EXHAUST

1

388584R21

MANIFOLD

w/plug, intake and exhuast

1шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto-sq-hd pipe, optional w/plug 445684

1шт.

445684

PLUG

1/8-27 auto-sq-hd pipe, optional w/plug 445671

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

6шт.

2

352014R3

GASKET

intake and exhaust manifold

2шт.

3

383007R1

PIPE

exhaust

1шт.

4

50705D

STUD

, Serial Range: carburetor-manifold

2шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

5

403825R1

MUFFLER

exhaust

1шт.

5

403825R1GV

MUFFLER

Value, Muffler

1шт.

6

403826R1

CLAMP

exhaust muffler

1шт.

93082H

NUT

exhaust muffler clamp

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, 3/8-24 x 1-1/2 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

403827R1

CAP

ASSY, exhaust

1шт.
