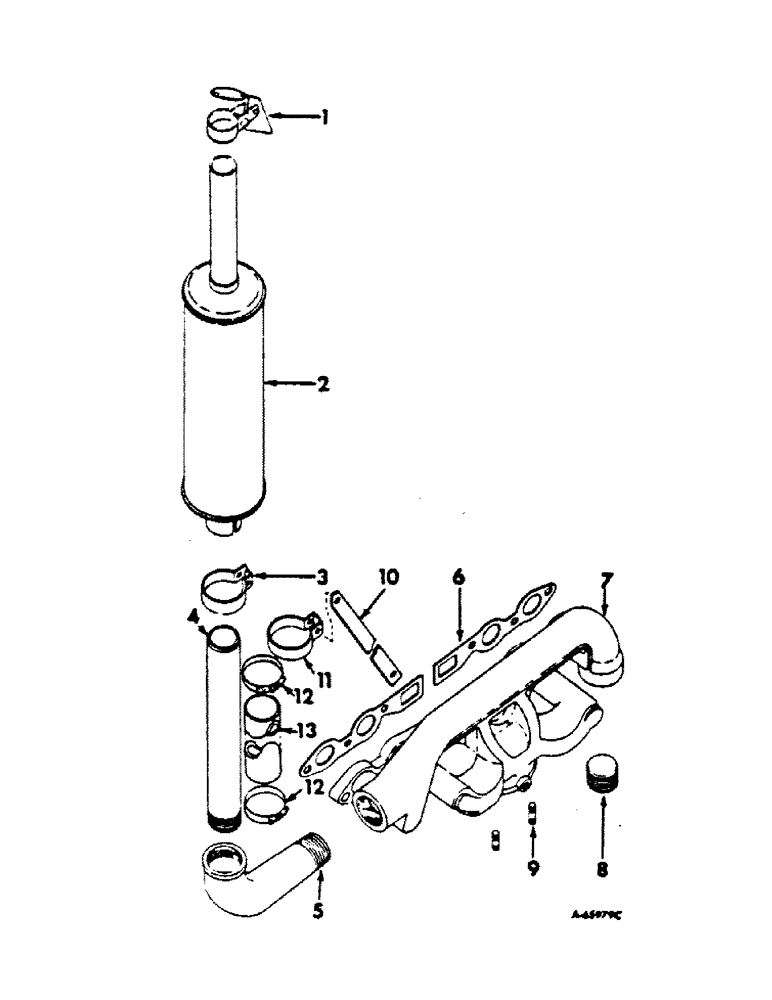

Запчасти Case IH C-153 (E-38) - EXHAUST SYSTEM, VERTICAL EXHAUST, 504, 2504, 3514 TRACTORS AND 2500 CONSTRUCTALL

1

403827R1

CAP

ASSY, exhaust, not used w/504, 2504 and 2500 constructall

1шт.

2

403825R1

MUFFLER

exhaust

1шт.

2

403825R1GV

MUFFLER

Value, Muffler

1шт.

3

403826R1

CLAMP

exhaust muffler

1шт.

93082H

NUT

exhaust pipe clamp

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, 3/8-24 x 1-1/2 hex-hd cap

1шт.

4

383007R1

PIPE

exhaust, 2500 Constructall

1шт.

4

369807R1

PIPE

exhaust, Farmall 504 tractors

1шт.

4

389923R11

PIPE, exhaust w/2 clamps, 39184H and sleeve, 389915R1, 3514 tractors

1шт.

5

377200R1

ELBOW

exhaust manifold outlet, International 504 and 2504, 2500 Constructall and 3514 tractors w/serial no. 24641 and below

1шт.

178736

BELT, TRANSMISSION

PIN, 5/32 x 3/4 type no. 3 groove

2шт.

5

377947R1

ELBOW

exhaust manifold outlet, Farmall 504 and 3514 tractors w/serial no. 24462 and above

1шт.

6

352014R3

GASKET

intake and exhaust manifold

2шт.

7

377179R11

MANIFOLD

W/PLUG, intake and exhaust

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

6шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto. sq-hd pipe, optional w/plug 445684

1шт.

445684

PLUG

1/8-27 auto-sq-hd pipe, optional w/plug 445671

1шт.

7

377181R11

MANIFOLD W/PLUG, intake and exhaust, 504 and 2504 LP gas tractors

1шт.

8

20976R1

PLUG

1-1/2 auto sq-soc-hd pipe

1шт.

9

12215D

STUD

carburetor

2шт.

103026

NUT,3/8"-24, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

393457R1

SPACE, exhaust pipe, Farmall 504 tractors with serial no. 13230 and above, International, 504, 2504 tractors with serial no. 13844 and above, 3514 tractors and 2500 Constructall

1шт.

11

372102R1

CLAMP, exhaust pipe brace, Farmall 504 tractors with serial no. 13230 and above, International 504, 2504 tractors with serial no. 13844 and above, and 2500 Constructall

1шт.

11

369906R1

CLAMP, exhaust pipe brace, 3514 tractors

1шт.

102635

NUT,3/8"-16, G5

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, exhaust pipe, Farmall 504 LP gas tractors

1шт.

12

39184H

CLAMP

exhaust pipe sleeve, 3514 tractors

2шт.

13

375561R2

SLEEVE

exhaust pipe asbestos, 3514 tractors

1шт.

13

389915R1

SLEEVE, exhaust pipe, Farmall 504 LP gas tractors

1шт.
