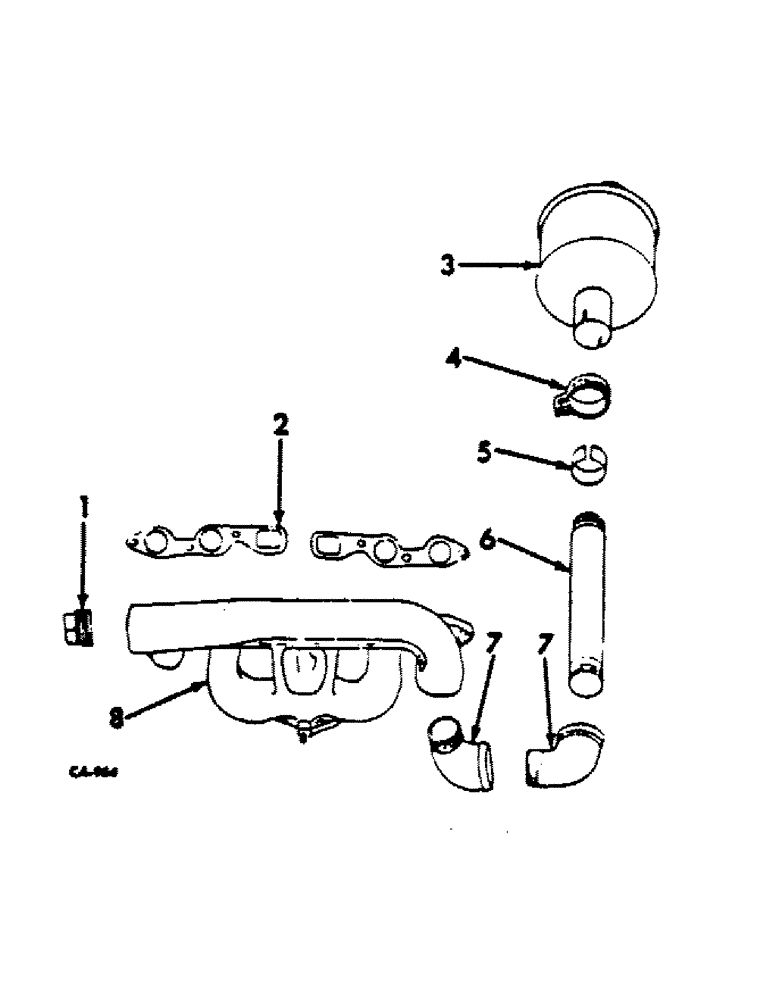

Запчасти Case IH C-153 (E-37) - EXHAUST SYSTEM, 93, 105 AND 203 COMBINES

1

106645

PLUG, 1-1/2 in. sq-soc-hd pipe

1шт.

2

352014R3

GASKET

intake and exhaust manifold

2шт.

3

305469R91

MUFFLER

exhaust, 203 combines

1шт.

3

607022R91

MUFFLER

exhaust, 93 and 105 combines

1шт.

4

357758R1

CLAMP, exhaust muffler, 93 and 203 combines

1шт.

181428

BOLT,Hex, 1/2" - 20 x 1 1/8", Gr 5

SCREW, 1/2-20 x 1-1/8 hex-hd cap

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

170572R91

CLAMP

exhaust muffler, 105 combine

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

611437R1

SPACER

exhaust pipe, 93 and 203 combine

1шт.

6

614442R1

PIPE, exhaust

1шт.

7

218202

ELBOW,90 Degree, 1 1/2" NPT Street

exhaust pipe

2шт.

8

377179R11

MANIFOLD

W/PLUG ASSY, intake and exhaust

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

6шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8 sq-hd pipe, optional w/plug 445684

1шт.

445684

PLUG

1/8 sq-hd pipe, optional w/plug 445671

1шт.
