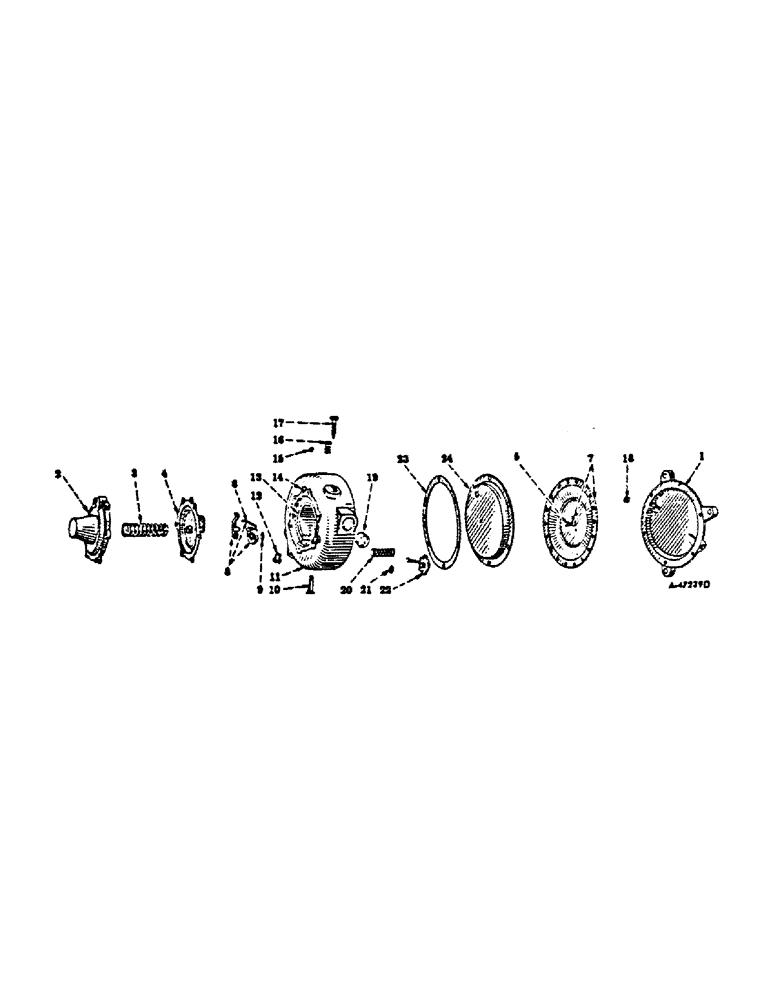

Запчасти Case IH C-153 (E-31) - FUEL REGULATOR, 504 TRACTORS WITH LP GAS ENGINES

NLS

NO LONGER SERVICED

REGULATOR ASSY, fuel, Farmall tractors, discontinued for service

1шт.

NLS

NO LONGER SERVICED

REGULATOR ASSY, fuel, International tractors, discontinued for service

1шт.

1

311997R1

PLATE, back cover support

1шт.

174939

SCREW, 10-32 x 9/16 cd or zn-pltd slt-fil-hd mach

6шт.

131183

WASHER, no. 10 cd or zn-pltd light lock

6шт.

2

394668R1

COVER, pressure regulator, replaces 64409D and 64411D

1шт.

174939

SCREW, 10-32 x 9/16 cd or zn-pltd slt-fil-hd mach

6шт.

131183

WASHER, no. 10 cd or zn-pltd light lock

6шт.

3

64410D

SPRING, pressure regulator

1шт.

4

64407D

DIAPHRAGM

DIAPHRAM, pressure regulator

1шт.

5

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

6

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

7

NLS

NO LONGER SERVICED

(Discontinued of service)

1шт.

8

NLS

NO LONGER SERVICED

(Discontinued of service)

1шт.

17093R91

SCREW W/SPRING LOCK WASHER, 8-32 x 1/2 C-Z slt-fil-hd mach

2шт.

9

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, High pressure valve

1шт.

10

113434R91

STRAINER, fuel inlet

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING, regulator, not serviced separately, order regulator assy

1шт.

12

444814

PLUG,Hex Hd, 1/8"-27, Brass

1/8 brass hex-hd pipe

1шт.

13

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

14

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

15

64435D

SCREW, bleed

1шт.

16

14526D

SPRING, idle adj screw retainer

1шт.

17

37179D

SCREW, idle adjusting

1шт.

18

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1/8 brass slt-hdls pipe

1шт.

19

115712

PLUG,Slotted, 1/2" NPT

1/2 brass slt-hdls pipe

2шт.

20

64420D

SPRING, low pressure valve

1шт.

21

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Low pressure valve

1шт.

22

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

17093R91

SCREW, w/lock washer, 8-32 x 1/2 CD or zn-pltd light lock

6шт.

2

394668R1

COVER, pressure regulator, replaces 64409D and 64411D

1шт.

174939

SCREW, 10-32 x 9/16 CD or zn-pltd slt-fil-hd mach

6шт.

131183

WASHER, no. 10 CD or zn-pltd light lock

6шт.

3

64410D

SPRING, pressure regulator

1шт.

4

64407D

DIAPHRAGM

DIAPHRAM, pressure regulator

1шт.

5

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

6

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

7

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

8

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

17093R91

SCREW W/SPRING LOCK WASHER, 8-32 x 1/2 C-Z slt-fil-hd mach

2шт.

9

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, High pressure valve

1шт.

10

113434R91

STRAINER, fuel inlet

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING, regulator, not serviced separately, order regulator assy

1шт.

12

444814

PLUG,Hex Hd, 1/8"-27, Brass

1/8 brass hex-hd pipe

1шт.

13

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

14

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

15

64435D

SCREW, bleed

1шт.

16

14526D

SPRING, idle adj screw retainer

1шт.

17

37179D

SCREW, idle adjusting

1шт.

18

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1/8 brass slt-hdls pipe

1шт.

19

115712

PLUG,Slotted, 1/2" NPT

1/2 brass slt-hdls pipe

2шт.

20

64420D

SPRING, low pressure valve

1шт.

21

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Low pressure valve

1шт.

22

NLS

NO LONGER SERVICED

(Discontinued for service)

1шт.

17093R91

SCREW W/LOCK WASHER, 8-32 x 1/2 CD or zn-pltd slt-fil-hd mach

2шт.

23

359604R1

GASKET, partition plate

1шт.

24

359603R1

PLATE, partition

1шт.

373173R1

SNAP RING,0.812", Int, #81

Ring, Snap, 0.812", Int, #81

1шт.
